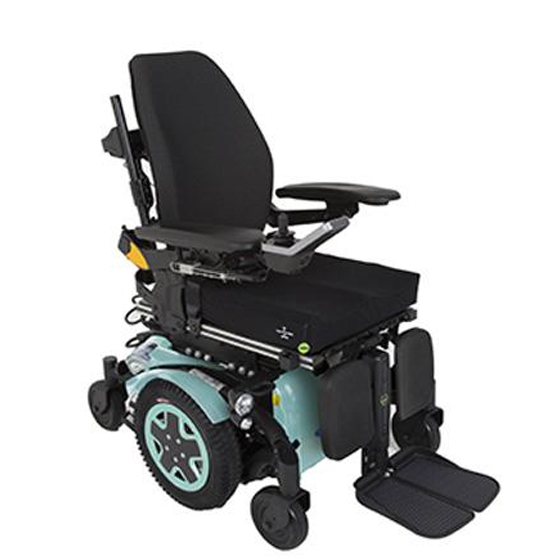

Invacare TDX SP2
The Invacare TDX SP2 boasts a superior ride experience and
outstanding manoeuvrability as well as a stylish new look. Now
available in 7 colours, this model retains its already loved features, but
has been improved. The TDX SP2 means that customers can enjoy
speedy, secure mobility thanks to its powerful drive mode.
outstanding manoeuvrability as well as a stylish new look. Now
available in 7 colours, this model retains its already loved features, but
has been improved. The TDX SP2 means that customers can enjoy
speedy, secure mobility thanks to its powerful drive mode.
Classification
12 23 06 08 - Powered wheelchairs, powered steering, class B (for indoor and outdoor use)
BrochureThe product series contains 2 products.
Product 1 of 2
Invacare TDX SP2 (30)
HMI-no.
85205
Article-no.
konfigurerbar
Registration date
06-10-2014
Last updated
05-12-2023
Properties
Intended for children
Yes
Products for children must comply with the specific demands for safety as stated in certain standards. It is the supplier of the product who has stated that the product is intended for children. The National Board of Social Services holds no responsibility in relation to this assessment.
Programmable
Yes

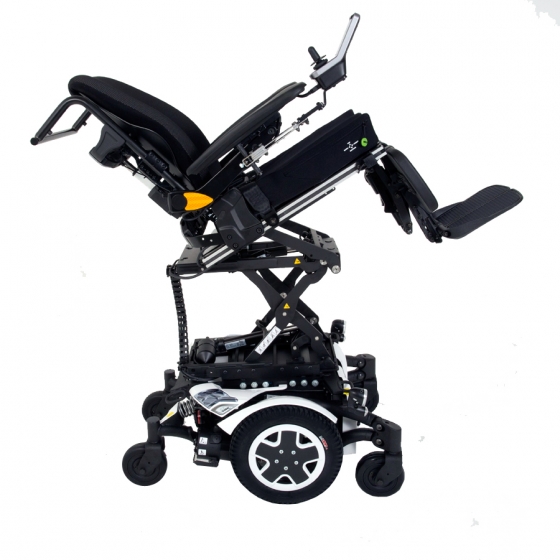

Elevating seat
Yes
Powered recline
Yes
Powered tilt
Yes
Powered legrests
Yes
Optional motorized attendant control
Yes
Suspension
Yes
Front-wheel-driven
No
Mid-wheel-driven
Yes
Rear-wheel-driven
No
Can be used as seat in a car
Yes
Measures
User weight, max
180
kg
External width
65
cm
Measured where widest
External length
116
cm
Maximum external length with the seat in an upright position. Measured without leg supports
Weight
154
kg
Speed, max
12
km/t
Driving distance range, fully charged
41
km
The theoretical driving distance range as calculated through laboratory testing.
Seat height, min
42
cm
The vertical distance between the floor and the seat surface measured at the front edge of the seat. Measured with the seat in the lowest position.
Seat height, max
72
cm
The vertical distance between the floor and the seat surface measured at the front edge of the seat. Measured with the seat in the highest position.
Back rest recline, max
30
°
Recline of back rest from an upright position.
Tilt-in-space forward
0
°
Measured from the horizontal position.
Tilt-in-space back
30
°
Measured from the horizontal position.
Ground clearance
7.5
cm
Turning diameter
112
cm
Slope, max
9
°
Climbs obstacles of max
7.5
cm
Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type
EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device
CE marked according to other specific regulations/directives (e.g. machinery, construction products, low voltage)
CE marked according to other specific regulations/directives (e.g. machinery, construction products, low voltage)
Product 2 of 2
Invacare TDX SP2 (45)
HMI-no.
121165
Article-no.
konfigurerbar
Registration date
24-01-2020
Last updated
05-12-2023
Properties
Intended for children
Yes
Products for children must comply with the specific demands for safety as stated in certain standards. It is the supplier of the product who has stated that the product is intended for children. The National Board of Social Services holds no responsibility in relation to this assessment.
Programmable
Yes
Elevating seat
No
Powered recline
Yes
Powered tilt
Yes
Powered legrests
Yes
Optional motorized attendant control
Yes
Suspension
Yes
Front-wheel-driven
No
Mid-wheel-driven
Yes
Rear-wheel-driven
No
Can be used as seat in a car
Yes
Measures
User weight, max
150
kg
External width
65
cm
Measured where widest
External length
116
cm
Maximum external length with the seat in an upright position. Measured without leg supports
Weight
154
kg
Speed, max
12
km/t
Driving distance range, fully charged
41
km
The theoretical driving distance range as calculated through laboratory testing.
Seat height, min
42
cm
The vertical distance between the floor and the seat surface measured at the front edge of the seat. Measured with the seat in the lowest position.
Seat height, max
72
cm
The vertical distance between the floor and the seat surface measured at the front edge of the seat. Measured with the seat in the highest position.
Back rest recline, max
30
°
Recline of back rest from an upright position.
Tilt-in-space forward
0
°
Measured from the horizontal position.
Tilt-in-space back
45
°
Measured from the horizontal position.
Ground clearance
7.5
cm
Turning diameter
112
cm
Slope, max
9
°
Climbs obstacles of max
7.5
cm
Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type
EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device
CE marked according to other specific regulations/directives (e.g. machinery, construction products, low voltage)
CE marked according to other specific regulations/directives (e.g. machinery, construction products, low voltage)
