W5 SL

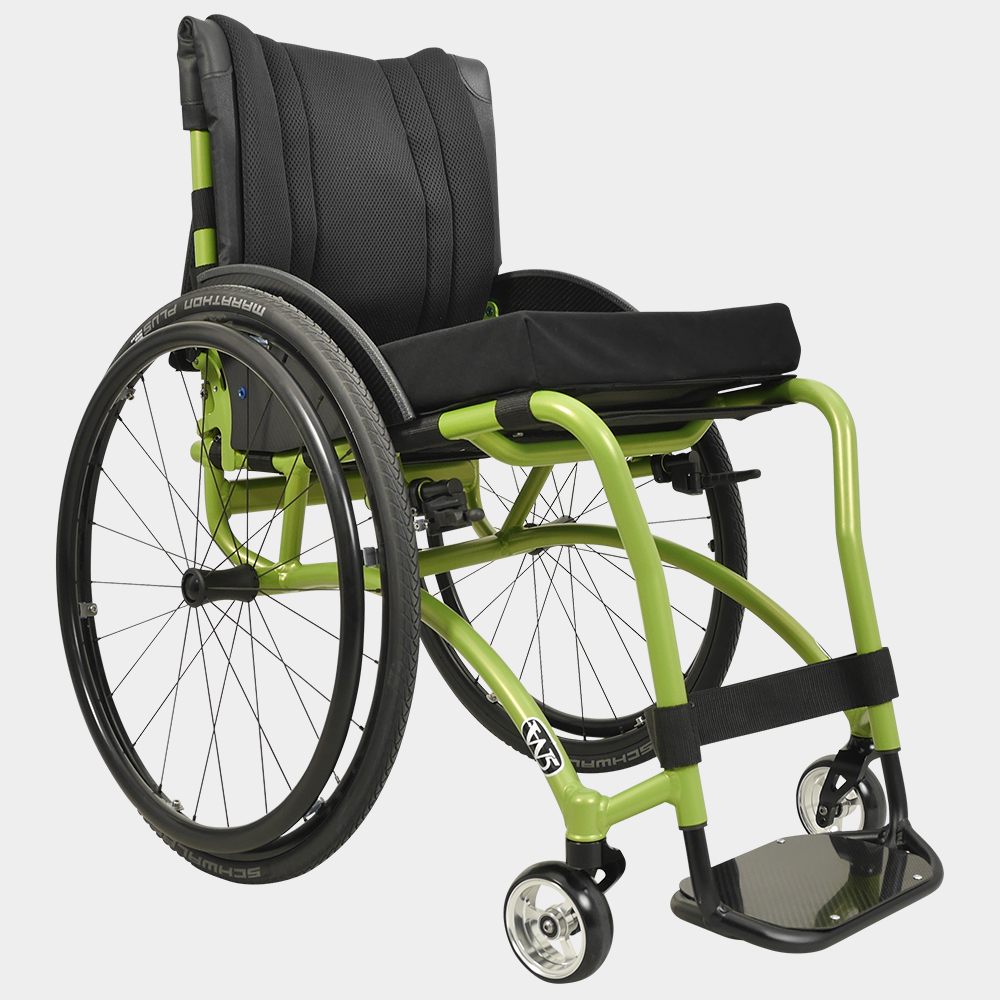

Custom-fabricated active wheelchair for the routined user. ADL W5 Super Light has lighter and narrower frame tubes. This reduces weight whilst giving an elegant look.
Extremely high stability and low weight. Anodised frame, highly impact, scratch and corrosion resistant. Different base models to choose from.

Classification
12 22 03 14 - Manual wheelchairs with rigid frame, customized

Documents
Brochure
User manual
Spare part catalogue


The product series contains 5 products.

» Summarize specifications

Product 1 of 5
W5 SL, Custom


HMI-no.
85461
Article-no.
111000005000

Registration date
07-11-2014
Last updated
11-09-2025

Properties
Number of wheels
4
Adjustable seat angle
No
Balance point adjustable
No
Available with hard base
Yes
As opposed to sling seat
Back rest angle adjustable
No
Height adjustable back rest
No
Push handles
Yes
Front-wheel-driven
No
Intended for fastening in a car
No

Measures
User weight, max
80
kg
Seat height, min
30
cm
Seat height, max
32
cm
Back rest height, min
25
cm
Back rest height, max
50
cm
Total width
55
cm
Total length
73.5
cm
Weight
6
kg
The stated weight of the wheelchair is incl. wheels and leg supports.
Seat width, min
20
cm
Seat width, max
60
cm
Seat depth, min
25
cm
Seat depth, max
50
cm

Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type

EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device

Product 2 of 5
W5 SL, SB 36 cm


HMI-no.
85447
Article-no.
111000005000

Registration date
05-11-2014
Last updated
11-09-2025

Properties
Number of wheels
4
Adjustable seat angle
No
Balance point adjustable
No
Available with hard base
Yes
As opposed to sling seat
Back rest angle adjustable
No
Height adjustable back rest
No
Push handles
Yes
Front-wheel-driven
No
Intended for fastening in a car
No

Measures
User weight, max
80
kg
Seat height, min
30
cm
Seat height, max
32
cm
Back rest height, min
25
cm
Back rest height, max
50
cm
Total width
51
cm
Total length
73
cm
Weight
6
kg
The stated weight of the wheelchair is incl. wheels and leg supports.
Seat width, min
36
cm
Seat width, max
36
cm
Seat depth, min
25
cm
Seat depth, max
50
cm

Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type

EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device

Product 3 of 5
W5 SL, SB 38 cm


HMI-no.
85448
Article-no.
111000005000

Registration date
05-11-2014
Last updated
11-09-2025

Properties
Number of wheels
4
Adjustable seat angle
No
Balance point adjustable
No
Available with hard base
Yes
As opposed to sling seat
Back rest angle adjustable
No
Height adjustable back rest
No
Push handles
Yes
Front-wheel-driven
No
Intended for fastening in a car
No

Measures
User weight, max
80
kg
Seat height, min
30
cm
Seat height, max
32
cm
Back rest height, min
25
cm
Back rest height, max
50
cm
Total width
53
cm
Total length
73.5
cm
Weight
6
kg
The stated weight of the wheelchair is incl. wheels and leg supports.
Seat width, min
38
cm
Seat width, max
38
cm
Seat depth, min
25
cm
Seat depth, max
50
cm

Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type

EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device

Product 4 of 5
W5 SL, SB 40 cm


HMI-no.
85449
Article-no.
111000005000

Registration date
05-11-2014
Last updated
11-09-2025

Properties
Number of wheels
4
Adjustable seat angle
No
Balance point adjustable
No
Available with hard base
Yes
As opposed to sling seat
Back rest angle adjustable
No
Height adjustable back rest
No
Push handles
Yes
Front-wheel-driven
No
Intended for fastening in a car
No

Measures
User weight, max
80
kg
Seat height, min
30
cm
Seat height, max
32
cm
Back rest height, min
25
cm
Back rest height, max
50
cm
Total width
55
cm
Total length
73.5
cm
Weight
6
kg
The stated weight of the wheelchair is incl. wheels and leg supports.
Seat width, min
40
cm
Seat width, max
40
cm
Seat depth, min
25
cm
Seat depth, max
50
cm

Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type

EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device

Product 5 of 5
W5 SL, SB 42 cm


HMI-no.
85450
Article-no.
111000005000

Registration date
05-11-2014
Last updated
11-09-2025

Properties
Number of wheels
4
Adjustable seat angle
No
Balance point adjustable
No
Available with hard base
Yes
As opposed to sling seat
Back rest angle adjustable
No
Height adjustable back rest
No
Push handles
Yes
Front-wheel-driven
No
Intended for fastening in a car
No

Measures
User weight, max
80
kg
Seat height, min
30
cm
Seat height, max
32
cm
Back rest height, min
25
cm
Back rest height, max
50
cm
Total width
57
cm
Total length
73.5
cm
Weight
6
kg
The stated weight of the wheelchair is incl. wheels and leg supports.
Seat width, min
42
cm
Seat width, max
42
cm
Seat depth, min
25
cm
Seat depth, max
50
cm

Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type

EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device
