F5 Corpus VS R-net

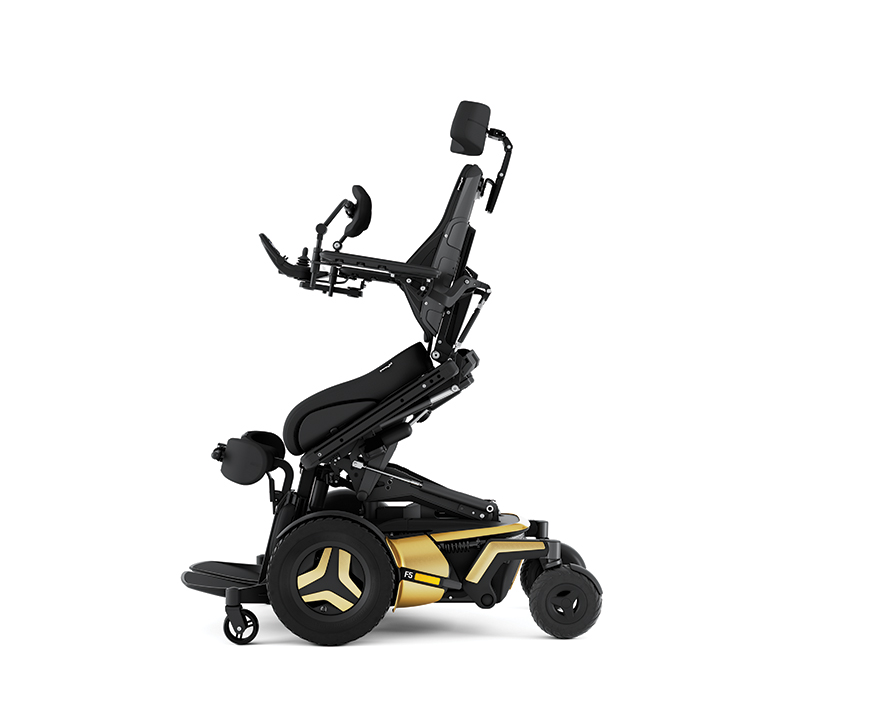

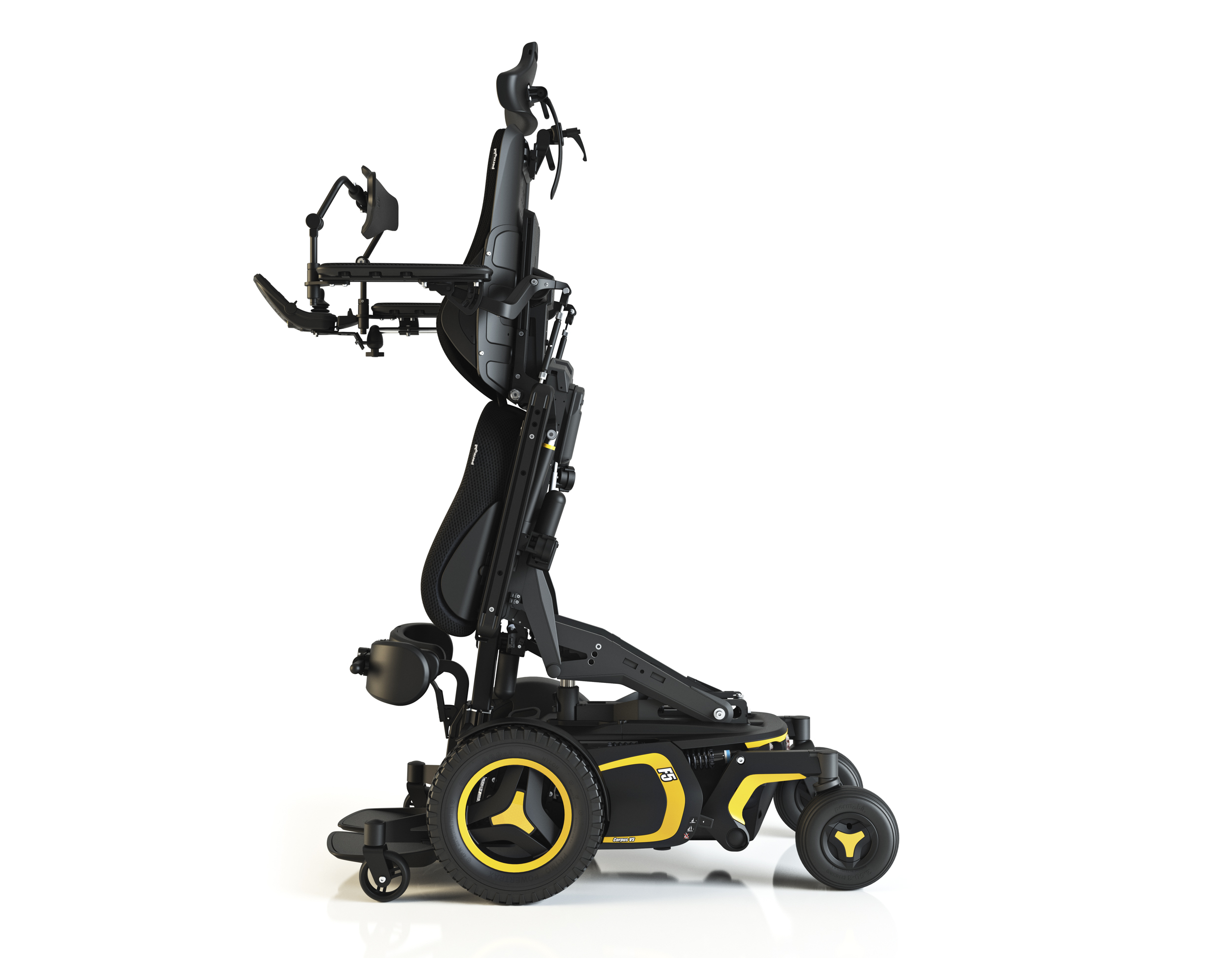

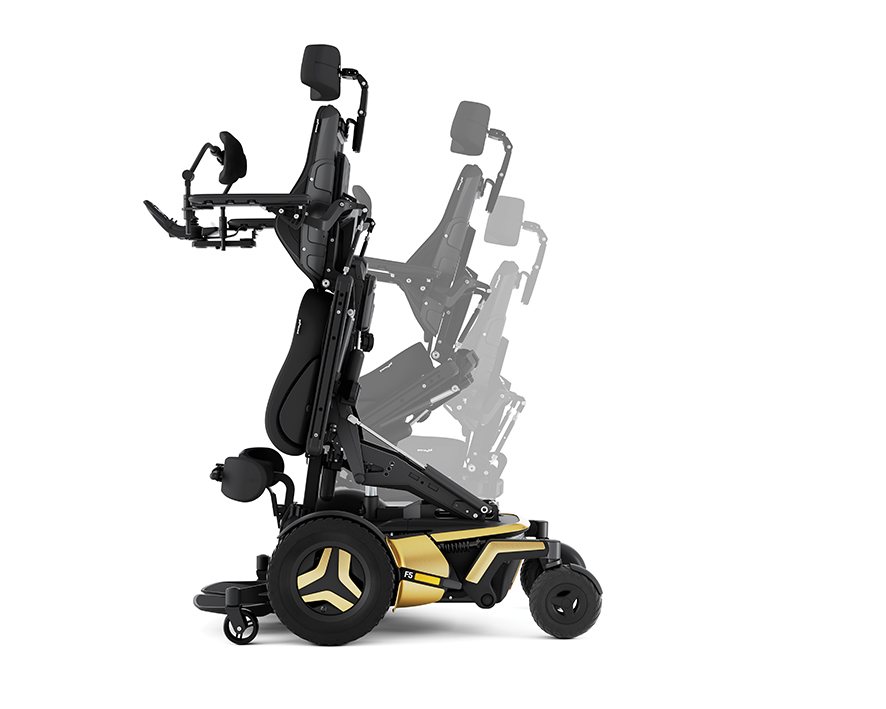

F5 Corpus VS is a strong and stable wheelchair with a standing function up to 80. On the PP version, all advanced seat functions incl. the standing function and driving parameters are set with the QuickConfig app based on individual needs. Pivoting knee supports with an easily accessible release mechanism are easily moved for transfer.
Classification
12 23 06 08 - Powered wheelchairs, powered steering, class B (for indoor and outdoor use)
Documents
The product series contains 2 products.
Product 1 of 2
F5 Corpus VS R-net PP
HMI-no.
137504
Article-no.
108851-99-0
Registration date
21-07-2023
Last updated
21-11-2023
Properties
Intended for children
Yes
Products for children must comply with the specific demands for safety as stated in certain standards. It is the supplier of the product who has stated that the product is intended for children. The National Board of Social Services holds no responsibility in relation to this assessment.
Programmable
Yes
Elevating seat
Yes
Powered recline
Yes
Powered tilt
Yes
Powered legrests
Yes
Optional motorized attendant control
Yes
Suspension
Yes
Front-wheel-driven
Yes
Mid-wheel-driven
No
Rear-wheel-driven
No
Can be used as seat in a car
Yes
Measures
User weight, max
136
kg
External width
65
cm
Measured where widest
External length
98
cm
Maximum external length with the seat in an upright position. Measured without leg supports
Weight
206
kg
Speed, max
12
km/t
Driving distance range, fully charged
40
km
The theoretical driving distance range as calculated through laboratory testing.
Seat height, min
45
cm
The vertical distance between the floor and the seat surface measured at the front edge of the seat. Measured with the seat in the lowest position.
Seat height, max
80
cm
The vertical distance between the floor and the seat surface measured at the front edge of the seat. Measured with the seat in the highest position.
Back rest recline, max
180
°
Recline of back rest from an upright position.
Tilt-in-space forward
45
°
Measured from the horizontal position.
Tilt-in-space back
50
°
Measured from the horizontal position.
Ground clearance
8
cm
Turning diameter
120
cm
Slope, max
12
°
Climbs obstacles of max
7.5
cm
Test information
No information about tests according to standards ![info](/en/img/i.svg)
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type
EU product safety regulation ![info](/en/img/i.svg)
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device
Product 2 of 2
F5 Corupus VS R-net
HMI-no.
86782
Article-no.
108400-99-0
Registration date
10-02-2015
Last updated
21-11-2023
Properties
Intended for children
Yes
Products for children must comply with the specific demands for safety as stated in certain standards. It is the supplier of the product who has stated that the product is intended for children. The National Board of Social Services holds no responsibility in relation to this assessment.
Programmable
Yes
Elevating seat
Yes
Powered recline
Yes
Powered tilt
Yes
Powered legrests
Yes
Optional motorized attendant control
Yes
Suspension
Yes
Front-wheel-driven
Yes
Mid-wheel-driven
No
Rear-wheel-driven
No
Can be used as seat in a car
Yes
Measures
User weight, max
136
kg
External width
65
cm
Measured where widest
External length
98
cm
Maximum external length with the seat in an upright position. Measured without leg supports
Weight
196
kg
Speed, max
12
km/t
Driving distance range, fully charged
35
km
The theoretical driving distance range as calculated through laboratory testing.
Seat height, min
45
cm
The vertical distance between the floor and the seat surface measured at the front edge of the seat. Measured with the seat in the lowest position.
Seat height, max
80
cm
The vertical distance between the floor and the seat surface measured at the front edge of the seat. Measured with the seat in the highest position.
Back rest recline, max
180
°
Recline of back rest from an upright position.
Tilt-in-space forward
45
°
Measured from the horizontal position.
Tilt-in-space back
50
°
Measured from the horizontal position.
Ground clearance
8
cm
Turning diameter
120
cm
Slope, max
12
°
Climbs obstacles of max
7.5
cm
Test information ![info](/en/img/i.svg)
Though the product is testet, it might not have passed all requirements in the standard. Besides, some products are only tested according to parts of the standard. Read the test report for detailed information. See also other standards that could be relevant for this product type.
EN 12182:1999: Technical aids for disabled persons - General requirements and test methods.
Test lab: TÜV SÜD Product Service GmbH. Test date: 17-11-2014
Test report for HMI-no. 86782
: Tested according to other national or international standard.
Test lab: TOV SÜD Product Service GmbH. Test date: 17-11-2014
Test report for HMI-no. 86782
Test lab: TÜV SÜD Product Service GmbH. Test date: 17-11-2014
: Tested according to other national or international standard.
Test lab: TOV SÜD Product Service GmbH. Test date: 17-11-2014
EU product safety regulation ![info](/en/img/i.svg)
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device
