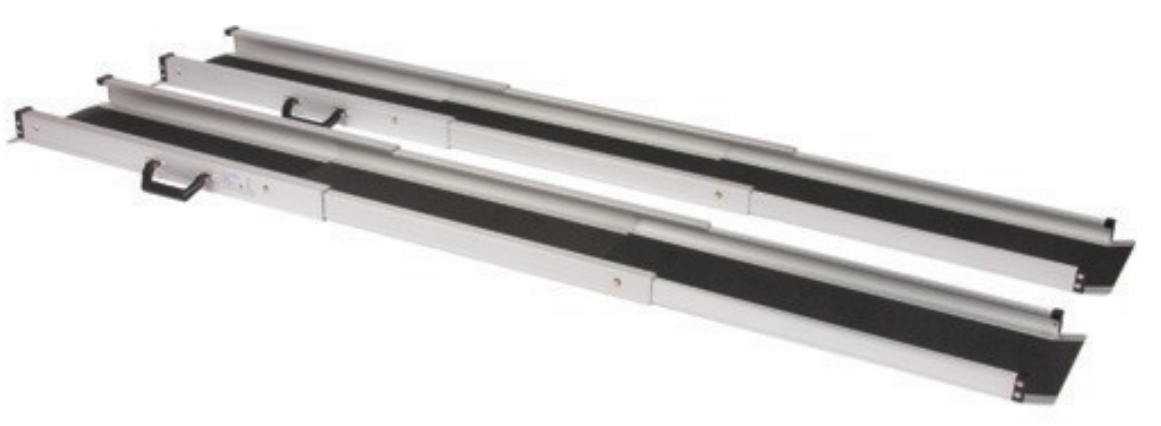

Telescopic access rampe with two rails, available in two lengths
Mobile access rampe with two rails. Each rail consist of 3 sections which can be staggered in or out. The ramp is equipped with a lock that keeps the rails fixed in open or closed condition. The rails has a slip-resistant surface. Furthermore, it is delivered with a convenient travelling case.
The ramp is availble in two lengths: 150 and 210 cm.
The ramp is availble in two lengths: 150 and 210 cm.
Classification
18 30 15 08 - Track ramps
Documents
Video
Play videoThe product series contains 2 products.
Product 1 of 2
Telescopic access rampe with two rails, 150 cm.
HMI-no.
Article-no.
LR-150
Registration date
24-03-2015
Last updated
21-11-2023
Properties
Foldable
No
Length adjustable
Yes
Non-slip surface
Yes
Indoor use
Yes
Outdoor use
Yes
Lip, top
Yes
Lip, bottom
Yes
Carrying handle
Yes
Measures
Load, max
180
kg
For both track ramps and ramps please state the allowed load pr. item.
Weight
3
kg
Weight per track
Actual length in use, min
150
cm
The minimum length in use of the track excluding lips
Actual length in use, max
150
cm
The maximum length in use of the track excluding lips
Transportation length
80
cm
Transportation width
14
cm
Internal width
11
cm
External width
16
cm
Guardrail height
3
cm
Test information
Though the product is testet, it might not have passed all requirements in the standard. Besides, some products are only tested according to parts of the standard. Read the test report for detailed information. See also other standards that could be relevant for this product type.
EN 12182:2012: Assistive products for persons with disability - General requirements and test methods.
Test lab: Centre for Testing and Certification Mesh-Test 05-077 Warszawa We. Test date: 05-12-2016
Test report for HMI-no. 41058
Test lab: Centre for Testing and Certification Mesh-Test 05-077 Warszawa We. Test date: 05-12-2016
Test report for HMI-no. 41058EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device
Product 2 of 2
Telescopic access rampe with two rails, 210 cm.
HMI-no.
Article-no.
LR-210
Registration date
24-03-2015
Last updated
21-11-2023
Properties
Foldable
No
Length adjustable
Yes
Non-slip surface
Yes
Indoor use
Yes
Outdoor use
Yes
Lip, top
Yes
Lip, bottom
Yes
Carrying handle
Yes
Measures
Load, max
180
kg
For both track ramps and ramps please state the allowed load pr. item.
Weight
4
kg
Weight per track
Actual length in use, min
210
cm
The minimum length in use of the track excluding lips
Actual length in use, max
210
cm
The maximum length in use of the track excluding lips
Transportation length
100
cm
Transportation width
14
cm
Internal width
11
cm
External width
16
cm
Guardrail height
3
cm
Test information
Though the product is testet, it might not have passed all requirements in the standard. Besides, some products are only tested according to parts of the standard. Read the test report for detailed information. See also other standards that could be relevant for this product type.
EN 12182:2012: Assistive products for persons with disability - General requirements and test methods.
Test lab: Centre for Testing and Certification Mesh-Test 05-077 Warszawa We. Test date: 05-12-2016Test report for HMI-no. 41059
Test lab: Centre for Testing and Certification Mesh-Test 05-077 Warszawa We. Test date: 05-12-2016
Test report for HMI-no. 41059EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device
