RCN bade-/toiletsol DR 100 PPG

RCN bade-/toiletsol DR 100 PPG

Classification
09 12 03 07 - Commode shower chairs with castors, not height adjustable

Documents
Brochure


The product series contains 1 product.

Product 1 of 1

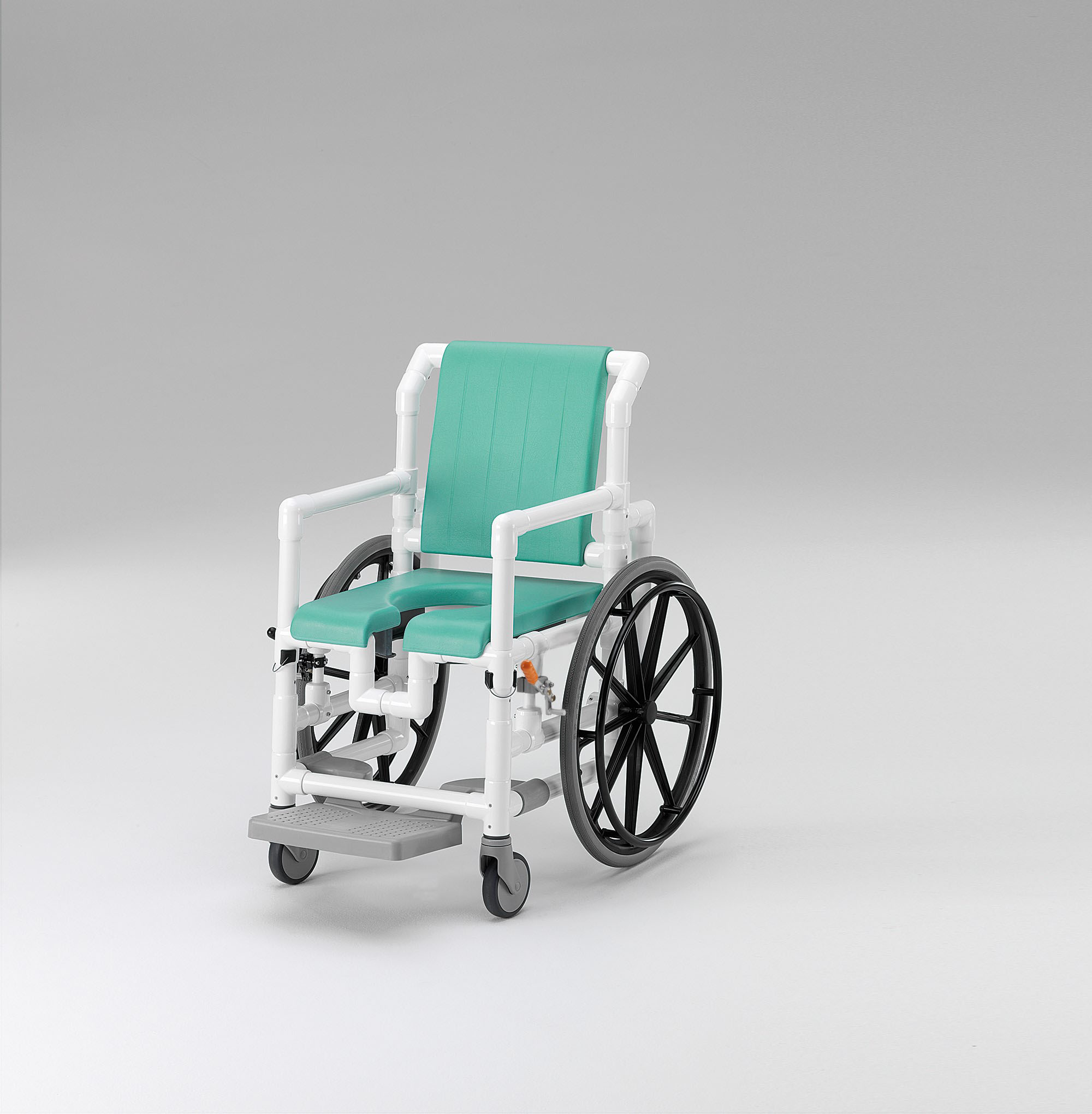

Shower-Wheelchair


HMI-no.
32288
Article-no.
701408

Registration date
22-05-2002
Last updated
11-09-2025

Properties
Tension adjustable back rest upholstery
No
Can be used with standard wall-mounted toilets (without extension)
Yes
Possibility to change position of armrest to allow sideways transfer
Yes
Fold-up foot supports
No
Height adjustable legrests
No
Elevating legrests
No
Legrest position may be changed to facililtate hygiene and transfer
Yes

Measures
User weight, max
150
kg
Total width
80
cm
Ground clearance
46
cm
Measured from the floor to the lowest point under the seat. Measured without bedpan/collection receptacle.
Width between arm supports
44
cm
Smallest distance measured between the inside of the arm supports. If the arm supports are adjustable, this is measured with the arm supports in the widest position.
Seat depth
44
cm
If the seat depth is adjustable, this is the maximum seat depth
Seat height
56.5
cm
Wheel diameter
610
mm
Number of wheels with brake
2
Height of push handles/push bar, min.
100.5
cm
Measured from the floor to the upper surface of the grip. According to ISO 17966:2016 it shall be possible to push the chair with the grip 90 cm above the floor.
Height of push handles/push bar, max.
100.5
cm
Measured from the floor to the upper surface of the heigher grip with the chair in the highest position

Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type

EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device
