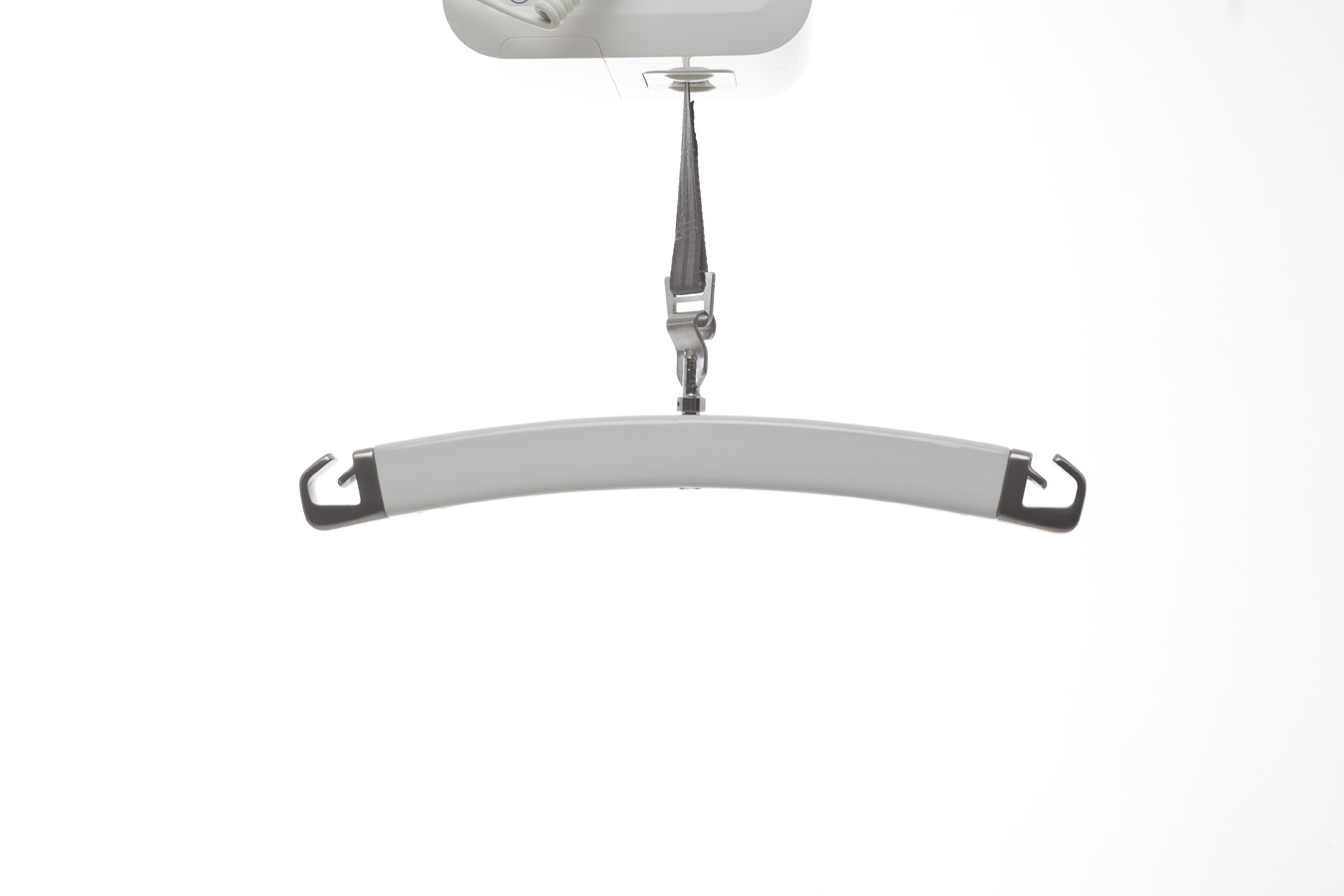

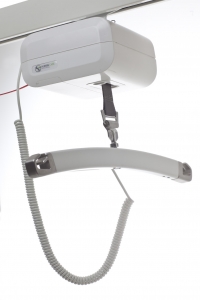

HeliQ
Classification
12 36 12 02 - Stationary hoists fixed to walls, floor or ceiling
Documents
BrochureThe product series contains 1 product.
Product 1 of 1
HeliQ
HMI-no.
87912
Article-no.
55120
Registration date
17-06-2015
Last updated
21-11-2023
Properties
Ingress protection class for water
IPX4
0-9 (IPX0-IPX9) according to the standard for degrees of protection provided by enclosures (IEC 60529)
Electrical lifting mechanism
Yes
Electrical horizontal movement
Yes
Intended fixation to ceiling
Yes
Intended fixation to wall(s)
Yes
Intended fixation to floor
Yes
Fitted with seat
No
Intended use for swimming pools
Yes
Room covering rail system
Yes
Door transition without manual handling
Yes
Door transition with manual handling
Yes
Detachable lifting machinery
Yes
External battery charger
Yes
Charging station at track
Yes
Charging liner
Yes
Emergency lowering function, electrically operated
Yes
Emergency lowering function, manually operated
Yes
Measures
User weight, max
300
kg
Max lifting velocity, loaded
0.03
m/s
Weight of lifting machinery
10.9
kg
Min. distance from ceiling to central suspension point
37
cm
Maintenance frequency
12
måneder
Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type
EU product safety regulation
No information about CE-marking
The supplier has not provided any information about CE-marking of the product. Explain CE-marking
