MultiLift

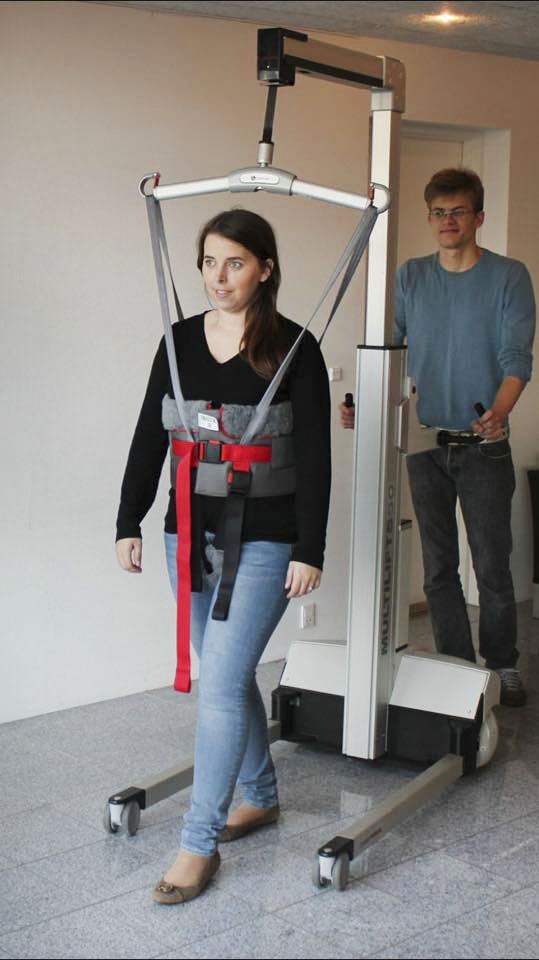

Motor assisted mobile patient lift. Suitable for all lifting situations. Intuitive handling. No physical effort needed when moving and turning the lift.
https://www.youtube.com/embed/ClqvLsfpEIY

Classification
12 36 03 04 - Mobile hoists for transferring a person in sitting position with sling seats

Documents
Brochure


The product series contains 1 product.

Product 1 of 1

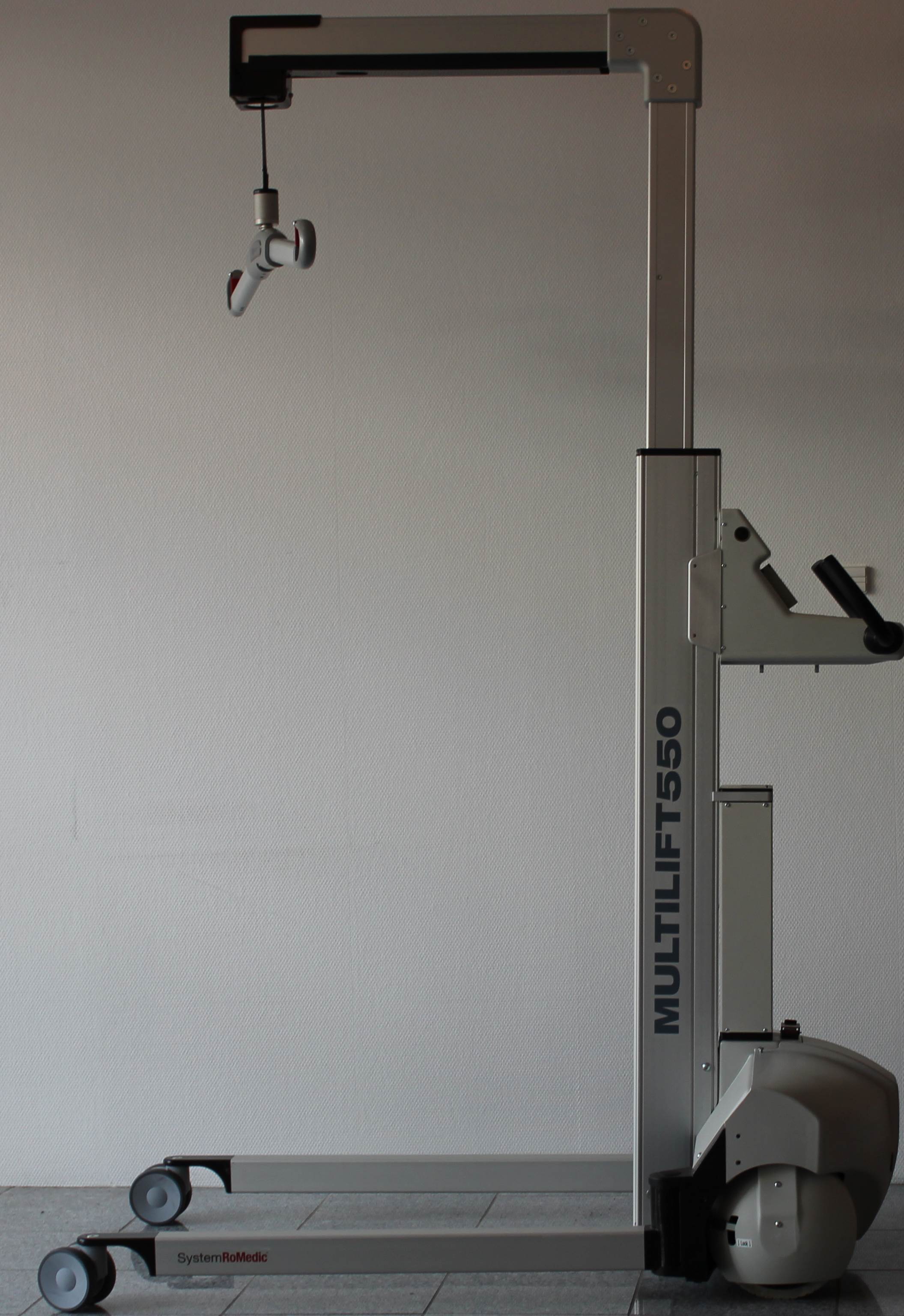

Multilift 550


HMI-no.
89669

Registration date
02-12-2015
Last updated
17-10-2024

Properties
Ingress protection class for water
IPX4
info
0-9 (IPX0-IPX9) according to the standard for degrees of protection provided by enclosures (IEC 60529)

Properties
Width adjustment of base
Ja, elektrisk

Properties
Width adjustable movement
V-formet

Properties
Lifting movement
Vertikal
info
The distance between the central supension point and the mast is constant with a vertical lifting movement. With a curved lifting movement the distance varies.
Foldable
No
Can be disassembled without tools
No
Can lift from floor level
Yes
Standing mobile hoist unit available
No
Integrated battery charger
Yes
Emergency lowering function
Yes

Measures
User weight, max
250
kg
Internal width of base, max
117.8
cm
info
Measured with the base in the widest position
External width of base in the most narrow position
70
cm
Height of base at front
11.7
cm
Turning diameter
139
cm
info
Diameter of the narrowest circle encompassing the extreme points of the hoist, when it is turned 360 degrees without beeing reversed.
Weight of heaviest main part
98
kg
Maintenance frequency
12
måneder

Test information
No information about tests according to standards info
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type

EU product safety regulation
No information about CE-marking info
The supplier has not provided any information about CE-marking of the product. Explain CE-marking
