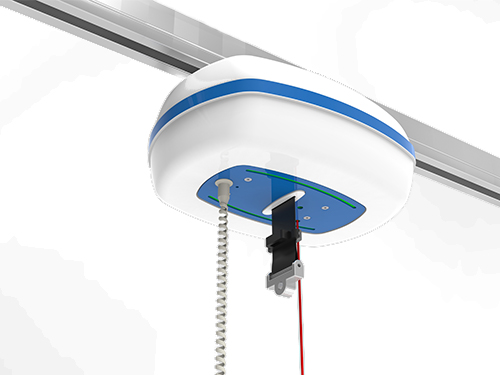

Hoist unit AR-260
AR-260 hoist unit is for the smart, easy and silent transfer of patients. a light weight unit with a capacity for heavier loads.
Classification
12 36 12 02 - Stationary hoists fixed to walls, floor or ceiling
BrochureThe product series contains 1 product.
Product 1 of 1
Hoist unit AR-260
HMI-no.
100199
Registration date
27-01-2016
Last updated
21-11-2023
Properties
Ingress protection class for water
IPX4
0-9 (IPX0-IPX9) according to the standard for degrees of protection provided by enclosures (IEC 60529)
Electrical lifting mechanism
Yes
Electrical horizontal movement
Yes
Intended fixation to ceiling
Yes
Intended fixation to wall(s)
Yes
Intended fixation to floor
No
Fitted with seat
No
Intended use for swimming pools
Yes
Room covering rail system
Yes
Door transition without manual handling
Yes
Door transition with manual handling
Yes
Detachable lifting machinery
Yes
External battery charger
Yes
Charging station at track
Yes
Charging liner
No
Emergency lowering function, electrically operated
Yes
Emergency lowering function, manually operated
Yes
Measures
User weight, max
260
kg
Max lifting velocity, loaded
0.7
m/s
Weight of lifting machinery
14
kg
Min. distance from ceiling to central suspension point
25
cm
Maintenance frequency
12
måneder
Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type
EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device
