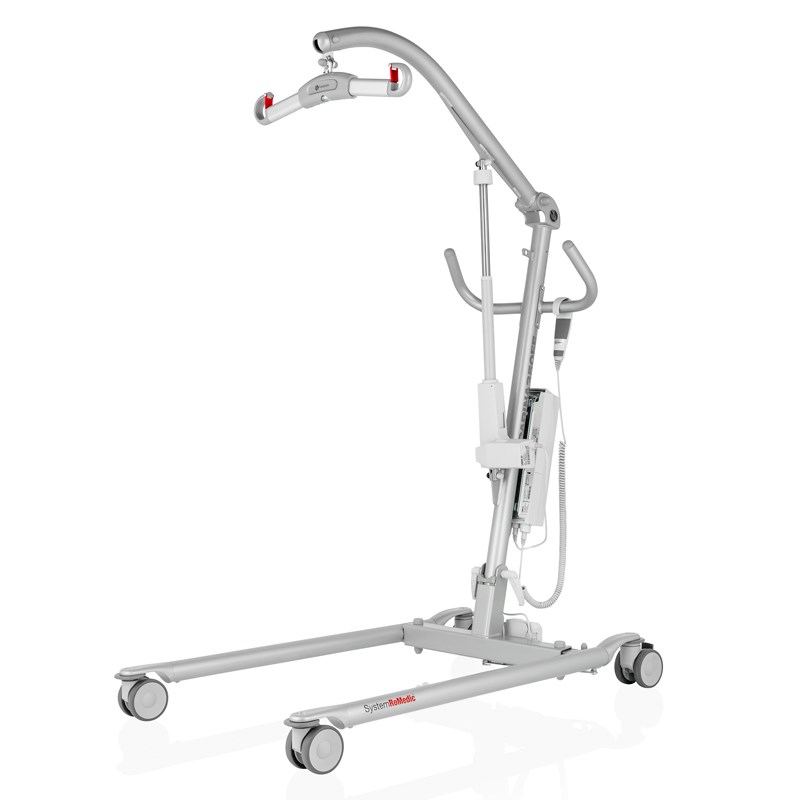

Carina
Classification
12 36 03 04 - Mobile hoists for transferring a person in sitting position with sling seats
Documents
User manualThe product series contains 2 products.
Product 1 of 2
Carina350EE
HMI-no.
101047
Article-no.
60600009
Registration date
08-04-2016
Last updated
17-10-2024
Properties
Ingress protection class for water
IPX4
0-9 (IPX0-IPX9) according to the standard for degrees of protection provided by enclosures (IEC 60529)
Properties
Width adjustment of base
Ja, elektrisk
Properties
Width adjustable movement
V-formet
Properties
Lifting movement
Bueformet
The distance between the central supension point and the mast is constant with a vertical lifting movement. With a curved lifting movement the distance varies.
Foldable
Yes
Can be disassembled without tools
Yes
Can lift from floor level
Yes
Standing mobile hoist unit available
No
Integrated battery charger
Yes
Emergency lowering function
Yes
Measures
User weight, max
165
kg
Internal width of base, max
94
cm
Measured with the base in the widest position
External width of base in the most narrow position
68
cm
Height of base at front
12.5
cm
Turning diameter
123
cm
Diameter of the narrowest circle encompassing the extreme points of the hoist, when it is turned 360 degrees without beeing reversed.
Weight of heaviest main part
17.5
kg
Maintenance frequency
12
måneder
Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type
EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device
Product 2 of 2
Carina350EM
HMI-no.
101048
Article-no.
60600011
Registration date
08-04-2016
Last updated
17-10-2024
Properties
Ingress protection class for water
IPX4
0-9 (IPX0-IPX9) according to the standard for degrees of protection provided by enclosures (IEC 60529)
Properties
Width adjustment of base
Ja, elektrisk
Properties
Width adjustable movement
V-formet
Properties
Lifting movement
Bueformet
The distance between the central supension point and the mast is constant with a vertical lifting movement. With a curved lifting movement the distance varies.
Foldable
Yes
Can be disassembled without tools
Yes
Can lift from floor level
Yes
Standing mobile hoist unit available
No
Integrated battery charger
Yes
Emergency lowering function
Yes
Measures
User weight, max
165
kg
Internal width of base, max
94
cm
Measured with the base in the widest position
External width of base in the most narrow position
68
cm
Height of base at front
12.5
cm
Turning diameter
123
cm
Diameter of the narrowest circle encompassing the extreme points of the hoist, when it is turned 360 degrees without beeing reversed.
Weight of heaviest main part
17.5
kg
Maintenance frequency
12
måneder
Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type
EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device
