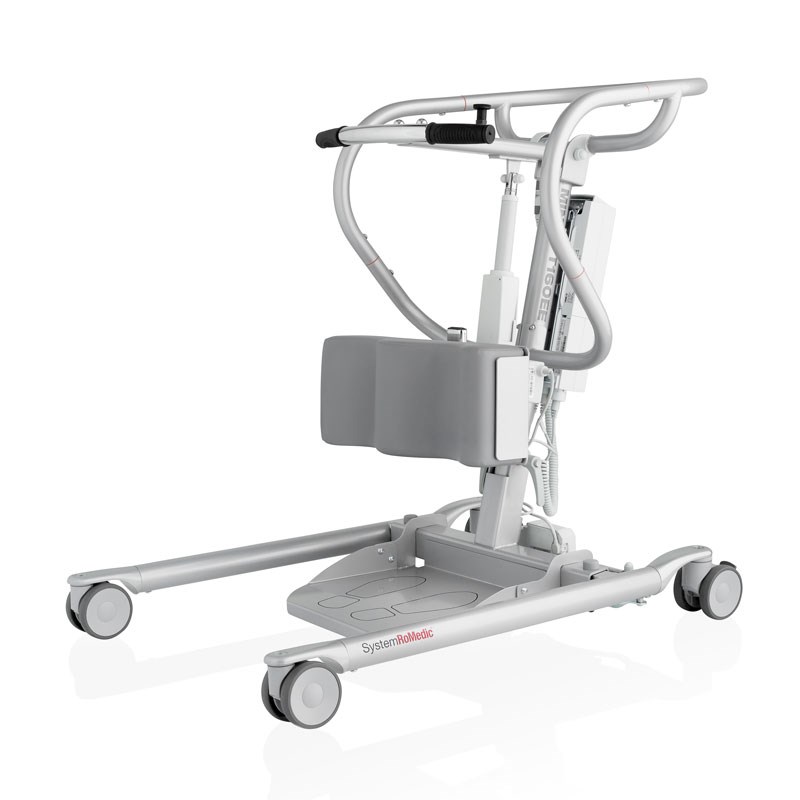

MiniLift160

MiniLift160

Classification
12 36 04 01 - Mobile hoists for transferring a person in standing position

Documents
Brochure
User manual
Service manual


The product series contains 2 products.

» Summarize specifications

Product 1 of 2
MiniLift160EE


HMI-no.
101049
Article-no.
60300012

Registration date
08-04-2016
Last updated
14-08-2025

Properties
Width adjustment of base
Ja, elektrisk

Properties
Width adjustable movement
V-formet
Electrical lifting mechanism
Yes
Leg support adjustable in height
Yes
Leg support horizontal adjustable
Yes
Leg support adjustable without tools
Yes
Split leg support
No
Foldable
Yes
Can be disassembled without tools
Yes
Integrated battery charger
Yes
Emergency lowering function
Yes
Unit for use with sling(s) available
Yes

Measures
User weight, max
160
kg
Lifting height, max
140.5
cm
Internal width of base, max
77.3
cm
External width of base in the most narrow position
66.9
cm
Height of base at front
12.3
cm
Turning diameter
110
cm
Diameter of the narrowest circle encompassing the extreme points of the hoist, when it is turned 360 degrees without beeing reversed.
Weight of heaviest main part
25
kg
Ingress protection class for water
4
IP
0-9 (IPX0-IPX9) according to the standard for degrees of protection provided by enclosures (IEC 60529)
Maintenance frequency
12
måneder

Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type

EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device
EU declaration of conformity for HMI-no. 101049

Product 2 of 2
MiniLift160EM


HMI-no.
101050
Article-no.
60300010

Registration date
08-04-2016
Last updated
14-08-2025

Properties
Width adjustment of base
Ja, elektrisk

Properties
Width adjustable movement
V-formet
Electrical lifting mechanism
Yes
Leg support adjustable in height
Yes
Leg support horizontal adjustable
Yes
Leg support adjustable without tools
Yes
Split leg support
No
Foldable
Yes
Can be disassembled without tools
Yes
Integrated battery charger
Yes
Emergency lowering function
Yes
Unit for use with sling(s) available
Yes

Measures
User weight, max
160
kg
Lifting height, max
140.5
cm
Internal width of base, max
77.3
cm
External width of base in the most narrow position
66.9
cm
Height of base at front
12.3
cm
Turning diameter
110
cm
Diameter of the narrowest circle encompassing the extreme points of the hoist, when it is turned 360 degrees without beeing reversed.
Weight of heaviest main part
25
kg
Ingress protection class for water
4
IP
0-9 (IPX0-IPX9) according to the standard for degrees of protection provided by enclosures (IEC 60529)
Maintenance frequency
12
måneder

Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type

EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device
EU declaration of conformity for HMI-no. 101050
