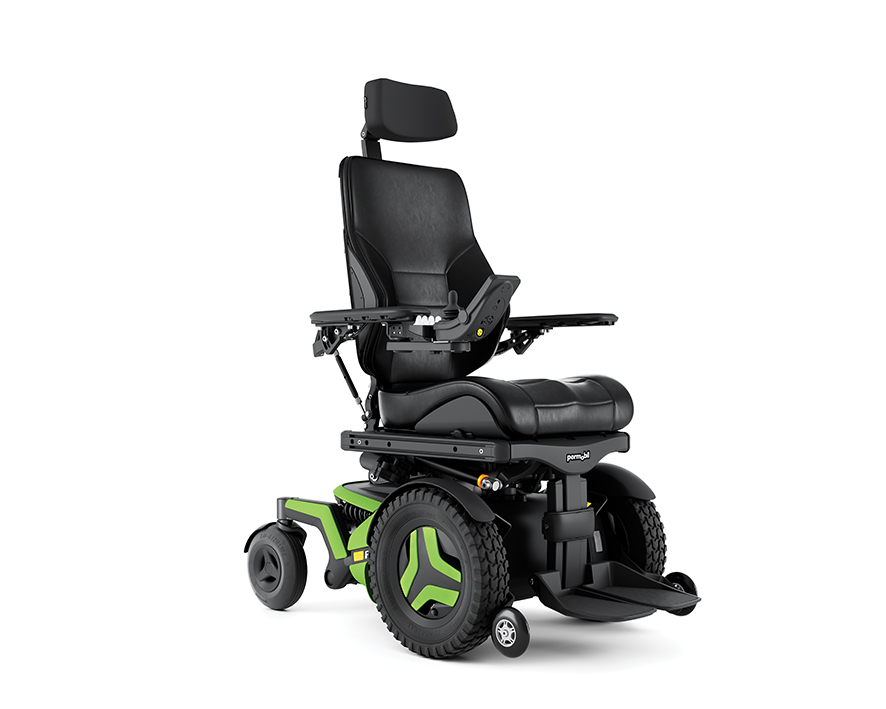

F3 Corpus



The F3 CORPUS offers the smallest footprint of this redesigned series of front-wheel drive power wheelchairs. Its size and agility let users move quickly in and out of tight spaces like busy city streets and crowded areas like malls...or even parties.

Classification
12 23 06 08 - Powered wheelchairs, powered steering, class B (for indoor and outdoor use)

Documents
Brochure
User manual


The product series contains 2 products.
The product series also includes a discontinued product. Include discontinued products.

» Summarize specifications

Product 1 of 2
F3 Corpus PP


HMI-no.
137506
Article-no.
108993-99-0

Registration date
21-07-2023
Last updated
18-09-2025

Properties
Programmable
Yes

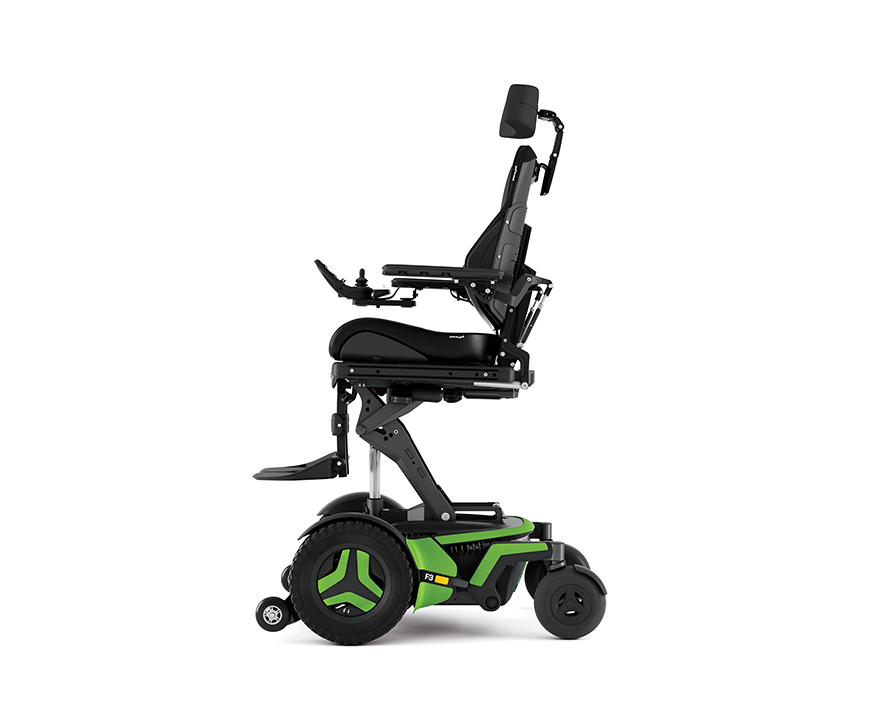

Elevating seat
Yes

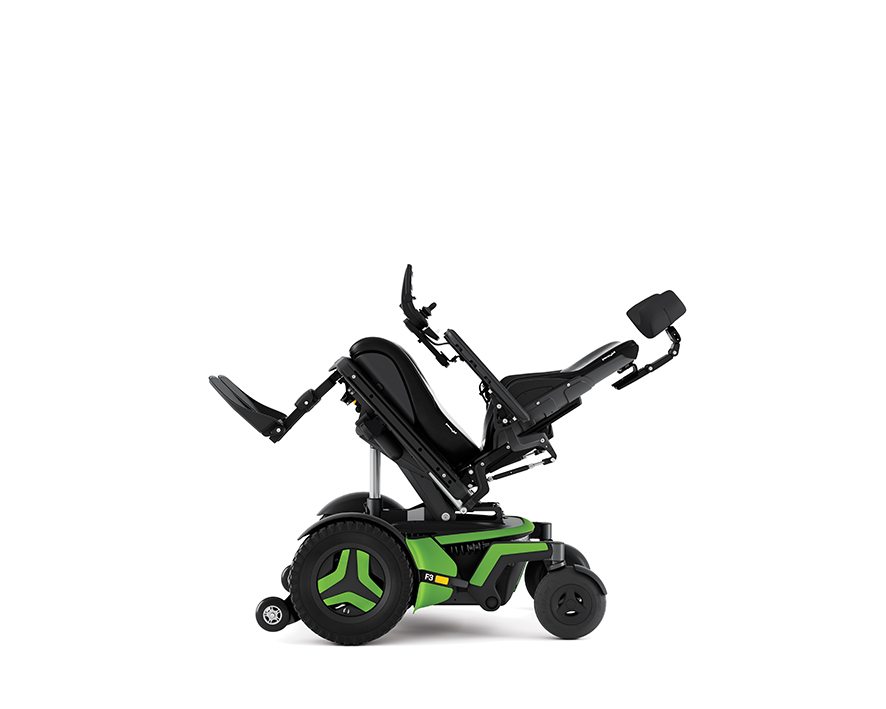

Powered recline
Yes
Powered tilt
Yes
Powered legrests
Yes
Optional motorized attendant control
Yes
Suspension
Yes
Front-wheel-driven
Yes
Mid-wheel-driven
No
Rear-wheel-driven
No
Can be used as seat in a car
Yes

Measures
User weight, max
150
kg
External width
61
cm
Measured where widest
External length
89
cm
Maximum external length with the seat in an upright position. Measured without leg supports
Weight
185
kg
Speed, max
10
km/t
Driving distance range, fully charged
40
km
The theoretical driving distance range as calculated through laboratory testing.
Seat height, min
45
cm
The vertical distance between the floor and the seat surface measured at the front edge of the seat. Measured with the seat in the lowest position.
Seat height, max
75
cm
The vertical distance between the floor and the seat surface measured at the front edge of the seat. Measured with the seat in the highest position.
Back rest recline, max
180
°
Recline of back rest from an upright position.
Tilt-in-space forward
30
°
Measured from the horizontal position.
Tilt-in-space back
50
°
Measured from the horizontal position.
Ground clearance
8
cm
Slope, max
12
°
Climbs obstacles of max
7.5
cm

Test information
No information about tests according to standards info
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type

EU product safety regulation info
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device
EU declaration of conformity for HMI-no. 137506

Product 2 of 2
F3 Corpus PP Low Height


HMI-no.
145622
Article-no.
111164-99-0

Registration date
27-08-2025
Last updated
11-09-2025

Properties
Programmable
Yes
Elevating seat
Yes
Powered recline
Yes
Powered tilt
Yes
Powered legrests
Yes
Optional motorized attendant control
Yes
Suspension
Yes
Front-wheel-driven
Yes
Mid-wheel-driven
No
Rear-wheel-driven
No
Can be used as seat in a car
Yes

Measures
User weight, max
150
kg
External width
61
cm
Measured where widest
External length
79
cm
Maximum external length with the seat in an upright position. Measured without leg supports
Weight
173
kg
Speed, max
10
km/t
Driving distance range, fully charged
30
km
The theoretical driving distance range as calculated through laboratory testing.
Seat height, min
39
cm
The vertical distance between the floor and the seat surface measured at the front edge of the seat. Measured with the seat in the lowest position.
Seat height, max
59
cm
The vertical distance between the floor and the seat surface measured at the front edge of the seat. Measured with the seat in the highest position.
Back rest recline, max
180
°
Recline of back rest from an upright position.
Tilt-in-space forward
10
°
Measured from the horizontal position.
Tilt-in-space back
20
°
Measured from the horizontal position.
Ground clearance
6
cm
Slope, max
12
°
Climbs obstacles of max
5
cm

Test information
No information about tests according to standards info
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type

EU product safety regulation info
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device
EU declaration of conformity for HMI-no. 145622
