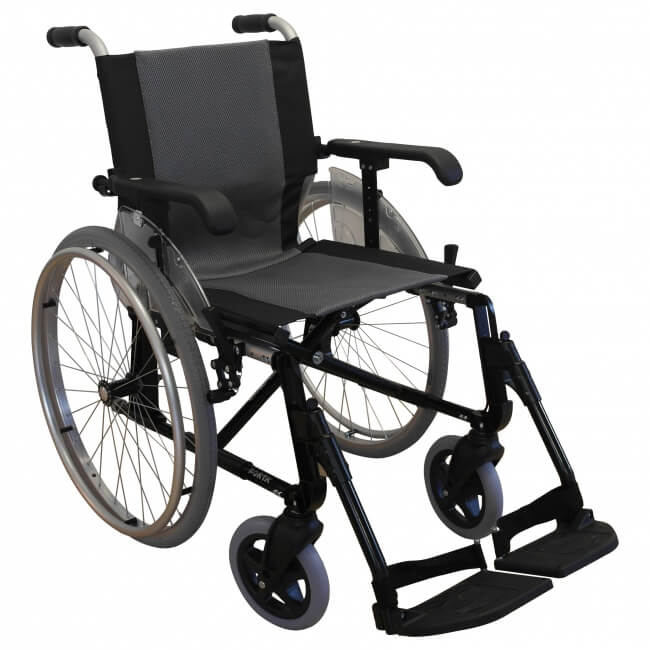

Line - aluminium wheelchair with extra low weight




Classification

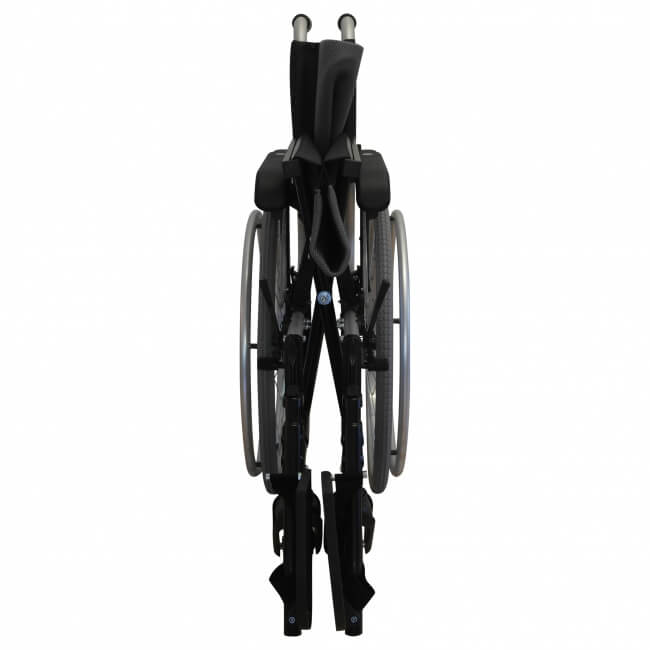

12 22 03 11 - Manual wheelchairs, sideways foldable, standard measures

Documents
Brochure
User manual

Video
Play video


The product series contains 1 product.

Product 1 of 1
Line - aluminium wheelchair with extra low weight


HMI-no.
82066
Article-no.
OM-943174

Registration date
11-08-2016
Last updated
06-01-2026

Properties
Adjustable seat angle
No
Balance point adjustable
No
Available with hard base
No
As opposed to sling seat
Back rest angle adjustable
No
Height adjustable back rest
No
Push handles
Yes
Front-wheel-driven
No
Intended for fastening in a car
No
Adjustable seat depth
No
The seat depth in this specific frame can be altered by adjustment or replacement of component(s)

Measures
User weight, max
140
kg
Seat height, min
51
cm
Seat height, max
51
cm
Back rest height, min
47
cm
Back rest height, max
47
cm
Total width
63
cm
Total length
107
cm
Weight
13.5
kg
The weight of the wheelchair incl. wheels and leg supports.
Seat width
45
cm
Seat depth, min
41
cm
Possibly by adjustment
Seat depth, max
41
cm
Longest possible for this frame. Possibly identical to seat depth, min.

Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type

EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device
