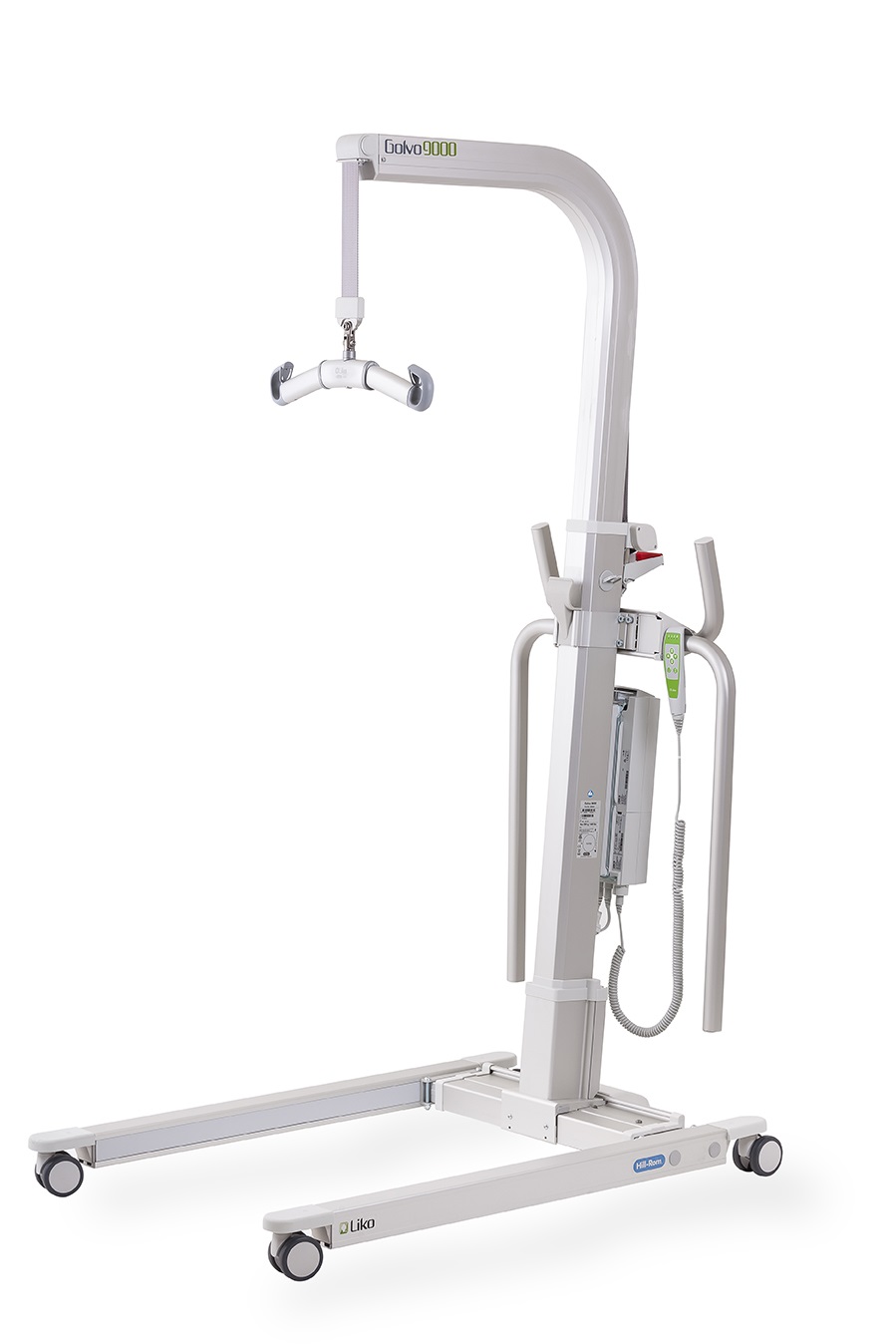

Golvo 9000




Classification
12 36 03 04 - Mobile hoists for transferring a person in sitting position with sling seats

Documents


The product series contains 2 products.

Product 1 of 2
Golvo 9000


HMI-no.
105095
Article-no.
1000-2000045

Registration date
28-04-2017
Last updated
11-01-2024

Properties
Ingress protection class for water
IPX4
info
0-9 (IPX0-IPX9) according to the standard for degrees of protection provided by enclosures (IEC 60529)

Properties
Width adjustment of base
Ja, elektrisk

Properties
Width adjustable movement
Parallel

Properties
Lifting movement
Bueformet
info
The distance between the central supension point and the mast is constant with a vertical lifting movement. With a curved lifting movement the distance varies.
Foldable
No
Can be disassembled without tools
Yes
Can lift from floor level
Yes
Standing mobile hoist unit available
No
Integrated battery charger
Yes
Emergency lowering function
Yes

Measures
User weight, max
200
kg
Internal width of base, max
90.7
cm
info
Measured with the base in the widest position
External width of base in the most narrow position
73.5
cm
Height of base at front
10.5
cm
Turning diameter
133
cm
info
Diameter of the narrowest circle encompassing the extreme points of the hoist, when it is turned 360 degrees without beeing reversed.
Weight of heaviest main part
23.4
kg
Maintenance frequency
12
måneder

Test information
No information about tests according to standards info
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type

EU product safety regulation
No information about CE-marking info
The supplier has not provided any information about CE-marking of the product. Explain CE-marking

Product 2 of 2
Golvo 9000 Lowbase


HMI-no.
105137
Article-no.
1000-2000049

Registration date
03-05-2017
Last updated
11-01-2024

Properties
Ingress protection class for water
IPX4
info
0-9 (IPX0-IPX9) according to the standard for degrees of protection provided by enclosures (IEC 60529)

Properties
Width adjustment of base
Ja, elektrisk

Properties
Width adjustable movement
Parallel

Properties
Lifting movement
Bueformet
info
The distance between the central supension point and the mast is constant with a vertical lifting movement. With a curved lifting movement the distance varies.
Foldable
No
Can be disassembled without tools
Yes
Can lift from floor level
Yes
Standing mobile hoist unit available
No
Integrated battery charger
Yes
Emergency lowering function
Yes

Measures
User weight, max
200
kg
Internal width of base, max
90.7
cm
info
Measured with the base in the widest position
External width of base in the most narrow position
74.5
cm
Height of base at front
6
cm
Turning diameter
133
cm
info
Diameter of the narrowest circle encompassing the extreme points of the hoist, when it is turned 360 degrees without beeing reversed.
Weight of heaviest main part
23.4
kg
Maintenance frequency
12
måneder

Test information
No information about tests according to standards info
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type

EU product safety regulation
No information about CE-marking info
The supplier has not provided any information about CE-marking of the product. Explain CE-marking
