M3 Corpus R-net
With our M-series, we have re-thought what a mid-wheel chair can do, from the ground up. The M3 Corpus and the M5 Corpus offer a formidable combination of chassis and seat, intuitive to drive and easy to service.
Classification
12 23 06 08 - Powered wheelchairs, powered steering, class B (for indoor and outdoor use)
Documents
The product series contains 2 products.
Product 1 of 2

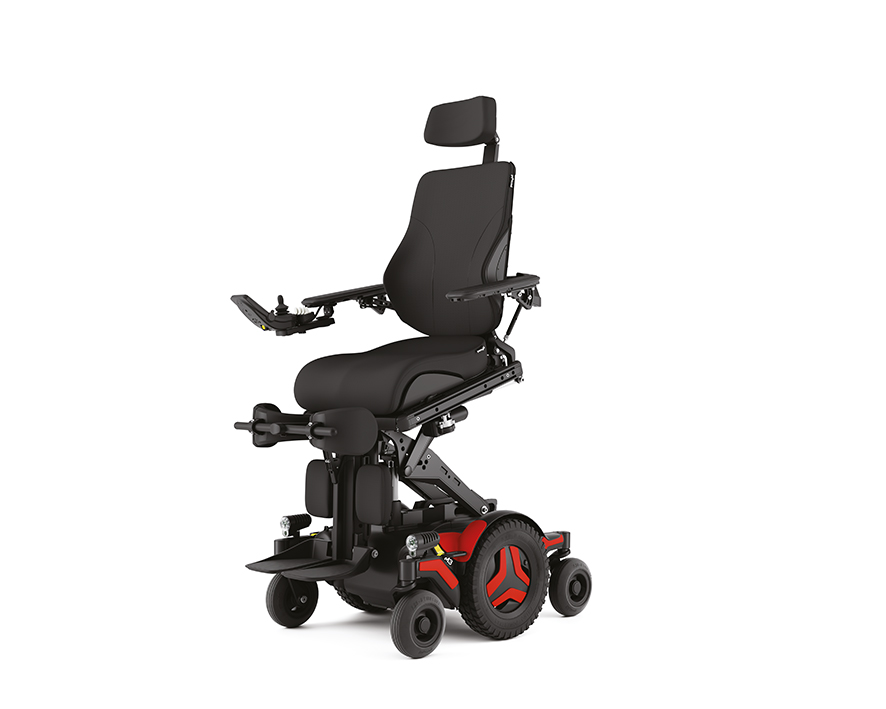

M3 Corpus R-net
HMI-no.
106045
Article-no.
109052-99-0
Registration date
23-08-2017
Last updated
16-02-2024
Properties
Intended for children
Yes
Products for children must comply with the specific demands for safety as stated in certain standards. It is the supplier of the product who has stated that the product is intended for children. The National Board of Social Services holds no responsibility in relation to this assessment.
Programmable
Yes
Elevating seat
Yes
Powered recline
Yes
Powered tilt
Yes
Powered legrests
Yes
Optional motorized attendant control
Yes
Suspension
Yes
Front-wheel-driven
No
Mid-wheel-driven
Yes
Rear-wheel-driven
No
Can be used as seat in a car
Yes
Measures
User weight, max
150
kg
External width
61.5
cm
Measured where widest
External length
85.5
cm
Maximum external length with the seat in an upright position. Measured without leg supports
Weight
175
kg
Speed, max
10
km/t
Driving distance range, fully charged
30
km
The theoretical driving distance range as calculated through laboratory testing.
Seat height, min
45
cm
The vertical distance between the floor and the seat surface measured at the front edge of the seat. Measured with the seat in the lowest position.
Seat height, max
75
cm
The vertical distance between the floor and the seat surface measured at the front edge of the seat. Measured with the seat in the highest position.

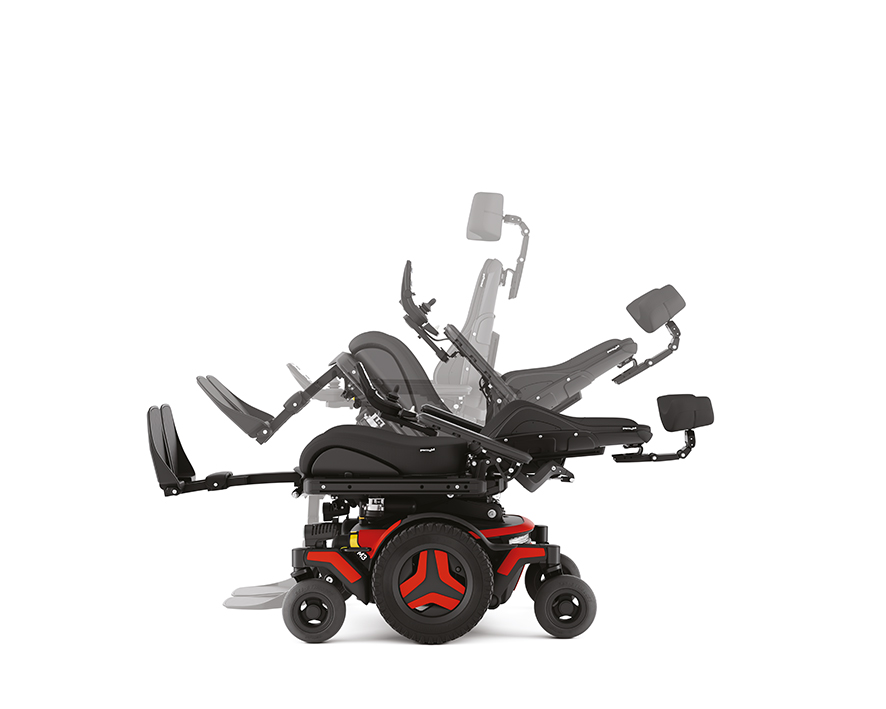

Back rest recline, max
180
°
Recline of back rest from an upright position.
Tilt-in-space forward
20
°
Measured from the horizontal position.
Tilt-in-space back
50
°
Measured from the horizontal position.
Ground clearance
8
cm
Turning diameter
110
cm
Slope, max
12
°
Climbs obstacles of max
7.5
cm
Test information
Though the product is testet, it might not have passed all requirements in the standard. Besides, some products are only tested according to parts of the standard. Read the test report for detailed information. See also other standards that could be relevant for this product type.
EN 12182:1999: Technical aids for disabled persons - General requirements and test methods.
Test lab: TÜV SÜD Product Service GmbH. Test date: 15-03-2017
Test report for HMI-no. 106045
Test lab: TÜV SÜD Product Service GmbH. Test date: 15-03-2017
Test report for HMI-no. 106045EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device
Product 2 of 2
M3 Corpus R-net PP
HMI-no.
137505
Article-no.
109047-99-0
Registration date
21-07-2023
Last updated
04-06-2024
Properties
Intended for children
Yes
Products for children must comply with the specific demands for safety as stated in certain standards. It is the supplier of the product who has stated that the product is intended for children. The National Board of Social Services holds no responsibility in relation to this assessment.
Programmable
Yes
Elevating seat
Yes
Powered recline
Yes
Powered tilt
Yes
Powered legrests
Yes
Optional motorized attendant control
Yes
Suspension
Yes
Front-wheel-driven
No
Mid-wheel-driven
Yes
Rear-wheel-driven
No
Can be used as seat in a car
Yes
Measures
User weight, max
150
kg
External width
61.5
cm
Measured where widest
External length
85.5
cm
Maximum external length with the seat in an upright position. Measured without leg supports
Weight
175
kg
Speed, max
10
km/t
Driving distance range, fully charged
40
km
The theoretical driving distance range as calculated through laboratory testing.
Seat height, min
45
cm
The vertical distance between the floor and the seat surface measured at the front edge of the seat. Measured with the seat in the lowest position.
Seat height, max
75
cm
The vertical distance between the floor and the seat surface measured at the front edge of the seat. Measured with the seat in the highest position.
Back rest recline, max
180
°
Recline of back rest from an upright position.
Tilt-in-space forward
20
°
Measured from the horizontal position.
Tilt-in-space back
50
°
Measured from the horizontal position.
Ground clearance
8
cm
Turning diameter
110
cm
Slope, max
12
°
Climbs obstacles of max
7.5
cm
Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type
EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device
