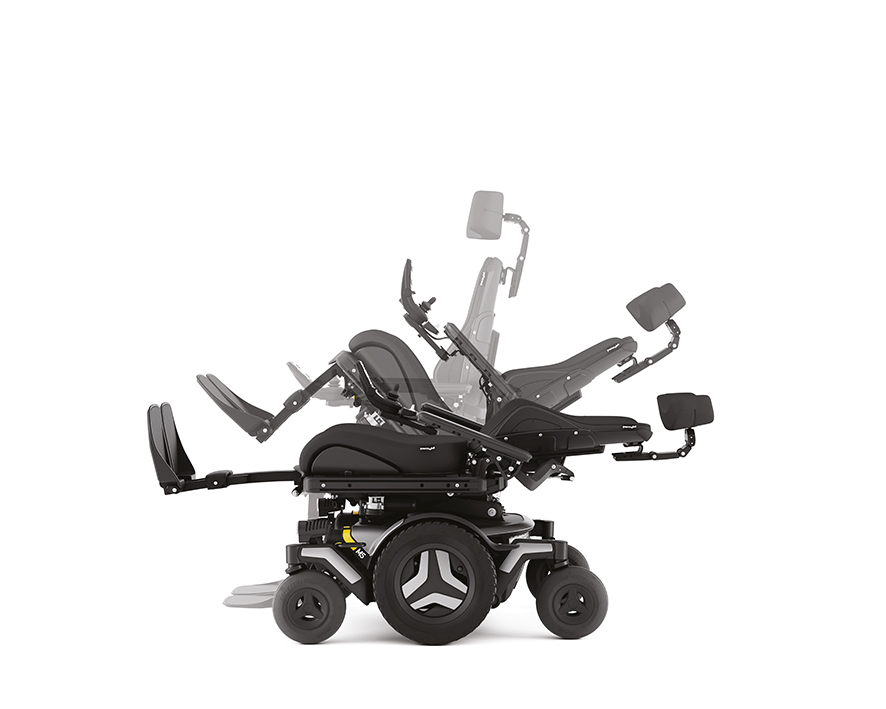

M5 Corpus R-net



With our M-series, we have re-thought what a mid-wheel chair can do, from the ground up. The M3 Corpus and the M5 Corpus offer a formidable combination of chassis and seat, intuitive to drive and easy to service.

Classification
12 23 06 09 - Powered wheelchairs, powered steering, class C (primarily for outdoor use)

Documents
Brochure
User manual


The product series contains 1 product.
The product series also includes a discontinued product. Include discontinued products.

Product 1 of 1
M5 Corpus PP


HMI-no.
137512
Article-no.
109046-99-0

Registration date
21-07-2023
Last updated
18-09-2025

Properties
Programmable
Yes
Elevating seat
Yes
Powered recline
Yes
Powered tilt
Yes
Powered legrests
Yes
Optional motorized attendant control
Yes
Suspension
Yes
Front-wheel-driven
No
Mid-wheel-driven
Yes
Rear-wheel-driven
No
Can be used as seat in a car
Yes

Measures
User weight, max
150
kg
External width
63
cm
Measured where widest
External length
90.9
cm
Maximum external length with the seat in an upright position. Measured without leg supports
Weight
194
kg
Speed, max
12
km/t
Driving distance range, fully charged
40
km
The theoretical driving distance range as calculated through laboratory testing.
Seat height, min
45
cm
The vertical distance between the floor and the seat surface measured at the front edge of the seat. Measured with the seat in the lowest position.
Seat height, max
80
cm
The vertical distance between the floor and the seat surface measured at the front edge of the seat. Measured with the seat in the highest position.
Back rest recline, max
180
°
Recline of back rest from an upright position.
Tilt-in-space forward
20
°
Measured from the horizontal position.
Tilt-in-space back
50
°
Measured from the horizontal position.
Ground clearance
8
cm
Slope, max
12
°
Climbs obstacles of max
10
cm

Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type

EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device
EU declaration of conformity for HMI-no. 137512
