Olaf 98 Natural

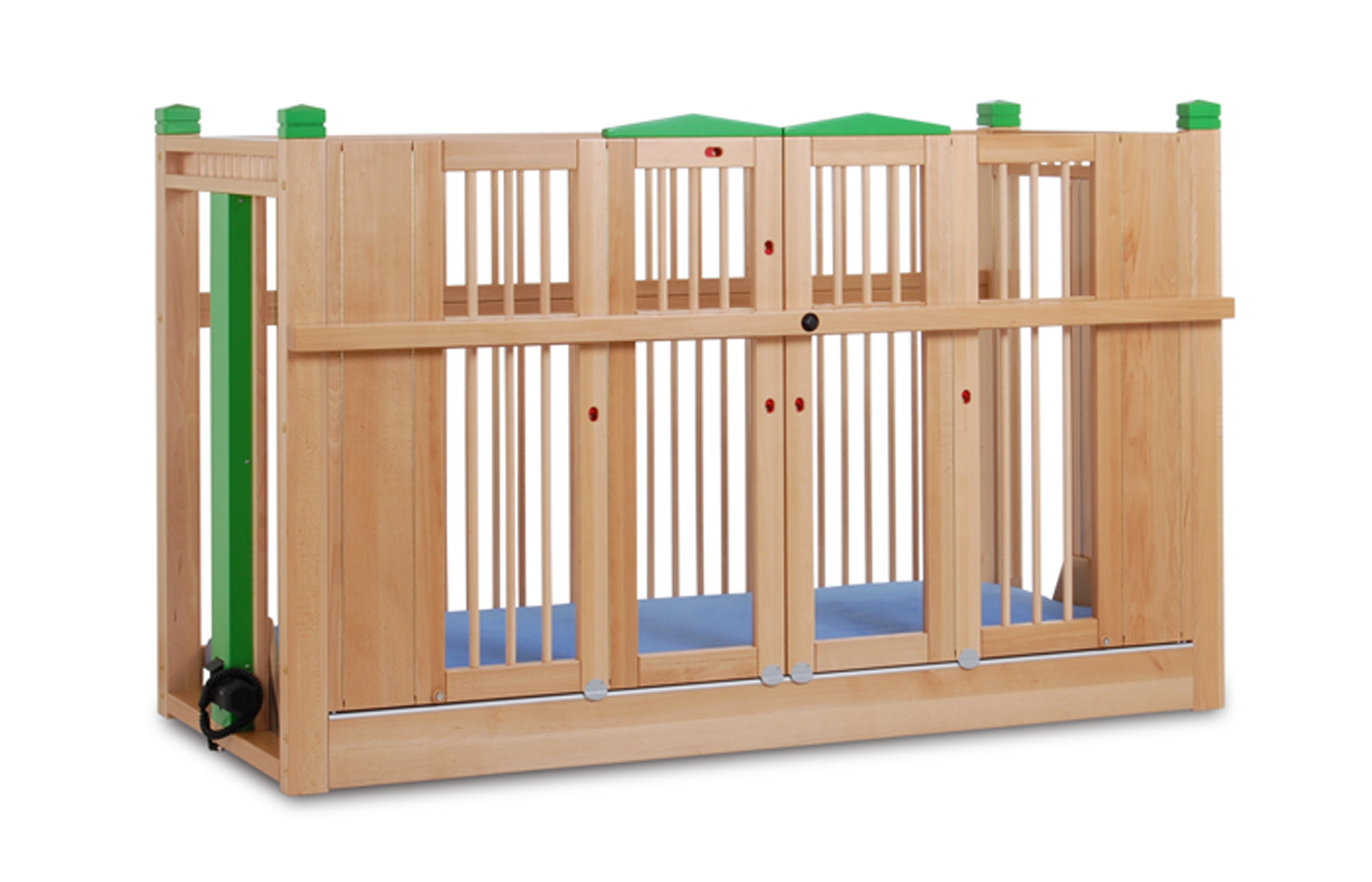

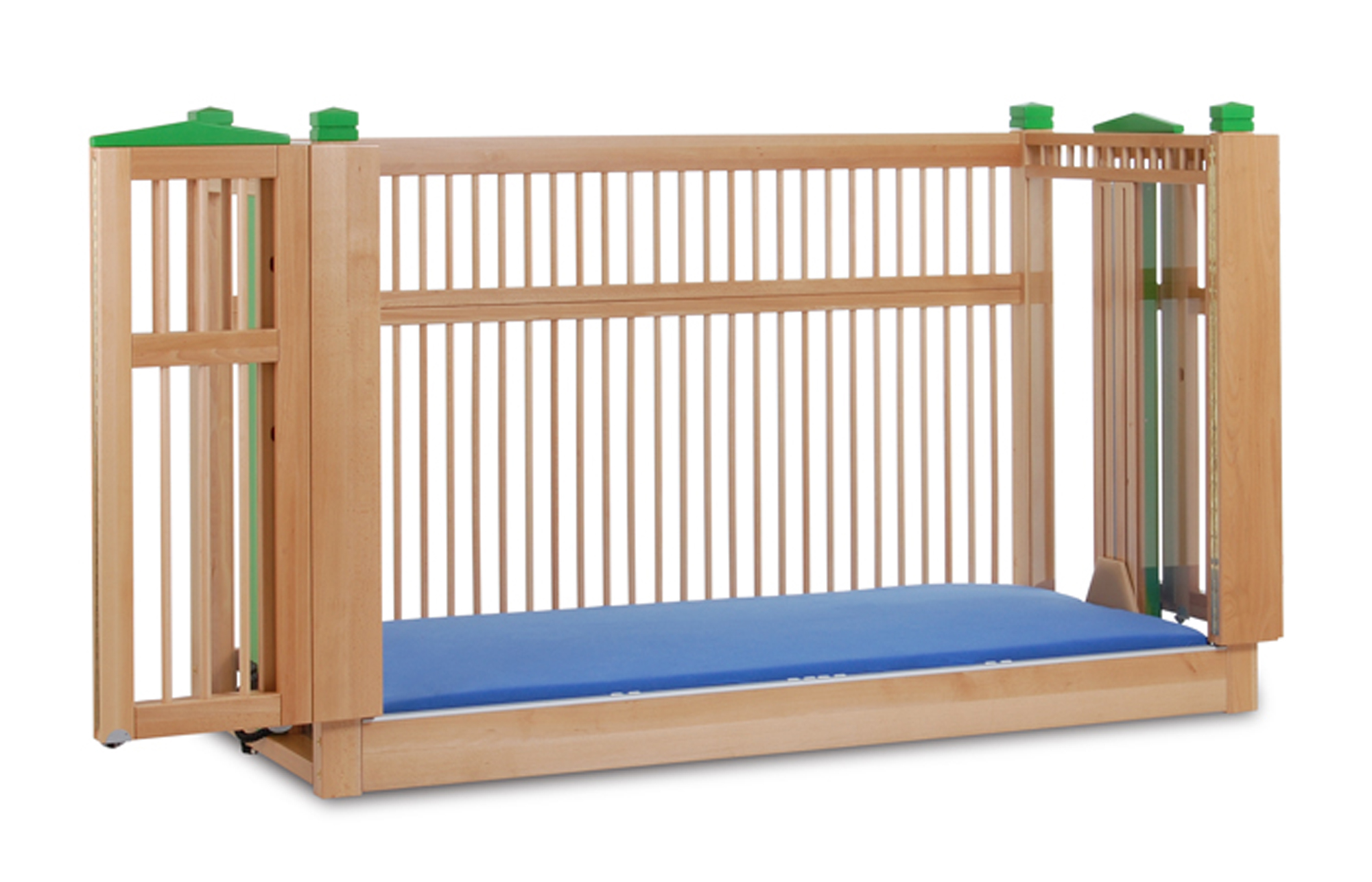

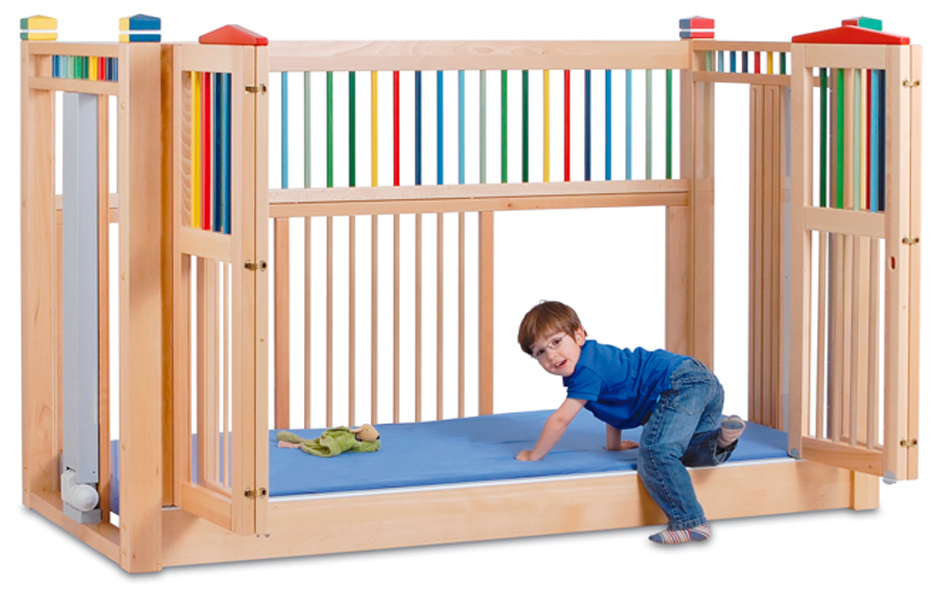

Massive bed in beech, for troubled children. Available with two entrance heights, 17 cm and 35 cm. Three bed size: 140/70, 170/90 and 200/90 cm. Bed side height is 98 cm. and 135 cm. The bed has quadruple doors, also available in color. Special locking brackets allow the doors not to be opened from the inside. Individual customization possible.
Classification
18 12 10 30 - Adjustable beds, 4-sectioned mattress support platform, electrically operated
Documents
BrochureThe product series contains 2 products.
Product 1 of 2
Olaf 98 Care cot 200/100 cm 35 cm. access level Natural
HMI-no.
106964
Article-no.
19150010
Registration date
15-11-2017
Last updated
21-10-2024
Properties
Ingress protection class for water
IPX4
0-9 (IPX0-IPX9) according to the standard for degrees of protection provided by enclosures (IEC 60529)
Properties
Adjustment of the height of mattress support platform
Elektrisk
Intended for children
Yes
Products for children must comply with the specific demands for safety as stated in certain standards. It is the supplier of the product who has stated that the product is intended for children. The National Board of Social Services holds no responsibility in relation to this assessment.
Bed extension
No
Bed extension, follows the movements of the mattress support platform
No
Intended for use in hospitals
No
Intended for use in nursing institutions
No
Intended for long-term care in a medical area where medical supervision is required and monitoring is provided if necessary, e.g. nursing homes and rehabilitation and geriatic facilities.
Intended for use in a domestic area
Yes
Machine washable
No
Machine washable at least 50 times according to EN 50637:2017 and EN 60601-2-52:2010/A1:2015.
Central braking system
No
Back rest section, electrical adjustment
No
Leg section, electrical adjustment
No
Upper leg section, electrical adjustment
No
Separate adjustment of back rest
No
Indicates whether the back rest can be adjusted independently of other parts of the mattress support platform
Combined adjustment of mattress support platform
No
Indicates whether back rest and knee bending can be adjusted with one control button
Removable bed-rails
No
Removable self-lifting rail
Yes
Removable foot board
No
Removable head board
No
Heigh cot sides
Yes
Intended to prevent a person (usually a child) in getting out of the bed.
Adjustable head support section
No
Trendelenburg, manual operation
No
Trendelenburg, electrical operation
No
Anti-trendelenburg, manual operation
No
Anti-trendelenburg, electrical operation
No
Measures
Outside measure length
222
cm
Measured without any bed extension
Outside measure width
107.5
cm
Measured including non-detachable accessories
Mattress size, length
200
cm
Mattress size, width
100
cm
Load, max
150
kg
Maximum external load on the product that is permitted in normal use
User weight, max
150
kg
Weight of heaviest main part
40
kg
Weight of heaviest part when disassembled without the use of tools.
Mattress support platform, height above floor, min
35
cm
Measured without mattress
Mattress support platform, height above floor, max
105
cm
Measured without mattress
Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type
EU product safety regulation
No information about CE-marking
The supplier has not provided any information about CE-marking of the product. Explain CE-marking
Other specifications
Mattress size: 200/100 cm. Comes with KM3 mattress and KR1 sleeping platform. The side height is 98 cm. The childrens bed Olaf is intended for restless children with normal motor skills. The bed allows the child to go to bed himself because of the low ent
Product 2 of 2
Olaf 98 Care cot 200/90 cm 35 cm. access level Natural
HMI-no.
106963
Article-no.
19140010
Registration date
15-11-2017
Last updated
21-10-2024
Properties
Ingress protection class for water
IPX4
0-9 (IPX0-IPX9) according to the standard for degrees of protection provided by enclosures (IEC 60529)
Properties
Adjustment of the height of mattress support platform
Elektrisk
Intended for children
Yes
Products for children must comply with the specific demands for safety as stated in certain standards. It is the supplier of the product who has stated that the product is intended for children. The National Board of Social Services holds no responsibility in relation to this assessment.
Bed extension
No
Bed extension, follows the movements of the mattress support platform
No
Intended for use in hospitals
No
Intended for use in nursing institutions
No
Intended for long-term care in a medical area where medical supervision is required and monitoring is provided if necessary, e.g. nursing homes and rehabilitation and geriatic facilities.
Intended for use in a domestic area
Yes
Machine washable
No
Machine washable at least 50 times according to EN 50637:2017 and EN 60601-2-52:2010/A1:2015.
Central braking system
No
Back rest section, electrical adjustment
No
Leg section, electrical adjustment
No
Upper leg section, electrical adjustment
No
Separate adjustment of back rest
No
Indicates whether the back rest can be adjusted independently of other parts of the mattress support platform
Combined adjustment of mattress support platform
No
Indicates whether back rest and knee bending can be adjusted with one control button
Removable bed-rails
No
Removable self-lifting rail
Yes
Removable foot board
No
Removable head board
No
Heigh cot sides
Yes
Intended to prevent a person (usually a child) in getting out of the bed.
Adjustable head support section
No
Trendelenburg, manual operation
No
Trendelenburg, electrical operation
No
Anti-trendelenburg, manual operation
No
Anti-trendelenburg, electrical operation
No
Measures
Outside measure length
222
cm
Measured without any bed extension
Outside measure width
107.5
cm
Measured including non-detachable accessories
Mattress size, length
200
cm
Mattress size, width
90
cm
Load, max
150
kg
Maximum external load on the product that is permitted in normal use
User weight, max
150
kg
Weight of heaviest main part
40
kg
Weight of heaviest part when disassembled without the use of tools.
Mattress support platform, height above floor, min
17
cm
Measured without mattress
Mattress support platform, height above floor, max
105
cm
Measured without mattress
Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type
EU product safety regulation
No information about CE-marking
The supplier has not provided any information about CE-marking of the product. Explain CE-marking
Other specifications
Mattress size: 200/90 cm. Comes with KM3 mattress and KR1 sleeping platform. The side height is 98 cm. The childrens bed Olaf is intended for restless children with normal motor skills. The bed allows the child to go to bed himself because of the low entr
