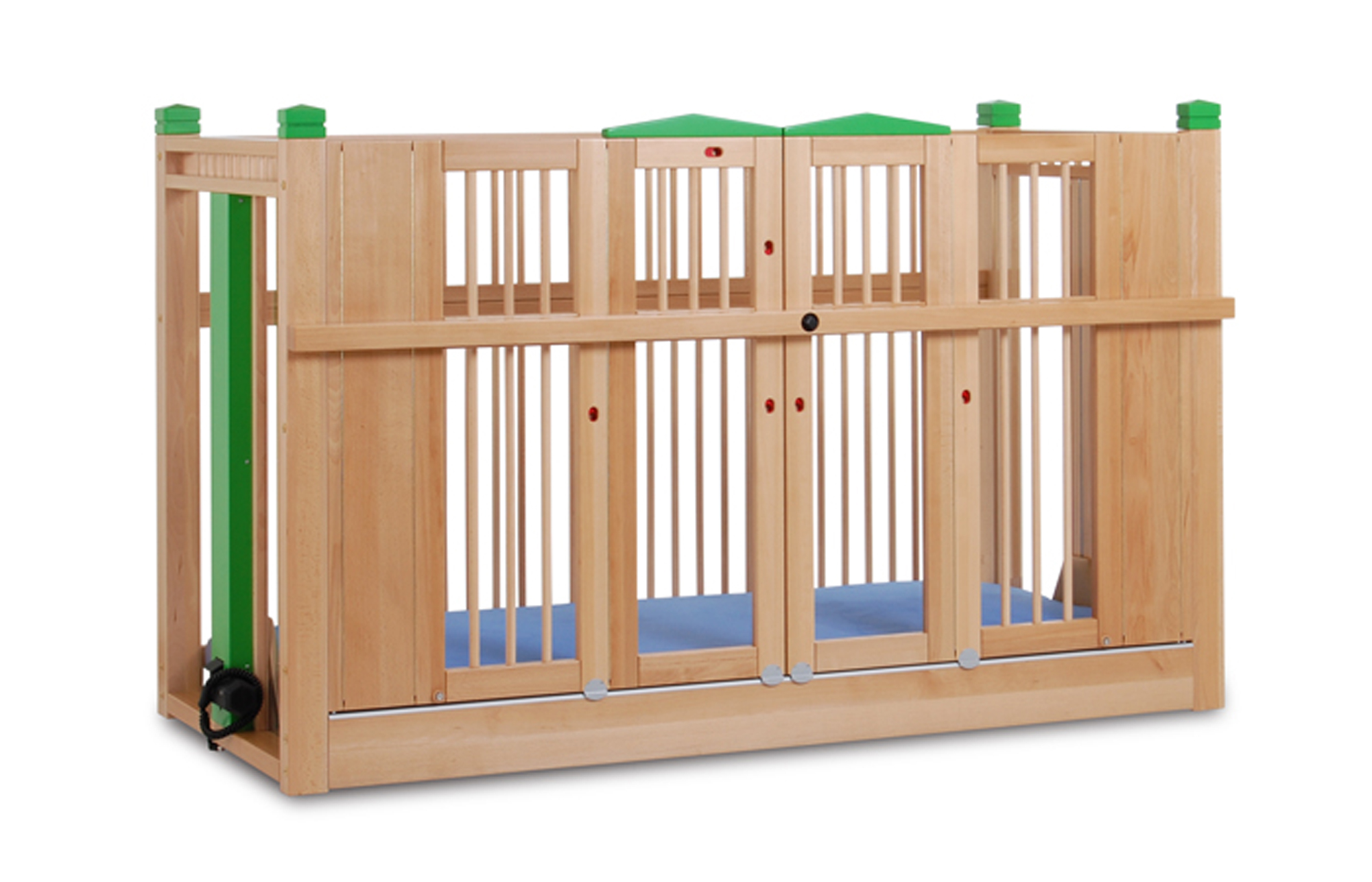

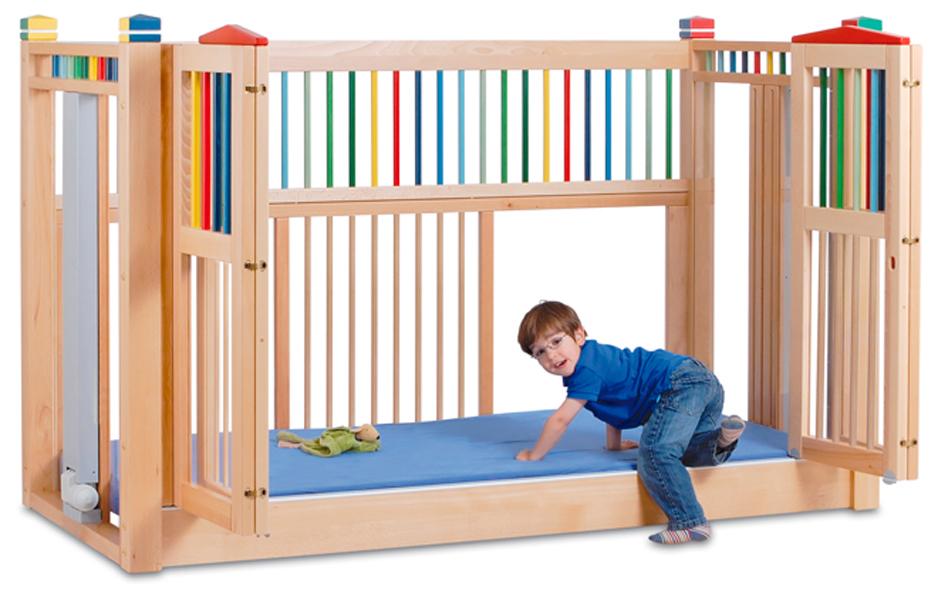

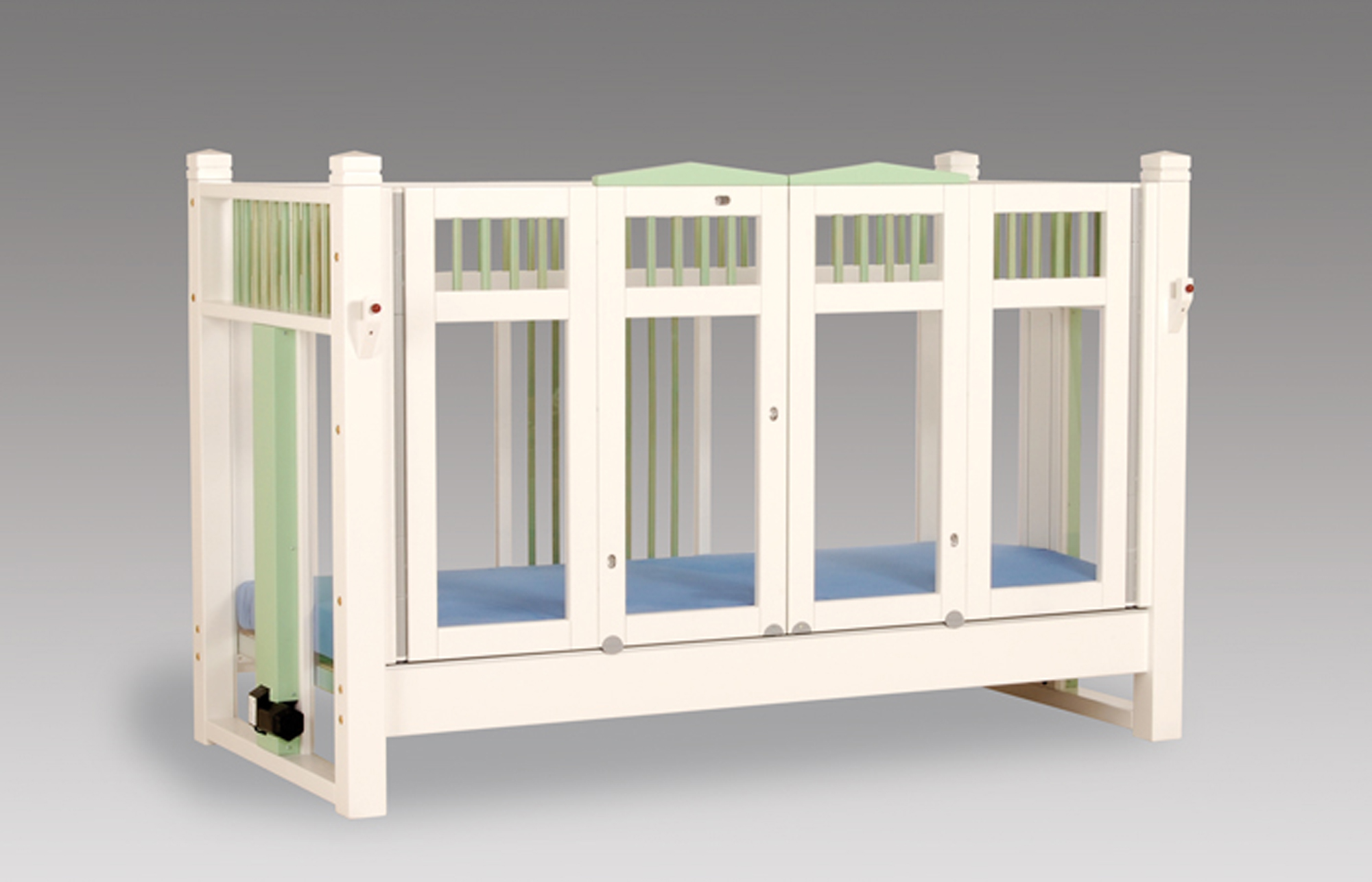

Olaf 98 Natural Care cot 17 cm. access level



Massive bed in beech, for troubled children. Available with two entrance heights, 17 cm and 35 cm. Three bed size: 140/70, 170/90 and 200/90 cm. Bed side height is 98 cm. and 135 cm. The bed has quadruple doors, also available in color. Special locking brackets allow the doors not to be opened from the inside. Individual customization possible.

Classification
18 12 10 30 - Adjustable beds, 4-sectioned mattress support platform, electrically operated

Documents
Brochure


The product series contains 4 products.

» Summarize specifications

Product 1 of 4
Olaf 98 Care cot 140/70 cm. 17 cm. access level Natural


HMI-no.
106968
Article-no.
22050010

Registration date
15-11-2017
Last updated
11-09-2025

Properties
Adjustment of the height of mattress support platform
Elektrisk
Bed extension
No
Bed extension, follows the movements of the mattress support platform
No
Intended for use in hospitals
No
Intended for use in nursing institutions
No
Intended for long-term care in a medical area where medical supervision is required and monitoring is provided if necessary, e.g. nursing homes and rehabilitation and geriatic facilities.
Intended for use in a domestic area
Yes
Machine washable
No
Machine washable at least 50 times according to EN 50637:2017 and EN 60601-2-52:2010/A1:2015.
Central braking system
No
Back rest section, electrical adjustment
No
Leg section, electrical adjustment
No
Upper leg section, electrical adjustment
No
Separate adjustment of back rest
No
Indicates whether the back rest can be adjusted independently of other parts of the mattress support platform
Combined adjustment of mattress support platform
No
Indicates whether back rest and knee bending can be adjusted with one control button
Removable bed-rails
No
Removable self-lifting rail
Yes
Removable foot board
No
Removable head board
No
Heigh cot sides
No
Intended to prevent a person (usually a child) in getting out of the bed.
Adjustable head support section
No
Trendelenburg, manual operation
No
Trendelenburg, electrical operation
No
Anti-trendelenburg, manual operation
No
Anti-trendelenburg, electrical operation
No

Measures
Outside measure length
162
cm
Measured without any bed extension
Outside measure width
87.5
cm
Measured including non-detachable accessories
Mattress size, length
140
cm
Mattress size, width
70
cm
Load, max
150
kg
Maximum external load on the product that is permitted in normal use
User weight, max
150
kg
Weight of heaviest main part
40
kg
Weight of heaviest part when disassembled without the use of tools.
Ingress protection class for water
4
IP
0-9 (IPX0-IPX9) according to the standard for degrees of protection provided by enclosures (IEC 60529)
Mattress support platform, height above floor, min
17
cm
Measured without mattress
Mattress support platform, height above floor, max
105
cm
Measured without mattress
Under bed clearance
0
cm
Minimum under bed clearance in the 100 cm middle area measured from the floor with the mattress support platform 40-80 cm above the floor.

Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type

EU product safety regulation
No information about CE-marking
The supplier has not provided any information about CE-marking of the product. Explain CE-marking

Other specifications
Mattress size: 140/70 cm. Comes with KM3 mattress and KR1 sleeping platform. The side height is 98 cm. The childrens bed Olaf is intended for restless children with normal motor skills. The bed allows the child to go to bed himself because of the low entr


Product 2 of 4
Olaf 98 Care cot 170/90 cm. 17 cm. access level Natural


HMI-no.
106969
Article-no.
22060010

Registration date
15-11-2017
Last updated
11-09-2025

Properties
Adjustment of the height of mattress support platform
Elektrisk
Bed extension
No
Bed extension, follows the movements of the mattress support platform
No
Intended for use in hospitals
No
Intended for use in nursing institutions
No
Intended for long-term care in a medical area where medical supervision is required and monitoring is provided if necessary, e.g. nursing homes and rehabilitation and geriatic facilities.
Intended for use in a domestic area
Yes
Machine washable
No
Machine washable at least 50 times according to EN 50637:2017 and EN 60601-2-52:2010/A1:2015.
Central braking system
No
Back rest section, electrical adjustment
No
Leg section, electrical adjustment
No
Upper leg section, electrical adjustment
No
Separate adjustment of back rest
No
Indicates whether the back rest can be adjusted independently of other parts of the mattress support platform
Combined adjustment of mattress support platform
No
Indicates whether back rest and knee bending can be adjusted with one control button
Removable bed-rails
No
Removable self-lifting rail
Yes
Removable foot board
No
Removable head board
No
Heigh cot sides
Yes
Intended to prevent a person (usually a child) in getting out of the bed.
Adjustable head support section
No
Trendelenburg, manual operation
No
Trendelenburg, electrical operation
No
Anti-trendelenburg, manual operation
No
Anti-trendelenburg, electrical operation
No

Measures
Outside measure length
192
cm
Measured without any bed extension
Outside measure width
107.5
cm
Measured including non-detachable accessories
Mattress size, length
170
cm
Mattress size, width
90
cm
Load, max
150
kg
Maximum external load on the product that is permitted in normal use
User weight, max
150
kg
Weight of heaviest main part
40
kg
Weight of heaviest part when disassembled without the use of tools.
Ingress protection class for water
4
IP
0-9 (IPX0-IPX9) according to the standard for degrees of protection provided by enclosures (IEC 60529)
Mattress support platform, height above floor, min
17
cm
Measured without mattress
Mattress support platform, height above floor, max
105
cm
Measured without mattress
Under bed clearance
0
cm
Minimum under bed clearance in the 100 cm middle area measured from the floor with the mattress support platform 40-80 cm above the floor.

Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type

EU product safety regulation
No information about CE-marking
The supplier has not provided any information about CE-marking of the product. Explain CE-marking

Other specifications
Mattress size: 170/90 cm. Comes with KM3 mattress and KR1 sleeping platform. The side height is 98 cm. The childrens bed Olaf is intended for restless children with normal motor skills. The bed allows the child to go to bed himself because of the low entr


Product 3 of 4
Olaf 98 Care cot 200/100 cm. 17 cm. access level Natural


HMI-no.
106971
Article-no.
22080010

Registration date
15-11-2017
Last updated
11-09-2025

Properties
Adjustment of the height of mattress support platform
Elektrisk
Bed extension
No
Bed extension, follows the movements of the mattress support platform
No
Intended for use in hospitals
No
Intended for use in nursing institutions
No
Intended for long-term care in a medical area where medical supervision is required and monitoring is provided if necessary, e.g. nursing homes and rehabilitation and geriatic facilities.
Intended for use in a domestic area
Yes
Machine washable
No
Machine washable at least 50 times according to EN 50637:2017 and EN 60601-2-52:2010/A1:2015.
Central braking system
No
Back rest section, electrical adjustment
No
Leg section, electrical adjustment
No
Upper leg section, electrical adjustment
No
Separate adjustment of back rest
No
Indicates whether the back rest can be adjusted independently of other parts of the mattress support platform
Combined adjustment of mattress support platform
No
Indicates whether back rest and knee bending can be adjusted with one control button
Removable bed-rails
No
Removable self-lifting rail
Yes
Removable foot board
No
Removable head board
No
Heigh cot sides
Yes
Intended to prevent a person (usually a child) in getting out of the bed.
Adjustable head support section
No
Trendelenburg, manual operation
No
Trendelenburg, electrical operation
No
Anti-trendelenburg, manual operation
No
Anti-trendelenburg, electrical operation
No

Measures
Outside measure length
222
cm
Measured without any bed extension
Outside measure width
117.5
cm
Measured including non-detachable accessories
Mattress size, length
200
cm
Mattress size, width
100
cm
Load, max
150
kg
Maximum external load on the product that is permitted in normal use
User weight, max
150
kg
Weight of heaviest main part
40
kg
Weight of heaviest part when disassembled without the use of tools.
Ingress protection class for water
4
IP
0-9 (IPX0-IPX9) according to the standard for degrees of protection provided by enclosures (IEC 60529)
Mattress support platform, height above floor, min
17
cm
Measured without mattress
Mattress support platform, height above floor, max
105
cm
Measured without mattress
Under bed clearance
0
cm
Minimum under bed clearance in the 100 cm middle area measured from the floor with the mattress support platform 40-80 cm above the floor.

Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type

EU product safety regulation
No information about CE-marking
The supplier has not provided any information about CE-marking of the product. Explain CE-marking

Other specifications
Mattress size:200/100 cm. Comes with KM3 mattress and KR1 sleeping platform. The side height is 98 cm. The childrens bed Olaf is intended for restless children with normal motor skills. The bed allows the child to go to bed himself because of the low entr


Product 4 of 4
Olaf 98 Care cot 200/90 cm. 17 cm. access level Natural


HMI-no.
106970
Article-no.
22070010

Registration date
15-11-2017
Last updated
11-09-2025

Properties
Adjustment of the height of mattress support platform
Elektrisk
Bed extension
No
Bed extension, follows the movements of the mattress support platform
No
Intended for use in hospitals
No
Intended for use in nursing institutions
No
Intended for long-term care in a medical area where medical supervision is required and monitoring is provided if necessary, e.g. nursing homes and rehabilitation and geriatic facilities.
Intended for use in a domestic area
Yes
Machine washable
No
Machine washable at least 50 times according to EN 50637:2017 and EN 60601-2-52:2010/A1:2015.
Central braking system
No
Back rest section, electrical adjustment
No
Leg section, electrical adjustment
No
Upper leg section, electrical adjustment
No
Separate adjustment of back rest
No
Indicates whether the back rest can be adjusted independently of other parts of the mattress support platform
Combined adjustment of mattress support platform
No
Indicates whether back rest and knee bending can be adjusted with one control button
Removable bed-rails
No
Removable self-lifting rail
Yes
Removable foot board
No
Removable head board
No
Heigh cot sides
Yes
Intended to prevent a person (usually a child) in getting out of the bed.
Adjustable head support section
No
Trendelenburg, manual operation
No
Trendelenburg, electrical operation
No
Anti-trendelenburg, manual operation
No
Anti-trendelenburg, electrical operation
No

Measures
Outside measure length
222
cm
Measured without any bed extension
Outside measure width
107.5
cm
Measured including non-detachable accessories
Mattress size, length
200
cm
Mattress size, width
90
cm
Load, max
150
kg
Maximum external load on the product that is permitted in normal use
User weight, max
150
kg
Weight of heaviest main part
40
kg
Weight of heaviest part when disassembled without the use of tools.
Ingress protection class for water
4
IP
0-9 (IPX0-IPX9) according to the standard for degrees of protection provided by enclosures (IEC 60529)
Mattress support platform, height above floor, min
17
cm
Measured without mattress
Mattress support platform, height above floor, max
105
cm
Measured without mattress
Under bed clearance
0
cm
Minimum under bed clearance in the 100 cm middle area measured from the floor with the mattress support platform 40-80 cm above the floor.

Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type

EU product safety regulation
No information about CE-marking
The supplier has not provided any information about CE-marking of the product. Explain CE-marking

Other specifications
Mattress size:200/90 cm. Comes with KM3 mattress and KR1 sleeping platform. The side height is 98 cm. The childrens bed Olaf is intended for restless children with normal motor skills. The bed allows the child to go to bed himself because of the low entry
