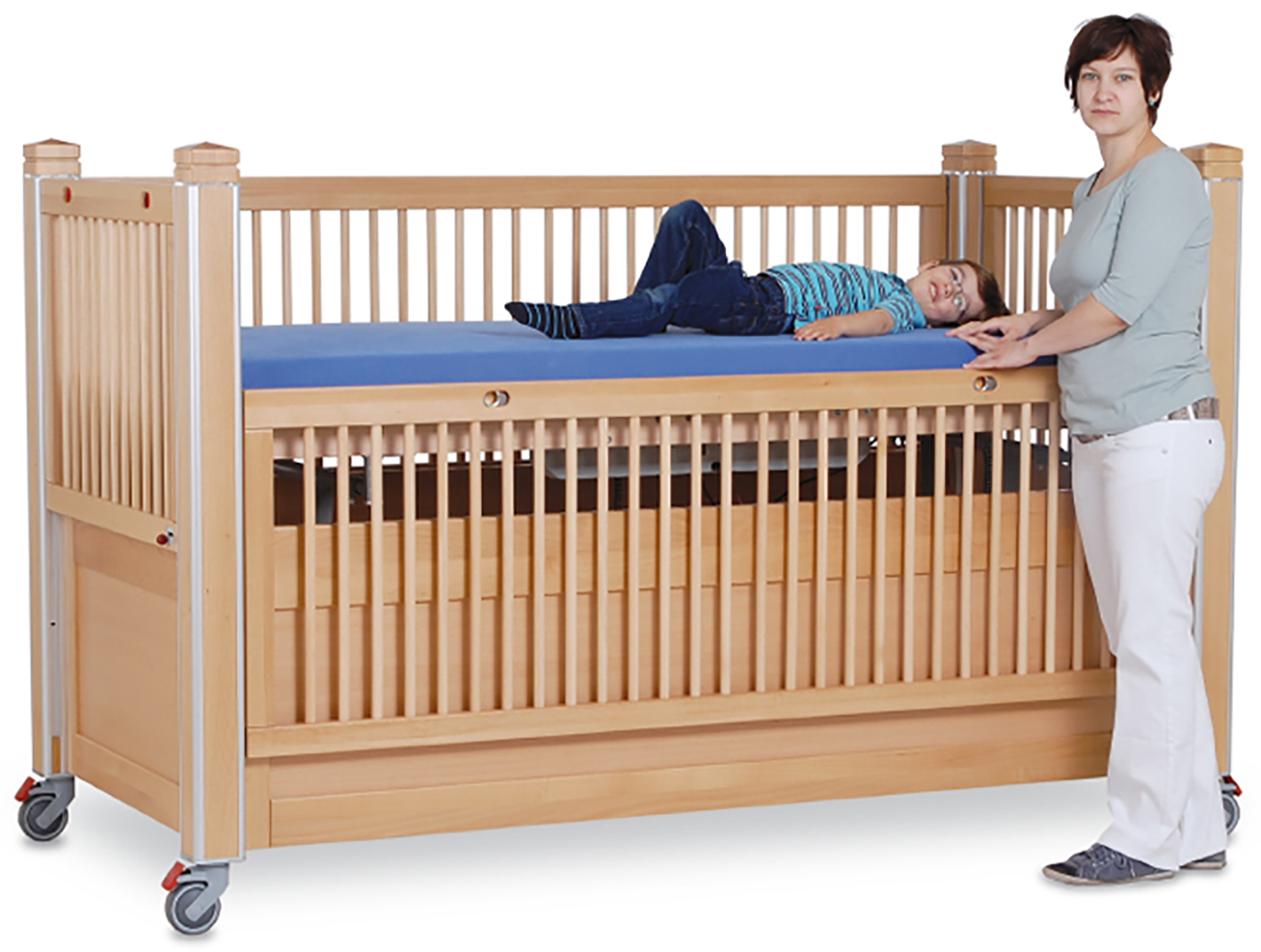

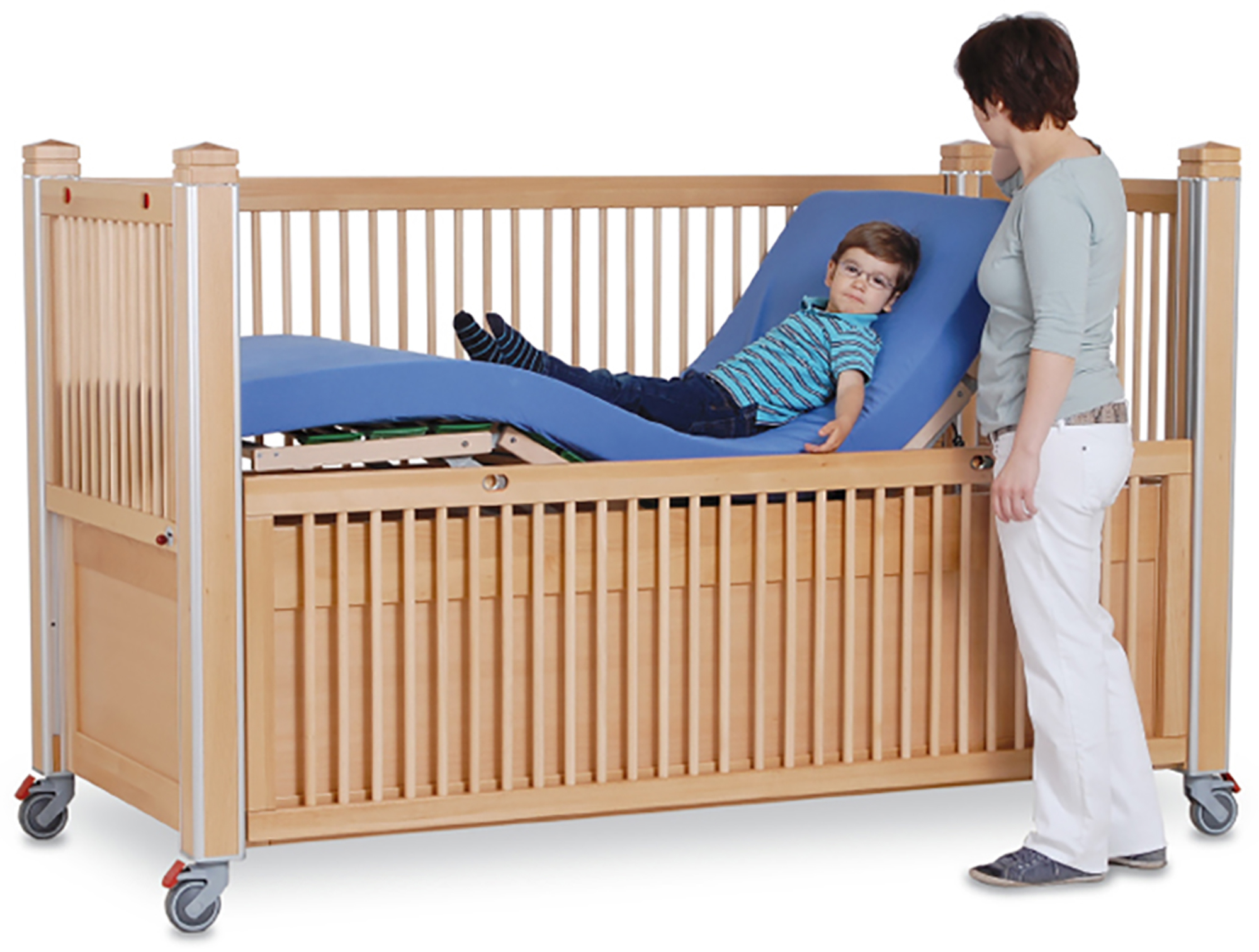

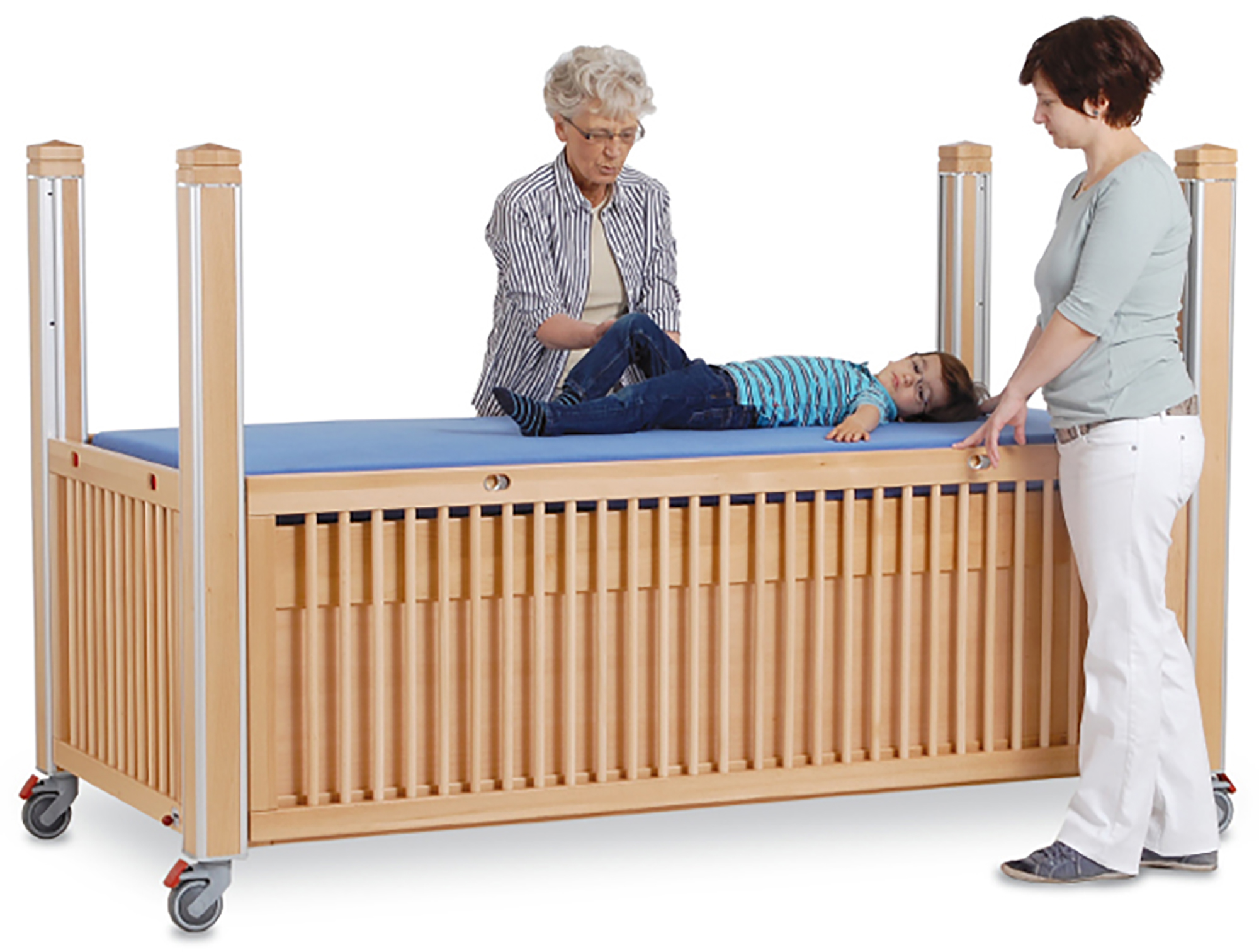

Timmy 1 Easy lift Natural with 1 or 2 lattices
Timmy 1 Easy Lift Natural comes in Natural and colour. The bed size is 170/90 cm and 200/900 cm and is available with 1 or 2 lattices. On Timmy 1 Rail height is 65 cm. and Timmy 2 43 cm rail height. All four side rails can be lowered to several positions. Comes with 4 wheels.
Classification
18 12 10 30 - Adjustable beds, 4-sectioned mattress support platform, electrically operated
Documents
BrochureThe product series contains 4 products.
Product 1 of 4
Timmy 1 Easy lift 170/90 cm Natural 2 lattices
HMI-no.
107054
Article-no.
14120250
Registration date
20-11-2017
Last updated
02-10-2024
Properties
Ingress protection class for water
IPX4
0-9 (IPX0-IPX9) according to the standard for degrees of protection provided by enclosures (IEC 60529)
Properties
Adjustment of the height of mattress support platform
Elektrisk
Intended for children
Yes
Products for children must comply with the specific demands for safety as stated in certain standards. It is the supplier of the product who has stated that the product is intended for children. The National Board of Social Services holds no responsibility in relation to this assessment.
Bed extension
No
Bed extension, follows the movements of the mattress support platform
No
Intended for use in hospitals
No
Intended for use in nursing institutions
No
Intended for long-term care in a medical area where medical supervision is required and monitoring is provided if necessary, e.g. nursing homes and rehabilitation and geriatic facilities.
Intended for use in a domestic area
Yes
Machine washable
No
Machine washable at least 50 times according to EN 50637:2017 and EN 60601-2-52:2010/A1:2015.
Central braking system
No
Back rest section, electrical adjustment
Yes
Leg section, electrical adjustment
Yes
Upper leg section, electrical adjustment
Yes
Separate adjustment of back rest
Yes
Indicates whether the back rest can be adjusted independently of other parts of the mattress support platform
Combined adjustment of mattress support platform
Yes
Indicates whether back rest and knee bending can be adjusted with one control button
Removable bed-rails
No
Removable self-lifting rail
Yes
Removable foot board
No
Removable head board
No
Heigh cot sides
Yes
Intended to prevent a person (usually a child) in getting out of the bed.
Adjustable head support section
No
Trendelenburg, manual operation
No
Trendelenburg, electrical operation
No
Anti-trendelenburg, manual operation
No
Anti-trendelenburg, electrical operation
No
Measures
Outside measure length
188
cm
Measured without any bed extension
Outside measure width
107
cm
Measured including non-detachable accessories
Mattress size, length
170
cm
Mattress size, width
90
cm
Load, max
135
kg
Maximum external load on the product that is permitted in normal use
User weight, max
135
kg
Weight of heaviest main part
615
kg
Weight of heaviest part when disassembled without the use of tools.
Mattress support platform, height above floor, min
80
cm
Measured without mattress
Mattress support platform, height above floor, max
120
cm
Measured without mattress
Under bed clearance
13.5
cm
Minimum under bed clearance in the 100 cm middle area measured from the floor with the mattress support platform 40-80 cm above the floor.
Wheel diameter
13.5
cm
Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type
EU product safety regulation
No information about CE-marking
The supplier has not provided any information about CE-marking of the product. Explain CE-marking
Other specifications
Timmy 1 Easy Lift size 170/90 cm. is excellently for children with serious and servere illness and disabilities, such as spasticity of all the limbs. ipc, muscle hypotonia, tetra paresis, persistent vegetative state etc. It is suitable for children who ca
Product 2 of 4
Timmy 1 Easy Lift 170/90 cm. Natural with 1 lattice
HMI-no.
107926
Article-no.
14120150
Registration date
14-12-2017
Last updated
02-10-2024
Properties
Ingress protection class for water
IPX4
0-9 (IPX0-IPX9) according to the standard for degrees of protection provided by enclosures (IEC 60529)
Properties
Adjustment of the height of mattress support platform
Elektrisk
Intended for children
Yes
Products for children must comply with the specific demands for safety as stated in certain standards. It is the supplier of the product who has stated that the product is intended for children. The National Board of Social Services holds no responsibility in relation to this assessment.
Bed extension
No
Bed extension, follows the movements of the mattress support platform
No
Intended for use in hospitals
No
Intended for use in nursing institutions
No
Intended for long-term care in a medical area where medical supervision is required and monitoring is provided if necessary, e.g. nursing homes and rehabilitation and geriatic facilities.
Intended for use in a domestic area
Yes
Machine washable
No
Machine washable at least 50 times according to EN 50637:2017 and EN 60601-2-52:2010/A1:2015.
Central braking system
No
Back rest section, electrical adjustment
Yes
Leg section, electrical adjustment
Yes
Upper leg section, electrical adjustment
Yes
Separate adjustment of back rest
Yes
Indicates whether the back rest can be adjusted independently of other parts of the mattress support platform
Combined adjustment of mattress support platform
Yes
Indicates whether back rest and knee bending can be adjusted with one control button
Removable bed-rails
No
Removable self-lifting rail
Yes
Removable foot board
No
Removable head board
No
Heigh cot sides
Yes
Intended to prevent a person (usually a child) in getting out of the bed.
Adjustable head support section
No
Trendelenburg, manual operation
No
Trendelenburg, electrical operation
No
Anti-trendelenburg, manual operation
No
Anti-trendelenburg, electrical operation
No
Measures
Outside measure length
189
cm
Measured without any bed extension
Outside measure width
106
cm
Measured including non-detachable accessories
Mattress size, length
170
cm
Mattress size, width
90
cm
Load, max
150
kg
Maximum external load on the product that is permitted in normal use
User weight, max
150
kg
Weight of heaviest main part
615
kg
Weight of heaviest part when disassembled without the use of tools.
Mattress support platform, height above floor, min
80
cm
Measured without mattress
Mattress support platform, height above floor, max
120
cm
Measured without mattress
Under bed clearance
13.5
cm
Minimum under bed clearance in the 100 cm middle area measured from the floor with the mattress support platform 40-80 cm above the floor.
Wheel diameter
13.5
cm
Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type
EU product safety regulation
No information about CE-marking
The supplier has not provided any information about CE-marking of the product. Explain CE-marking
Other specifications
This bed is excellently for children with serious and servere illness and disabilities, such as spasticity of all the limbs. ipc, muscle hypotonia, tetra paresis, persistent vegetative state etc. It is suitable for children who cannot sit up on their own.
Product 3 of 4
Timmy 1 Easy lift 200/90 cm Natural 1 lattices
HMI-no.
107055
Article-no.
14140150
Registration date
20-11-2017
Last updated
02-10-2024
Properties
Ingress protection class for water
IPX4
0-9 (IPX0-IPX9) according to the standard for degrees of protection provided by enclosures (IEC 60529)
Properties
Adjustment of the height of mattress support platform
Elektrisk
Intended for children
Yes
Products for children must comply with the specific demands for safety as stated in certain standards. It is the supplier of the product who has stated that the product is intended for children. The National Board of Social Services holds no responsibility in relation to this assessment.
Bed extension
No
Bed extension, follows the movements of the mattress support platform
No
Intended for use in hospitals
No
Intended for use in nursing institutions
No
Intended for long-term care in a medical area where medical supervision is required and monitoring is provided if necessary, e.g. nursing homes and rehabilitation and geriatic facilities.
Intended for use in a domestic area
Yes
Machine washable
No
Machine washable at least 50 times according to EN 50637:2017 and EN 60601-2-52:2010/A1:2015.
Central braking system
No
Back rest section, electrical adjustment
Yes
Leg section, electrical adjustment
No
Upper leg section, electrical adjustment
No
Separate adjustment of back rest
Yes
Indicates whether the back rest can be adjusted independently of other parts of the mattress support platform
Combined adjustment of mattress support platform
Yes
Indicates whether back rest and knee bending can be adjusted with one control button
Removable bed-rails
No
Removable self-lifting rail
Yes
Removable foot board
No
Removable head board
No
Heigh cot sides
Yes
Intended to prevent a person (usually a child) in getting out of the bed.
Adjustable head support section
No
Trendelenburg, manual operation
No
Trendelenburg, electrical operation
No
Anti-trendelenburg, manual operation
No
Anti-trendelenburg, electrical operation
No
Measures
Outside measure length
218
cm
Measured without any bed extension
Outside measure width
107
cm
Measured including non-detachable accessories
Mattress size, length
200
cm
Mattress size, width
90
cm
Load, max
170
kg
Maximum external load on the product that is permitted in normal use
User weight, max
135
kg
Weight of heaviest main part
615
kg
Weight of heaviest part when disassembled without the use of tools.
Mattress support platform, height above floor, min
80
cm
Measured without mattress
Mattress support platform, height above floor, max
120
cm
Measured without mattress
Under bed clearance
13.5
cm
Minimum under bed clearance in the 100 cm middle area measured from the floor with the mattress support platform 40-80 cm above the floor.
Wheel diameter
13.5
cm
Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type
EU product safety regulation
No information about CE-marking
The supplier has not provided any information about CE-marking of the product. Explain CE-marking
Other specifications
Timmy 1 Easy Lift is excellently for children with serious and servere illness and disabilities, such as spasticity of all the limbs. ipc, muscle hypotonia, tetra paresis, persistent vegetative state etc. It is suitable for children who cannot sit up on t
Product 4 of 4
Timmy 1 Easy Lift 200/90 cm. Natural with 2 lattices
HMI-no.
107927
Article-no.
14140250
Registration date
14-12-2017
Last updated
02-10-2024
Properties
Ingress protection class for water
IPX4
0-9 (IPX0-IPX9) according to the standard for degrees of protection provided by enclosures (IEC 60529)
Properties
Adjustment of the height of mattress support platform
Elektrisk
Bed extension
No
Bed extension, follows the movements of the mattress support platform
No
Intended for use in hospitals
No
Intended for use in nursing institutions
No
Intended for long-term care in a medical area where medical supervision is required and monitoring is provided if necessary, e.g. nursing homes and rehabilitation and geriatic facilities.
Intended for use in a domestic area
Yes
Machine washable
No
Machine washable at least 50 times according to EN 50637:2017 and EN 60601-2-52:2010/A1:2015.
Central braking system
No
Back rest section, electrical adjustment
Yes
Leg section, electrical adjustment
Yes
Upper leg section, electrical adjustment
Yes
Separate adjustment of back rest
Yes
Indicates whether the back rest can be adjusted independently of other parts of the mattress support platform
Combined adjustment of mattress support platform
No
Indicates whether back rest and knee bending can be adjusted with one control button
Removable bed-rails
No
Removable self-lifting rail
No
Removable foot board
No
Removable head board
No
Heigh cot sides
Yes
Intended to prevent a person (usually a child) in getting out of the bed.
Adjustable head support section
No
Trendelenburg, manual operation
No
Trendelenburg, electrical operation
No
Anti-trendelenburg, manual operation
No
Anti-trendelenburg, electrical operation
No
Measures
Outside measure length
219
cm
Measured without any bed extension
Outside measure width
106
cm
Measured including non-detachable accessories
Mattress size, length
200
cm
Mattress size, width
90
cm
Load, max
135
kg
Maximum external load on the product that is permitted in normal use
User weight, max
135
kg
Mattress support platform, height above floor, min
80
cm
Measured without mattress
Mattress support platform, height above floor, max
120
cm
Measured without mattress
Under bed clearance
13.5
cm
Minimum under bed clearance in the 100 cm middle area measured from the floor with the mattress support platform 40-80 cm above the floor.
Wheel diameter
13.5
cm
Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type
EU product safety regulation
No information about CE-marking
The supplier has not provided any information about CE-marking of the product. Explain CE-marking
Other specifications
Timmy 1 Easy Lift is excellent for children with serious illness and disability, such as spasticity of all limbs. ipc, muscle hypotension, tetraparesis, etc. Suitable for children who can not sit.
Comes with KM3 foam mattress and KR5 sleeping platform.
Comes with KM3 foam mattress and KR5 sleeping platform.
