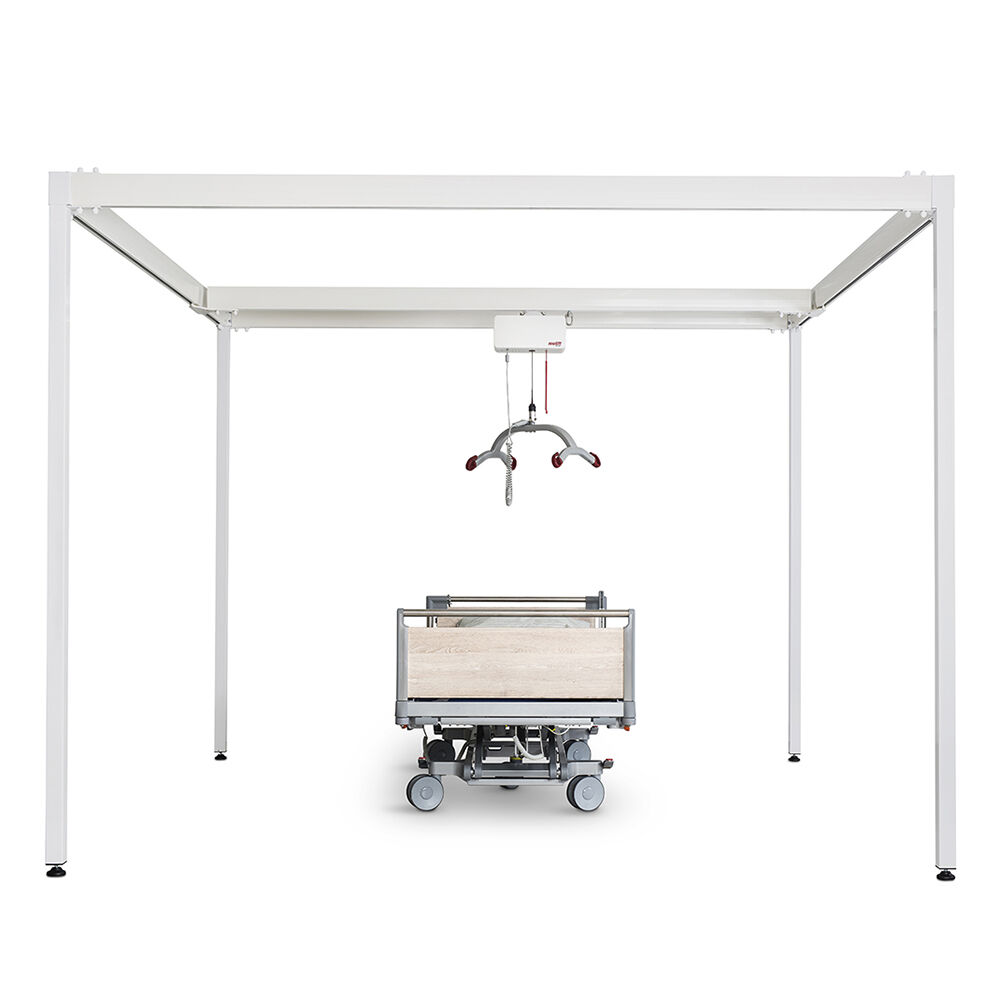

Molift Quattro, a freestanding traverse gantry for ceiling hoists
Molift Quattro is a freestanding hoist unit that offers a four post traverse system which is the best solution for temporary hoisting needs or when the facility is not built for fixed installations. The gantry is easy to install without the need to mount additional fixtures on walls or ceilings. Ideally for nursing or private homes.
Classification
12 36 18 03 - Stationary free-standing hoists
Documents
BrochureThe product series contains 2 products.
Product 1 of 2
Molift Quattro 3
HMI-no.
109225
Article-no.
1600030
Registration date
12-04-2018
Last updated
21-11-2023
Properties
Ingress protection class for water
IPX4
0-9 (IPX0-IPX9) according to the standard for degrees of protection provided by enclosures (IEC 60529)
Electrical lifting mechanism
Yes
Electrical horizontal movement
No
Room covering rail system
Yes
External battery charger
Yes
Charging station at track
No
Charging liner
No
Emergency lowering function, electrically operated
Yes
Emergency lowering function, manually operated
Yes
Measures
User weight, max
300
kg
Max lifting velocity, loaded
0.05
m/s
Max length of rail
300
cm
Min. length of rail
300
cm
Max height to top of rail
243
cm
Min. height to top of rail
233
cm
Weight of lifting machinery
7.5
kg
Maintenance frequency
12
måneder
Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type
EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device
Product 2 of 2
Molift Quattro 4
HMI-no.
109226
Article-no.
1600035
Registration date
12-04-2018
Last updated
21-11-2023
Properties
Ingress protection class for water
IPX4
0-9 (IPX0-IPX9) according to the standard for degrees of protection provided by enclosures (IEC 60529)
Electrical lifting mechanism
Yes
Electrical horizontal movement
No
Room covering rail system
Yes
External battery charger
Yes
Charging station at track
No
Charging liner
No
Emergency lowering function, electrically operated
Yes
Emergency lowering function, manually operated
Yes
Measures
User weight, max
300
kg
Max lifting velocity, loaded
0.05
m/s
Max length of rail
400
cm
Min. length of rail
400
cm
Max height to top of rail
246
cm
Min. height to top of rail
233
cm
Weight of lifting machinery
7.5
kg
Maintenance frequency
12
måneder
Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type
EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device
