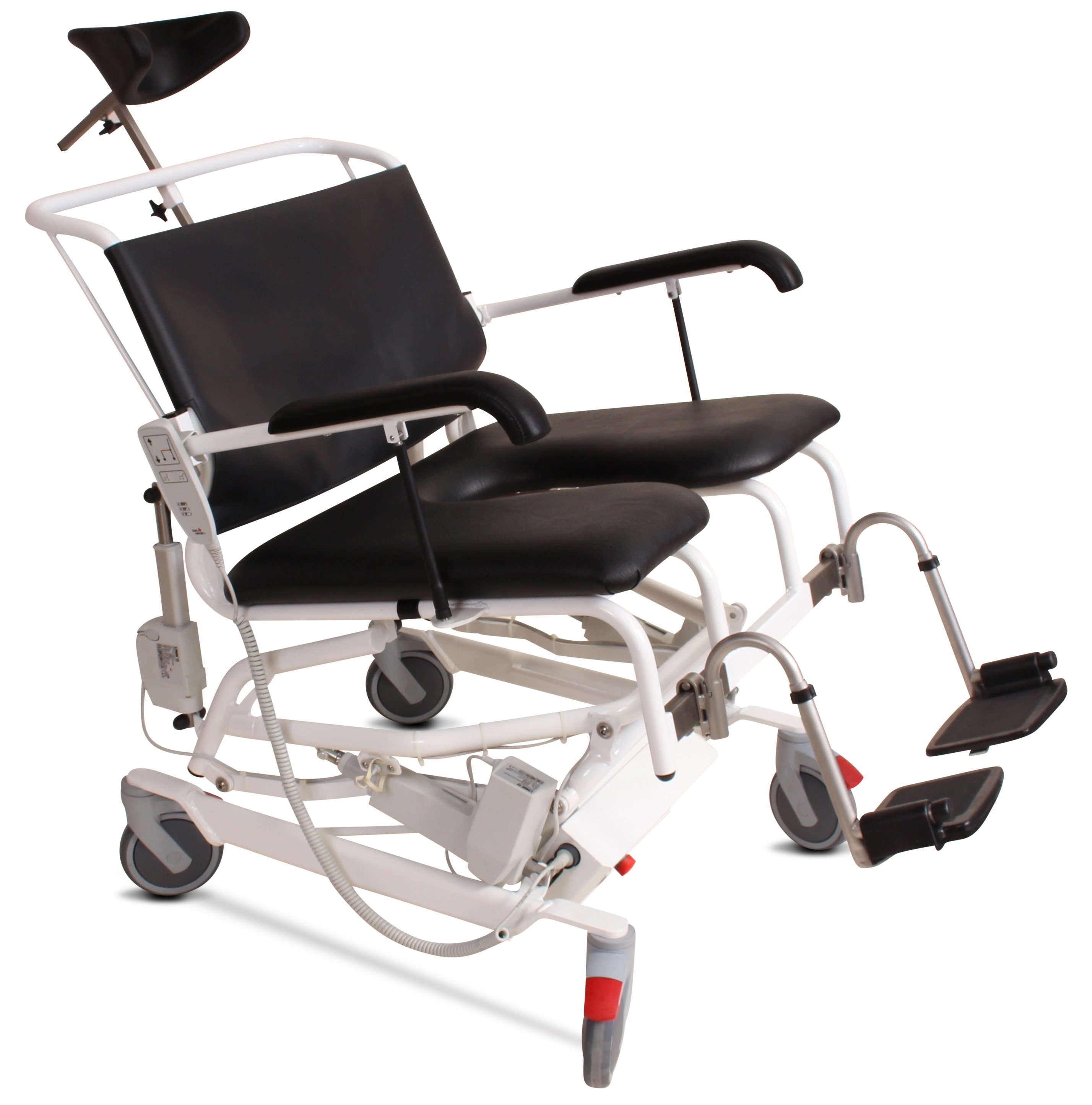

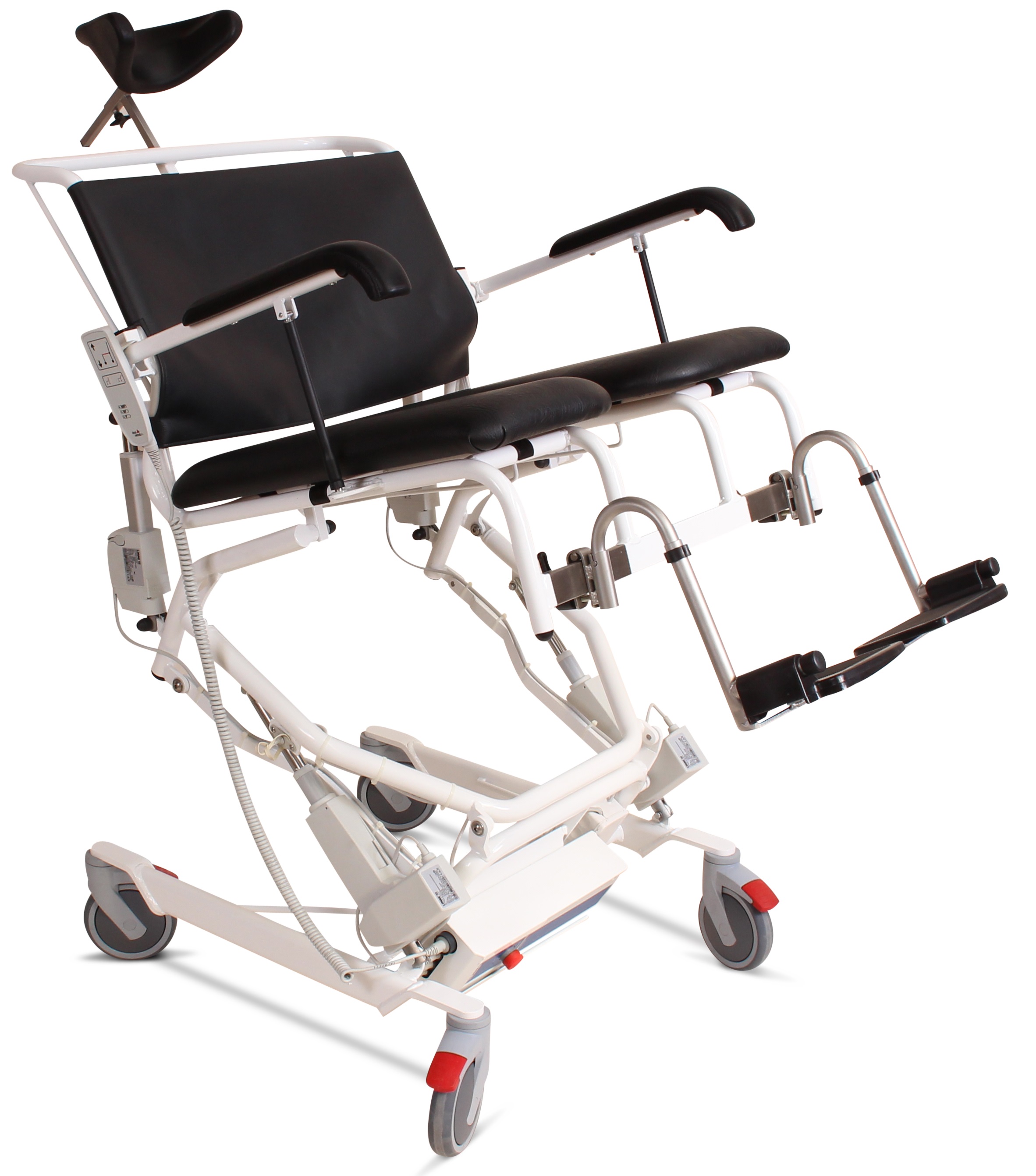

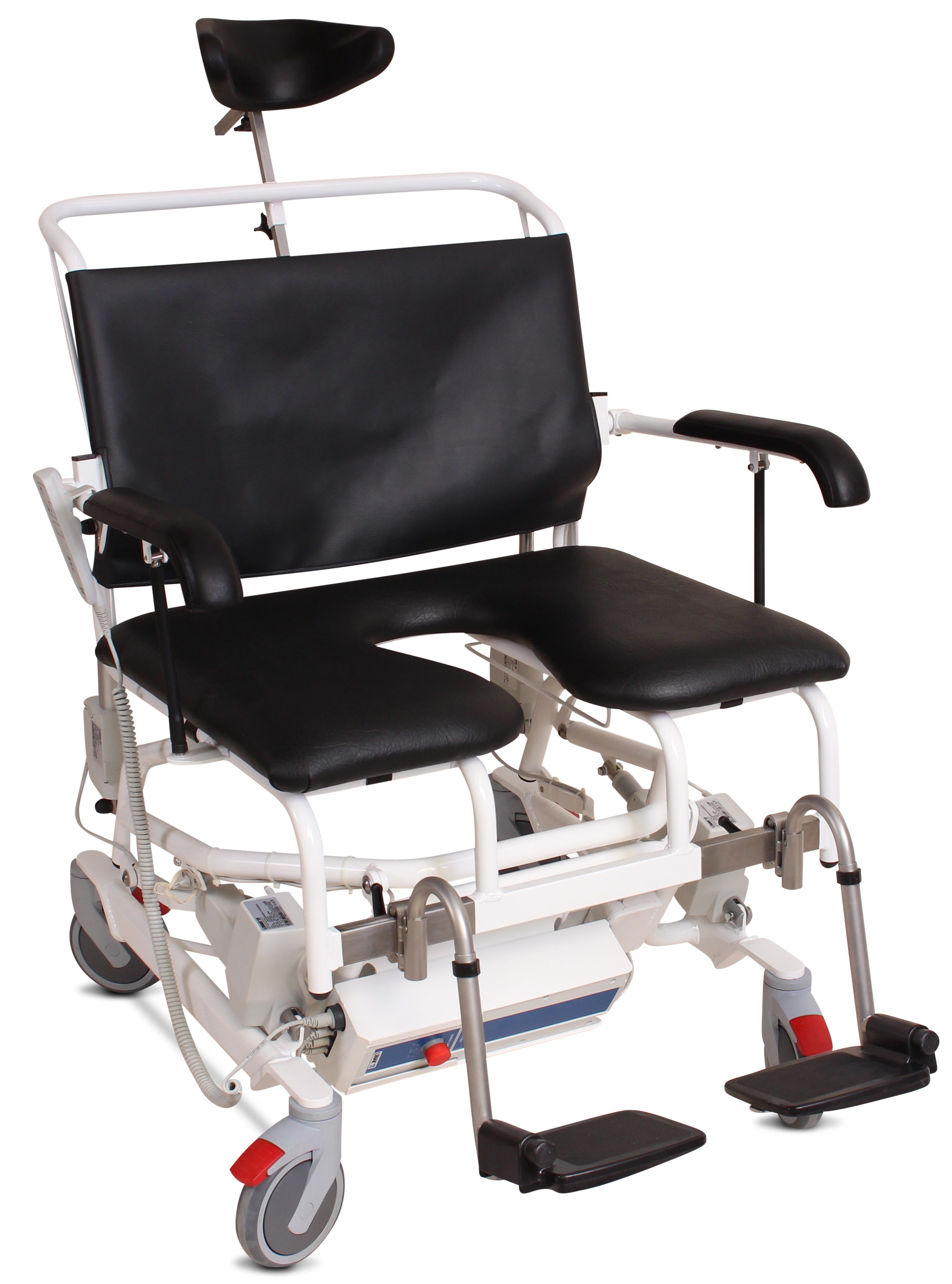

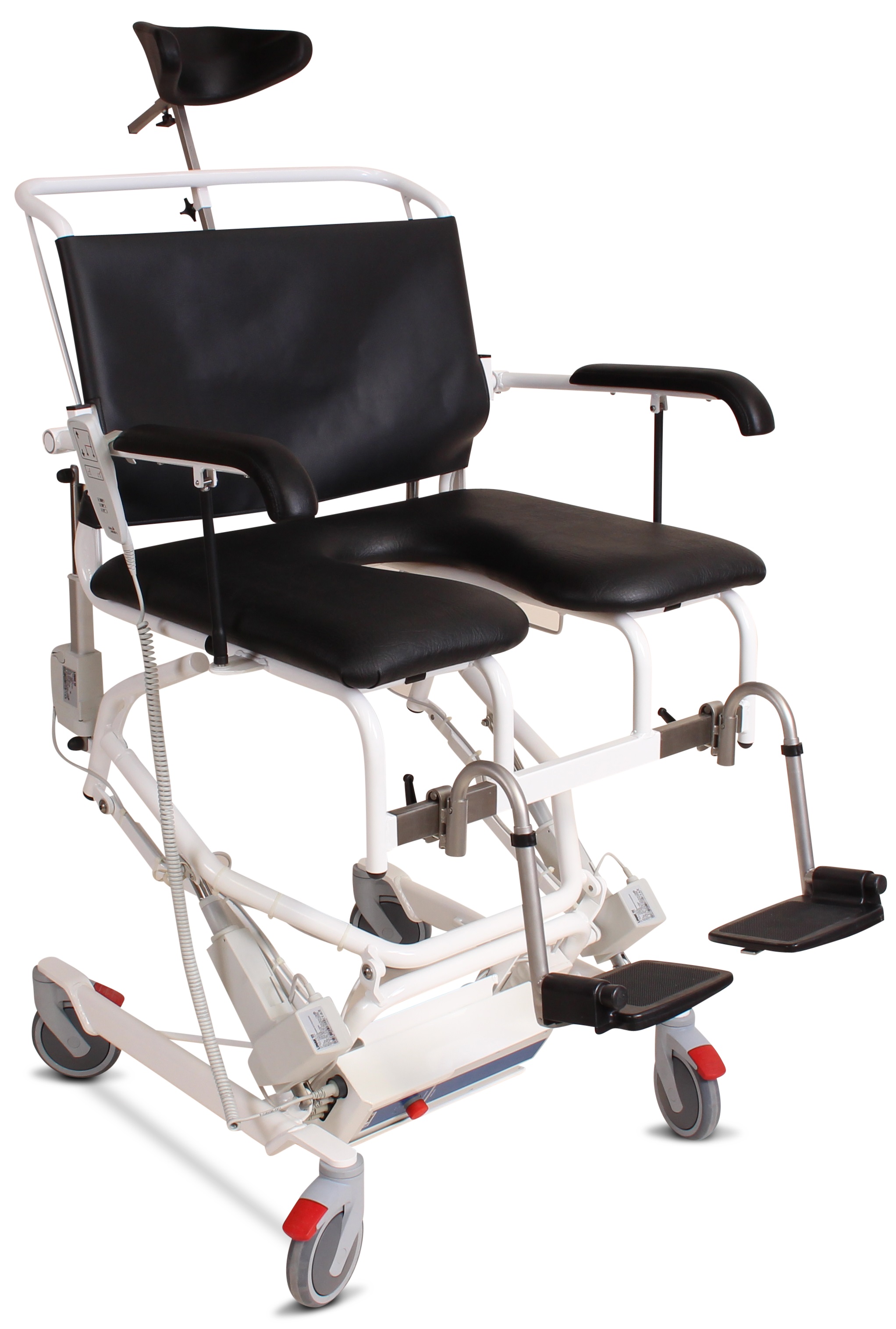

ERGOtip 11 EL Toilet-badestol m/ el-kip og el-hejs, bariatrisk



ERGOtip-serien har markedets største udvalg af kipbare toilet-/ badestole med el-hejs. Armlæn m. PUR-pude (alm. el. skålformet). Aftageligt sæde. Åben eller lukket sædefront. Indstillelig læg- og rygstøtte. Fire 150 mm bremsehjul. Samt et MEGET stort tilbehørsprogram. Til bariatriske borgere.

Classification
09 12 03 11 - Commode shower chairs with wheels, tilt and electrical functions



The product series contains 1 product.

Product 1 of 1
ERGOtip 11 EL Commode & Shower Chair, reclining, BARIATRIC


HMI-no.
109635
Article-no.
109635

Registration date
03-05-2018
Last updated
11-09-2025

Properties
Height adjustable
Elektrisk
Tension adjustable back rest upholstery
Yes
Can be used with standard wall-mounted toilets (without extension)
No
Possibility to change position of armrest to allow sideways transfer
Yes
Powered tilt
Yes
Tilt-in-space dissociated from the height adjustment
Yes
The function of the tilt-in-space is separated from the hydraulic or electrical function of the height adjustment.
Head support
Yes
Battery chargeable separated from the product
Yes
Emergency stopping function
Yes
Fold-up foot supports
Yes
Height adjustable legrests
Yes
Elevating legrests
Yes
Legrest position may be changed to facililtate hygiene and transfer
Yes

Measures
User weight, max
275
kg
Total width
85
cm
Ground clearance
48
cm
Measured from the floor to the lowest point under the seat. Measured without bedpan/collection receptacle.
Width between arm supports
73
cm
Smallest distance measured between the inside of the arm supports. If the arm supports are adjustable, this is measured with the arm supports in the widest position.
Seat depth
47
cm
If the seat depth is adjustable, this is the maximum seat depth
Wheel diameter
150
mm
Number of wheels with brake
4
Seat height, min
57
cm
Seat height, max
101
cm
Tilt-in-space forward
5
°
Measured from the horizontal position.
Tilt-in-space back
25
°
Measured from the horizontal position.
Height of push handles/push bar, min.
109.5
cm
Measured from the floor to the upper surface of the grip. According to ISO 17966:2016 it shall be possible to push the chair with the grip 90 cm above the floor.
Height of push handles/push bar, max.
149
cm
Measured from the floor to the upper surface of the heigher grip with the chair in the highest position
Ingress protection class for water
6
IP
0-9 (IPX0-IPX9) according to the standard for degrees of protection provided by enclosures (IEC 60529)

Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type

EU product safety regulation
No information about CE-marking
The supplier has not provided any information about CE-marking of the product. Explain CE-marking

Other specifications
ERGOtip 7 EL has three actuators for heavy duty height adjustment and tilting. Infinite height adjustm. ensures good communication between patient and helper - neither looks up to or down upon the other. Detachable seat w. open or closed front. For BARIAT
