Carmina bariatric hygine chair



Specially designed for assisted showering, toileting and hygiene care for bariatric patients and residents.
Adjustable footrest and wide arm rests provide comfortable support during transfer and showering. Adjustable backrest with four different seating depths provides extra support for individual needs and allows integration with most toilets.

Classification
09 12 03 07 - Commode shower chairs with castors, not height adjustable

Documents
Brochure
User manual
QuickGuide


The product series contains 2 products.

» Summarize specifications

Product 1 of 2
Carmina basic


HMI-no.
110356
Article-no.
BLB1000-013

Registration date
05-07-2018
Last updated
11-09-2025

Properties
Tension adjustable back rest upholstery
No

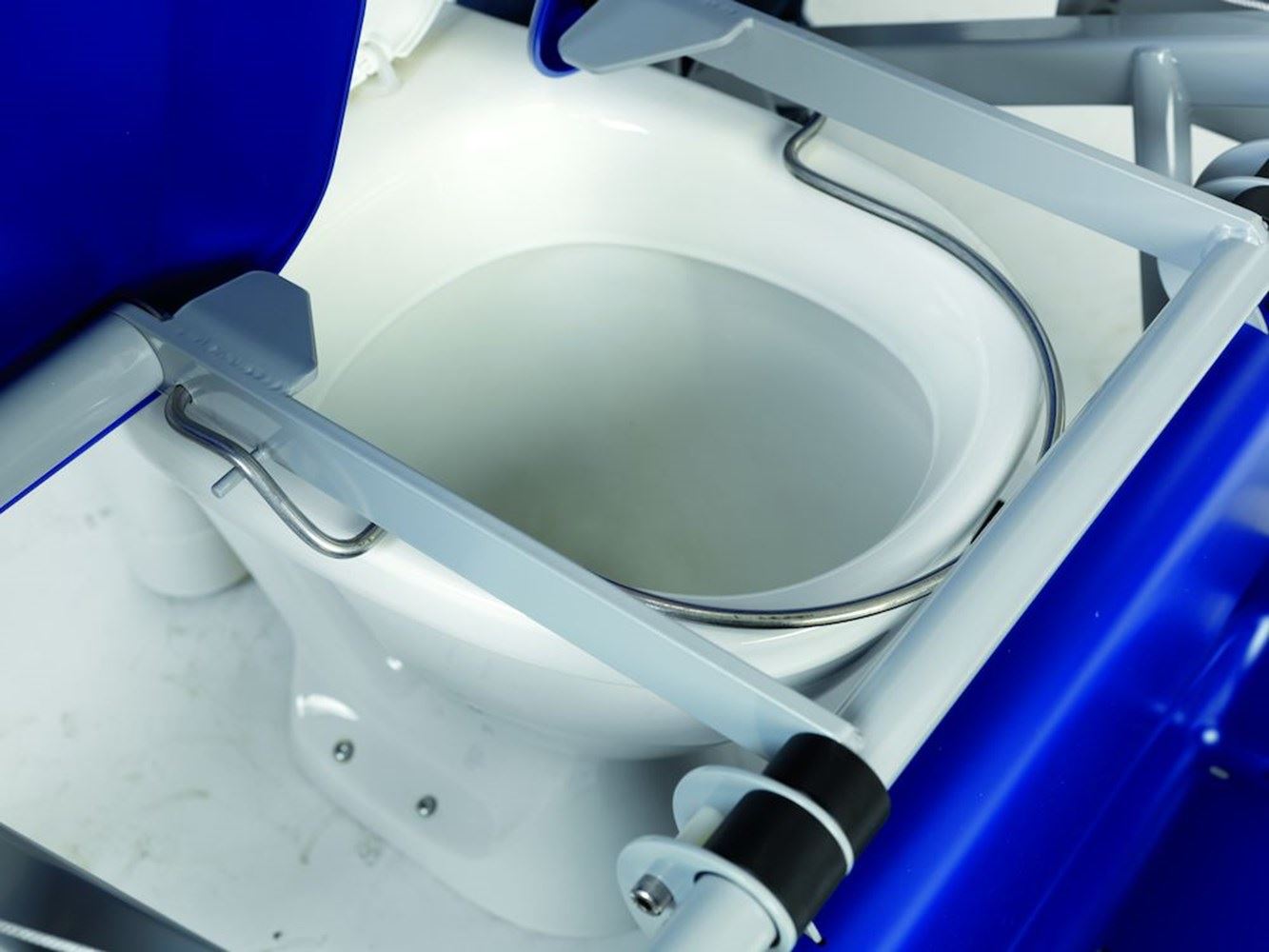

Can be used with standard wall-mounted toilets (without extension)
Yes
Possibility to change position of armrest to allow sideways transfer
Yes
Fold-up foot supports
No
Height adjustable legrests
No
Elevating legrests
No
Legrest position may be changed to facililtate hygiene and transfer
No

Measures
User weight, max
320
kg
Total width
98
cm
Ground clearance
48
cm
Measured from the floor to the lowest point under the seat. Measured without bedpan/collection receptacle.
Width between arm supports
91.5
cm
Smallest distance measured between the inside of the arm supports. If the arm supports are adjustable, this is measured with the arm supports in the widest position.
Seat depth
42
cm
If the seat depth is adjustable, this is the maximum seat depth
Seat height
53
cm
Wheel diameter
100
mm
Number of wheels with brake
4
Height of push handles/push bar, min.
126.5
cm
Measured from the floor to the upper surface of the grip. According to ISO 17966:2016 it shall be possible to push the chair with the grip 90 cm above the floor.
Height of push handles/push bar, max.
126.5
cm
Measured from the floor to the upper surface of the heigher grip with the chair in the highest position

Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type

EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device

Product 2 of 2
Carmina with large footrest


HMI-no.
110357
Article-no.
BLB2000-013

Registration date
05-07-2018
Last updated
11-09-2025

Properties
Tension adjustable back rest upholstery
No
Can be used with standard wall-mounted toilets (without extension)
Yes
Possibility to change position of armrest to allow sideways transfer
Yes
Fold-up foot supports
Yes
Height adjustable legrests
No
Elevating legrests
No
Legrest position may be changed to facililtate hygiene and transfer
Yes

Measures
User weight, max
320
kg
Total width
99.7
cm
Ground clearance
44
cm
Measured from the floor to the lowest point under the seat. Measured without bedpan/collection receptacle.
Width between arm supports
91.5
cm
Smallest distance measured between the inside of the arm supports. If the arm supports are adjustable, this is measured with the arm supports in the widest position.
Seat depth
52.5
cm
If the seat depth is adjustable, this is the maximum seat depth
Seat height
46.5
cm
Wheel diameter
100
mm
Number of wheels with brake
4
Height of push handles/push bar, min.
126.5
cm
Measured from the floor to the upper surface of the grip. According to ISO 17966:2016 it shall be possible to push the chair with the grip 90 cm above the floor.
Height of push handles/push bar, max.
126.5
cm
Measured from the floor to the upper surface of the heigher grip with the chair in the highest position

Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type

EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device

Other specifications
Footrest acts like a brake when resting on the floor. Provides extra stability for the mobile patient or resident. An elevated footrest position provides a comfortable sitting position, lift access, and enables safe transportation.
