Invacare ISA
Classification
12 36 04 01 - Mobile hoists for transferring a person in standing position
Documents
BrochureThe product series contains 1 product.
Product 1 of 1

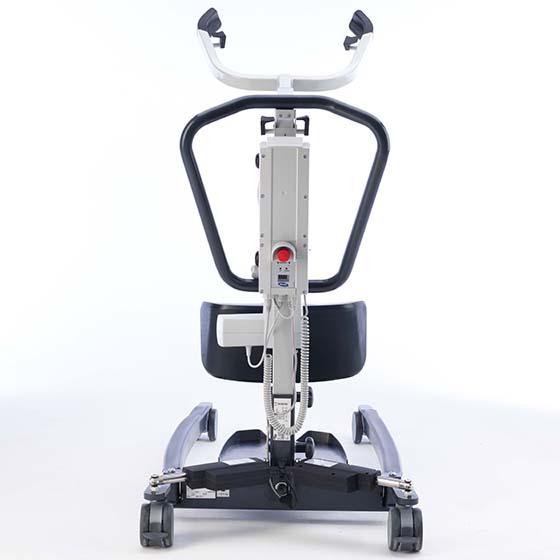

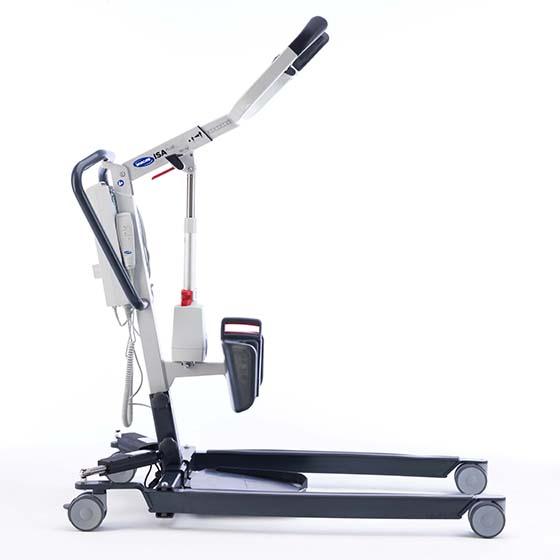

Invacare ISA
HMI-no.
111260
Article-no.
1656034
Registration date
20-09-2018
Last updated
17-10-2024
Properties
Ingress protection class for water
IPX4
0-9 (IPX0-IPX9) according to the standard for degrees of protection provided by enclosures (IEC 60529)
Properties
Width adjustment of base
Ja, elektrisk
Properties
Width adjustable movement
V-formet
Electrical lifting mechanism
Yes
Leg support adjustable in height
Yes
Leg support horizontal adjustable
Yes
Leg support adjustable without tools
Yes
Split leg support
No
Foldable
Yes
Can be disassembled without tools
Yes
Integrated battery charger
Yes
Emergency lowering function
Yes
Unit for use with sling(s) available
Yes
Measures
User weight, max
180
kg
Lifting height, max
180
cm
Internal width of base, max
49
cm
External width of base in the most narrow position
64
cm
Height of base at front
11
cm
Turning diameter
140
cm
Diameter of the narrowest circle encompassing the extreme points of the hoist, when it is turned 360 degrees without beeing reversed.
Weight of heaviest main part
21
kg
Maintenance frequency
12
måneder
Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type
EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked according to other specific regulations/directives (e.g. machinery, construction products, low voltage)
CE marked as medical device
CE marked as medical device
