Ramp for electric wheelchairs

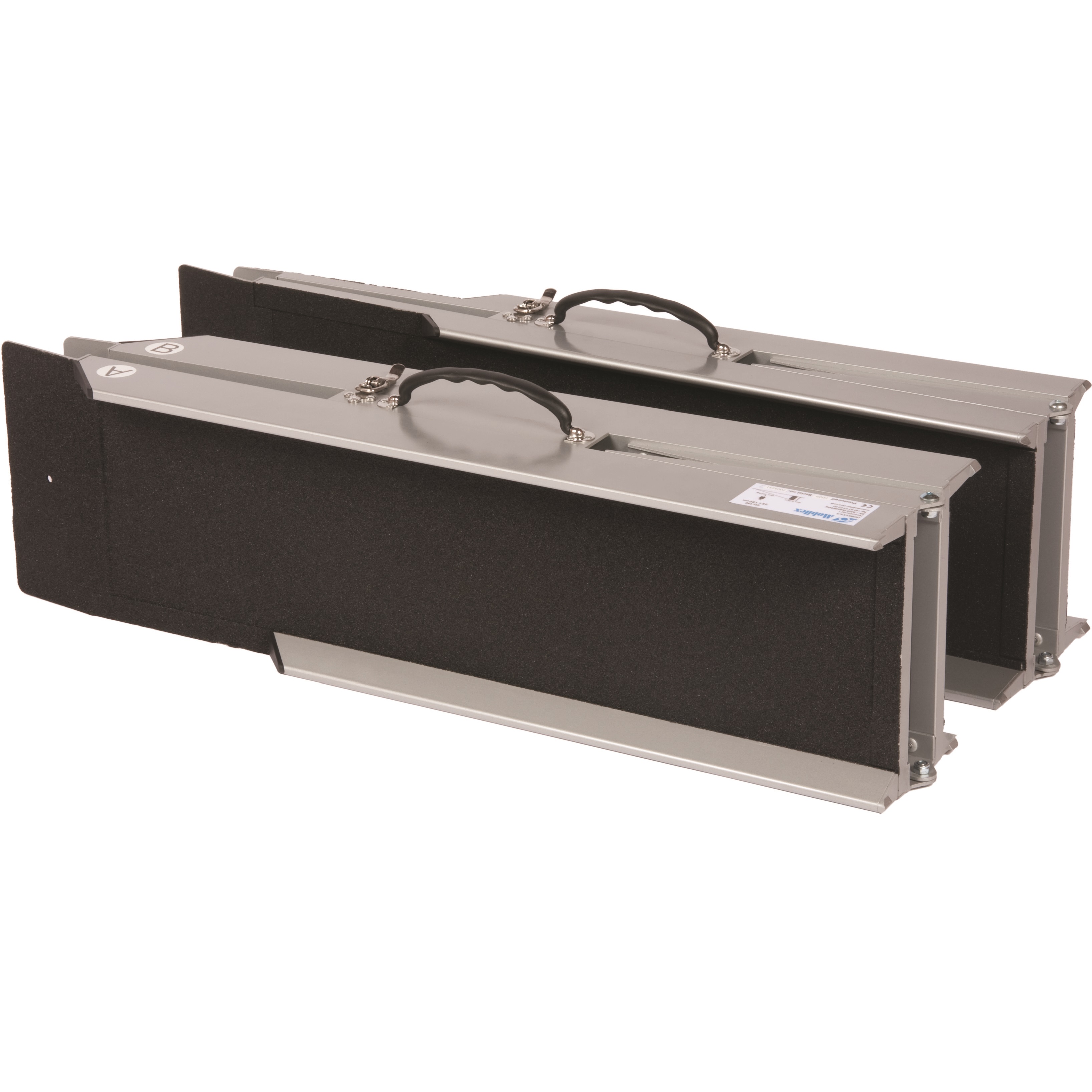

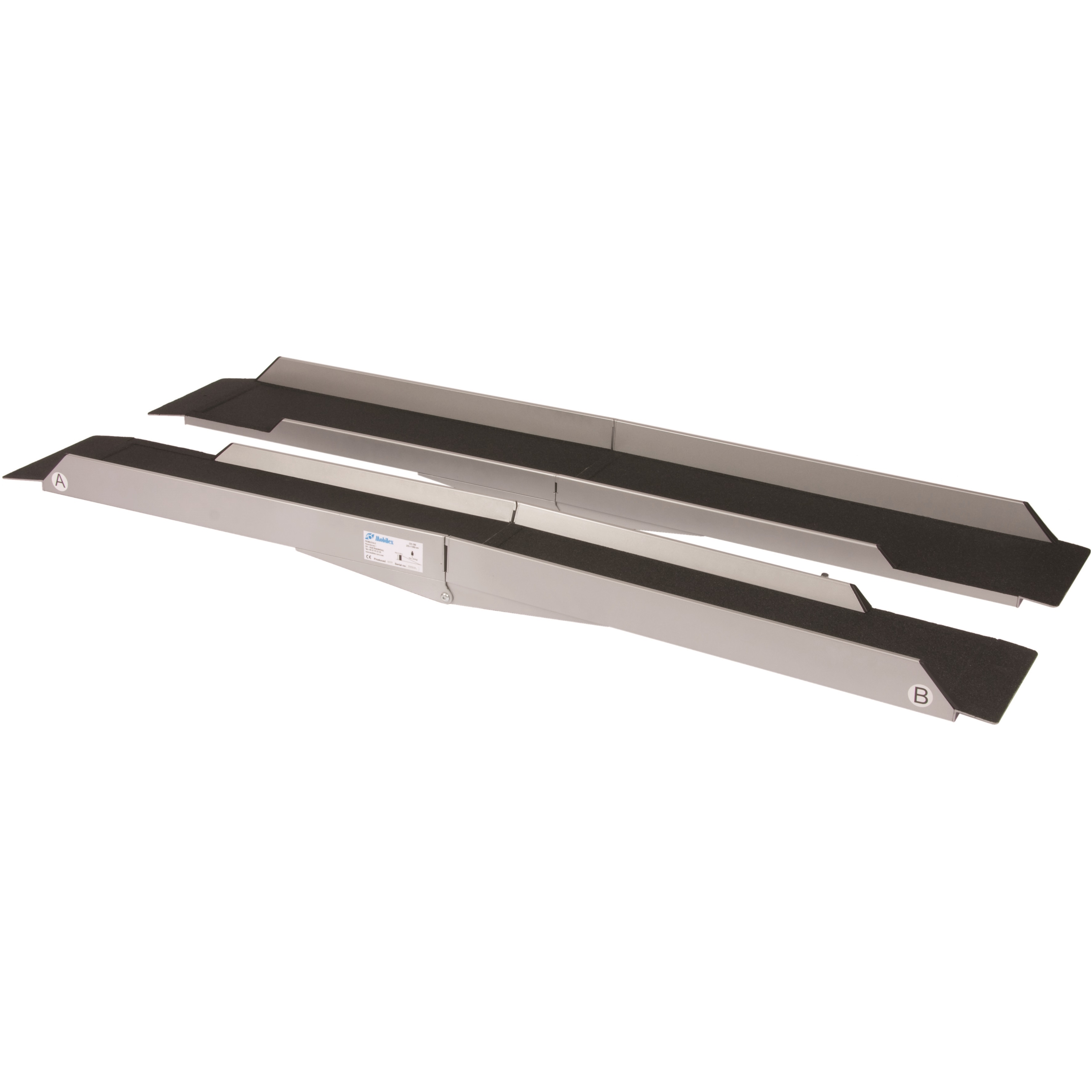

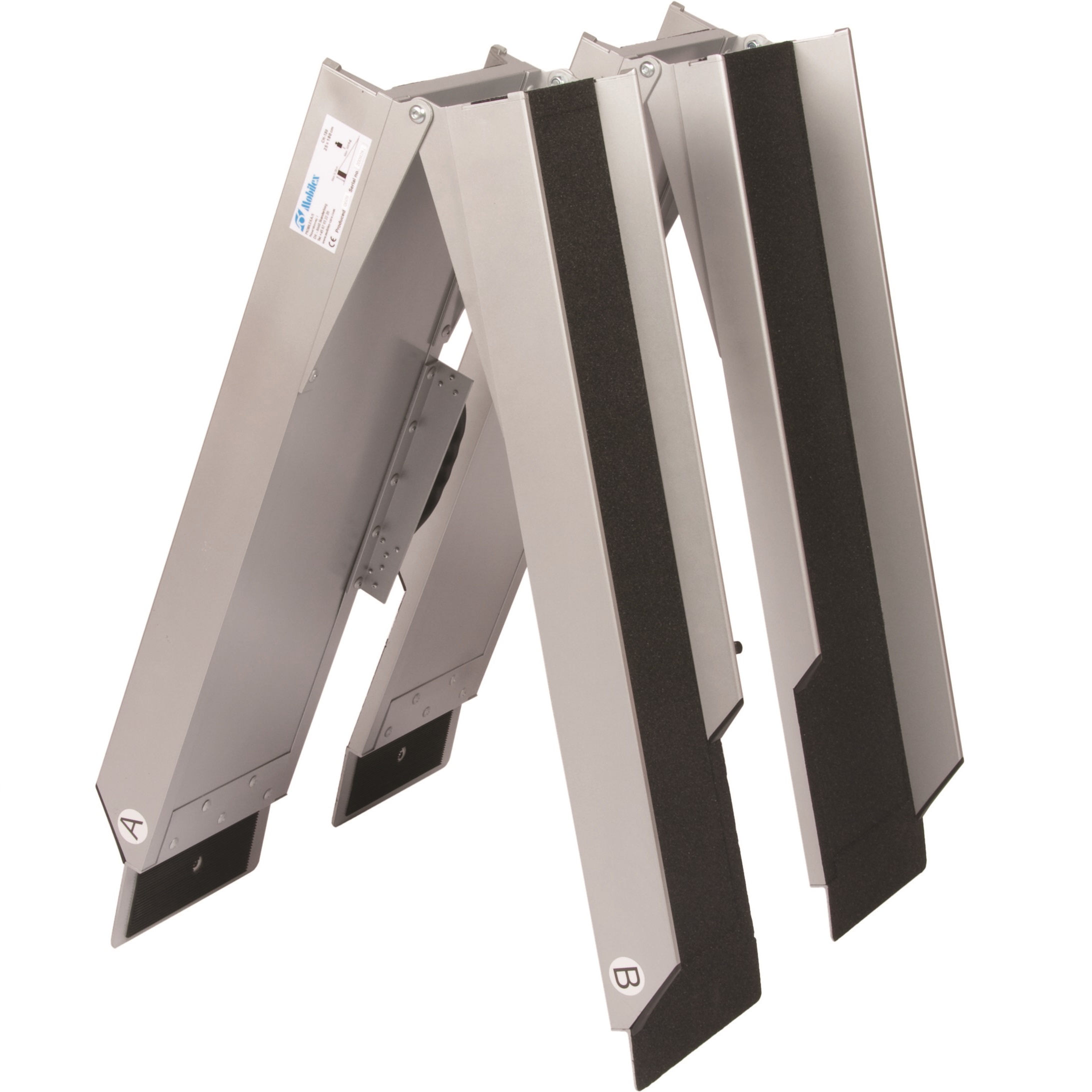

Ramp that is used in pairs, specially made for electric wheelchair. The ramps fold on the middle, so that it takes up very little space during transportation. The ramps are extra wide in order to make space for the electric wheelchair.
Classification
18 30 15 08 - Track ramps
Documents
The product series contains 1 product.
Product 1 of 1
Ramp for electric wheelchairs with extra wide drive tracks
HMI-no.
Article-no.
CH-180
Registration date
16-11-2018
Last updated
26-11-2023
Properties
Foldable
Yes
Length adjustable
No
Non-slip surface
Yes
Indoor use
Yes
Outdoor use
Yes
Lip, top
Yes
Lip, bottom
Yes
Carrying handle
Yes
Measures
Load, max
300
kg
For both track ramps and ramps please state the allowed load pr. item.
Weight
6.5
kg
Weight per track
Actual length in use, min
180
cm
The minimum length in use of the track excluding lips
Actual length in use, max
180
cm
The maximum length in use of the track excluding lips
Transportation length
95
cm
Transportation width
23.5
cm
Internal width
21
cm
External width
23.5
cm
Guardrail height
6
cm
Test information ![info](/en/img/i.svg)
Though the product is testet, it might not have passed all requirements in the standard. Besides, some products are only tested according to parts of the standard. Read the test report for detailed information. See also other standards that could be relevant for this product type.
EN 12182:1999: Technical aids for disabled persons - General requirements and test methods.
Test lab: CERT, Berlin. Test date: 18-08-2004
Test report for HMI-no. 37655
Test lab: CERT, Berlin. Test date: 18-08-2004
EU product safety regulation
No information about CE-marking ![info](/en/img/i.svg)
The supplier has not provided any information about CE-marking of the product. Explain CE-marking
