PEARLS - AIR Fluidised Care System




Classification
18 12 10 37 - Special beds

Documents
Brochure


The product series contains 1 product.

Product 1 of 1

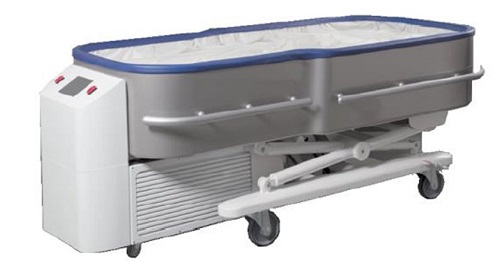

PEARLS - Air Fluidised Care System


HMI-no.
114373
Article-no.
2010001

Registration date
29-01-2019
Last updated
11-09-2025

Properties
Number of sections of mattress support platform, transversely
2

Properties
Adjustment of the height of mattress support platform
Elektrisk
Bed extension
No
Bed extension, follows the movements of the mattress support platform
No
Intended for use in hospitals
Yes
Intended for use in nursing institutions
No
Intended for long-term care in a medical area where medical supervision is required and monitoring is provided if necessary, e.g. nursing homes and rehabilitation and geriatic facilities.
Intended for use in a domestic area
No
Machine washable
No
Machine washable at least 50 times according to EN 50637:2017 and EN 60601-2-52:2010/A1:2015.
Central braking system
Yes
Back rest section, electrical adjustment
No
Leg section, electrical adjustment
No
Upper leg section, electrical adjustment
No
Height adjustment, electrical
Yes
Separate adjustment of back rest
Yes
Indicates whether the backrest can be adjusted independent of other parts of the mattress support platform
Combined adjustment of mattress support platform
No
Indicates whether back rest and knee bending can be adjusted with one control button
Removable bed-rails
No
Removable self-lifting rail
Yes
Removable foot board
No
Removable head board
No
Heigh cot sides
No
Intended to prevent a person (usually a child) in getting out of the bed.
Adjustable head support section
No
Trendelenburg, manual operation
No
Trendelenburg, electrical operation
No
Anti-trendelenburg, manual operation
No
Anti-trendelenburg, electrical operation
No

Measures
Outside measure length
253.5
cm
Measured without any bed extension
Outside measure width
115
cm
Measured including non-detachable accessories
Mattress size, length
240
cm
Mattress size, width
111
cm
Load, max
743
kg
Maximum external load on the product that is permitted in normal use
User weight, max
150
kg
Weight of heaviest main part
180
kg
Weight of heaviest part when disassembled without the use of tools.
Ingress protection class for water
0
IP
0-9 (IPX0-IPX9) according to the standard for degrees of protection provided by enclosures (IEC 60529)
Mattress support platform, height above floor, min
91
cm
Measured without mattress
Mattress support platform, height above floor, max
122
cm
Measured without mattress
Under bed clearance
18.3
cm
Minimum under bed clearance in the 100 cm middle area measured from the floor with the mattress support platform 40-80 cm above the floor.
Wheel diameter
20
cm
For bed without wheels please do not answer

Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type

EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device
