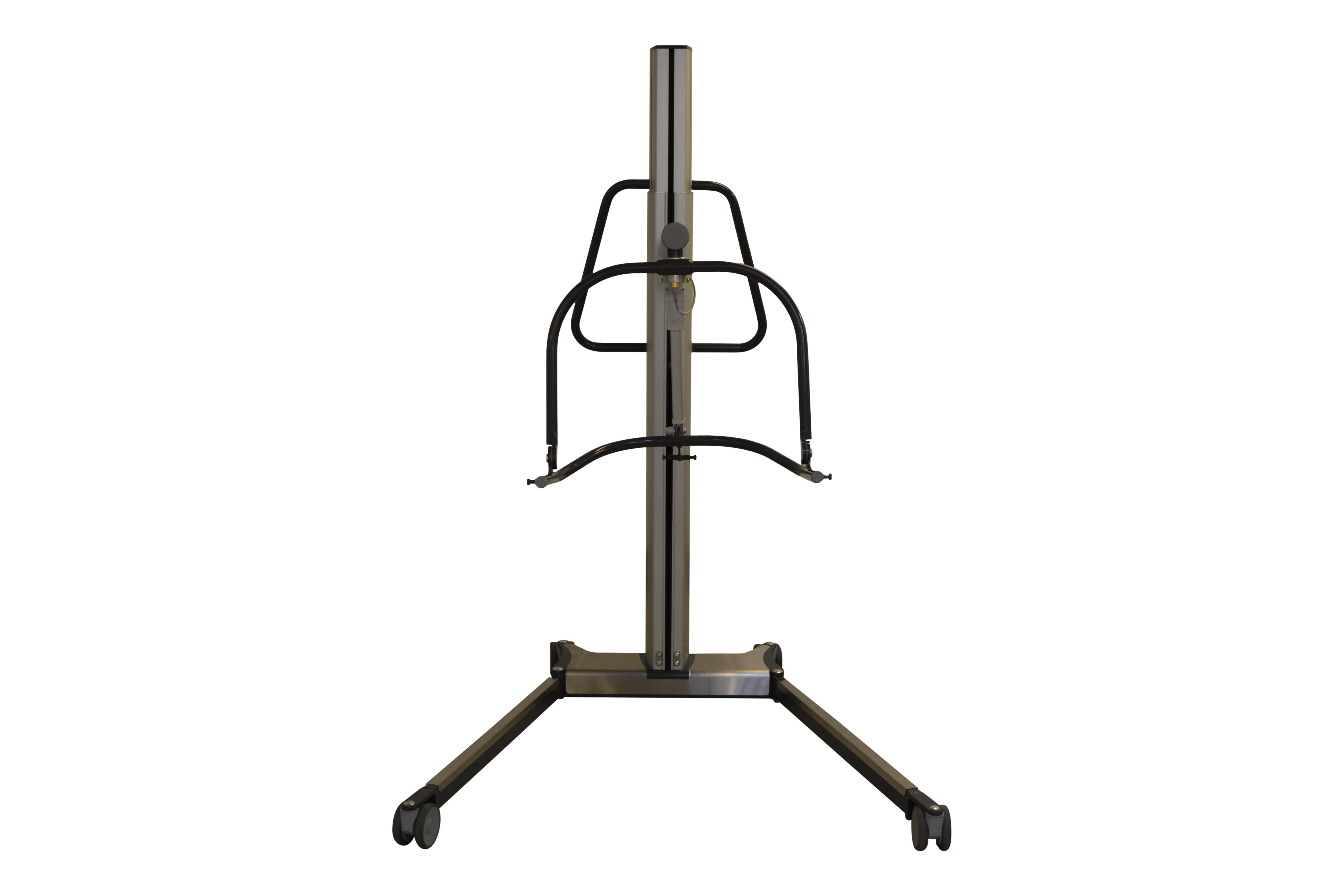

Emmy Lift




Classification
12 36 03 04 - Mobile hoists for transferring a person in sitting position with sling seats

Documents
Brochure
User manual
Accessories catalogue
Spare part catalogue

Video
Play video


The product series contains 1 product.

Product 1 of 1
Emmy Lift


HMI-no.
115025
Article-no.
PS-46000

Registration date
08-03-2019
Last updated
14-08-2025

Properties
Width adjustment of base
Ja, elektrisk

Properties
Width adjustable movement
Parallel

Properties
Lifting movement
Vertikal
info
The distance between the central supension point and the mast is constant with a vertical lifting movement. With a curved lifting movement the distance varies.
Foldable
No
Can be disassembled without tools
Yes
Can lift from floor level
Yes
Standing mobile hoist unit available
No
Integrated battery charger
Yes
Emergency lowering function
Yes

Measures
User weight, max
150
kg
Internal width of base, max
108
cm
info
Measured with the base in the widest position
External width of base in the most narrow position
70
cm
Height of base at front
10.8
cm
Turning diameter
185
cm
info
Diameter of the narrowest circle encompassing the extreme points of the hoist, when it is turned 360 degrees without beeing reversed.
Weight of heaviest main part
25
kg
Ingress protection class for water
4
IP
info
0-9 (IPX0-IPX9) according to the standard for degrees of protection provided by enclosures (IEC 60529)
Maintenance frequency
12
måneder

Test information
No information about tests according to standards info
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type

EU product safety regulation info
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device
