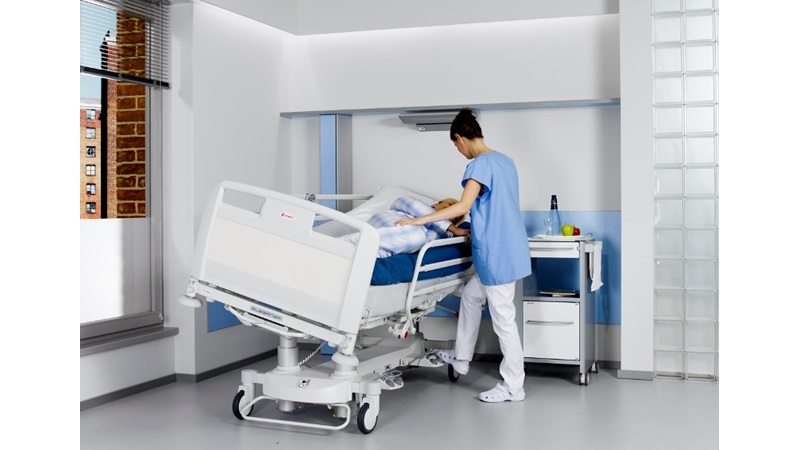

Latera Acute HOSPITAL



Supplier Alcyon ApS
6700 Esbjerg


Classification 18 12 10 - 34
Lateral tilt beds and stand up beds


The product series contains 1 product.

Product 1 of 1
Latera Acute HOSPITAL


HMI-no. 115898
Registration date 14-05-2019
Last updated 15-05-2019

Test information
EN 60601-2-52:2010; IEC 60601-2-52:2009: Medical electrical equipment - Part 2-52: Particular requirements for basic safety and essential performance of medical beds.
Test lab: Slany, Tjekkiet. Test date: 20-07-2018 PDF formatTest report

Specifications
Intended for children No info
Products for children must comply with the specific demands for safety as stated in certain standards. It is the supplier of the product who has stated that the product is intended for children. The National Board of Social Services holds no responsibility in relation to this assessment.
Outside measure length 219cm
Outside measure width 98.5cm
Mattress size, length 200cm
Mattress size, width 86cm
Load, max 200kg info
Maximum external load on the product that is permitted in normal use
User weight, max 135kg
Weight of heaviest main part 160kg info
Weight without parts that are detachable without the use of tools
Ingress protection class for water 4IP-klasse info
0-9 (IPX0-IPX9) according to the standard for degrees of protection provided by enclosures (IEC 60529)
Built-in bed extension Yes
Intended for use in hospitals Yes
Intended for use in nursing institutions No info
Intended for long-term care in a medical area where medical supervision is required and monitoring is provided if necessary, e.g. nursing homes and rehabilitation and geriatic facilities.
Intended for use in a domestic area No
Number of sections of mattress support platform, longitudinal 1
Number of sections of mattress support platform, transversely 4 info
1, 2, 3, or 4 sectioned mattress support platform, e.g. back rest, seat, upper leg and lower leg sections.
Mattress support platform, height above floor, min 140cm info
Measured without mattress
Mattress support platform, height above floor, max 185cm info
Measured without mattress
Internal length 200cm info
Measured from the inside of one end panel to the inside of the other end panel
Under bed clearance 13cm info
Minimum under bed clearance in the 100 cm middle area measured from the floor with the mattress support platform 40 cm above the floor or - if the bed cannot achieve this position - then measured in the lowest position of the mattress support platform
Central braking system Yes
Wheel diameter 150cm
Back rest section, electrical adjustment Yes
Leg section, electrical adjustment Yes
Upper leg section, electrical adjustment Yes
Height adjustment, electrical Yes
Separate adjustment of back rest Yes info
Indicates whether the back rest can be adjusted independently of other parts of the mattress support platform
Combined adjustment of mattress support platform Yes info
Indicates whether back rest and knee bending are adjusted at the same time
Lateral tilt function, electrically operated Yes
Stand-up function, manually operated No info
The mattress support platform can be adjustet manually in a manner where the person is raised to a standing position in the bed.
Stand-up function, electrically operated No info
The mattress support platform can be electrically adjustet in a manner where the person is raised to a standing position in the bed.
Removable bed-rails Yes
Removable self-lifting rail Yes
Removable foot board Yes
Removable head board Yes
Adjustable head support section No
Trendelenburg, manual operation No
Trendelenburg, electrical operation Yes
Anti-trendelenburg, manual operation No
Anti-trendelenburg, electrical operation Yes
