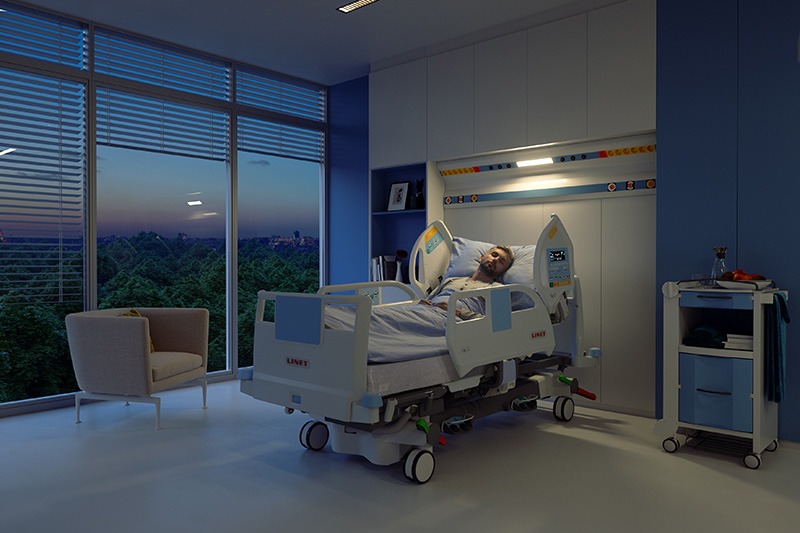

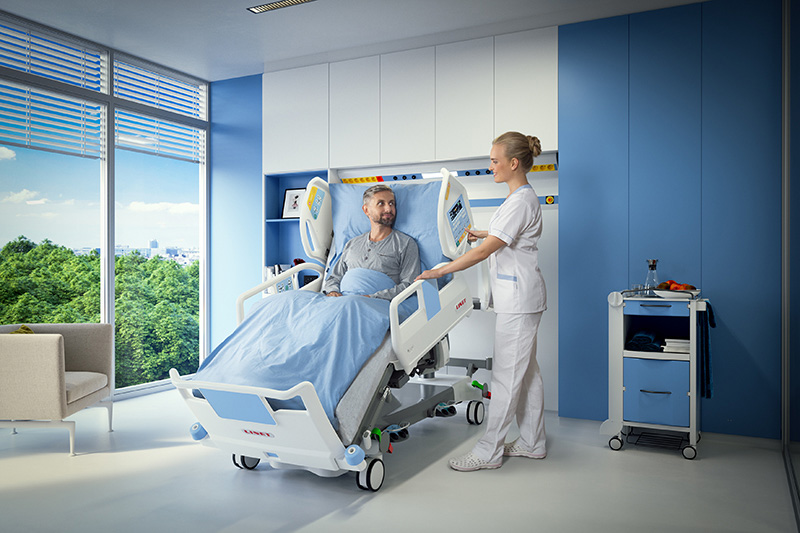

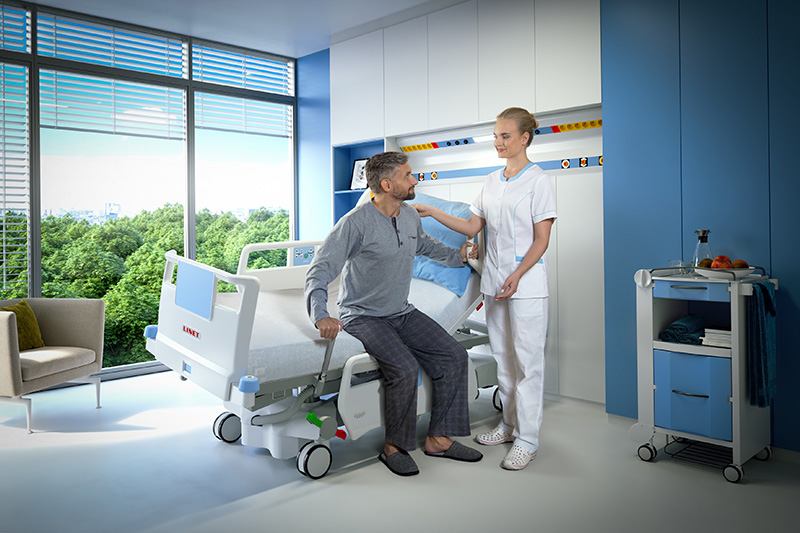

Eleganza 5 ICU bed
Classification
18 12 10 34 - Lateral tilt beds
Documents
BrochureThe product series contains 1 product.
Product 1 of 1
Eleganza 5 Intensivseng
HMI-no.
119937
Registration date
23-10-2019
Last updated
21-10-2024
Properties
Ingress protection class for water
IPX4
0-9 (IPX0-IPX9) according to the standard for degrees of protection provided by enclosures (IEC 60529)
Properties
Number of sections of mattress support platform, longitudinal
1
Properties
Number of sections of mattress support platform, transversely
4
1, 2, 3, or 4 sectioned mattress support platform, e.g. back rest, seat, upper leg and lower leg sections.
Properties
Adjustment of the height of mattress support platform
Elektrisk
Intended for children
No
Products for children must comply with the specific demands for safety as stated in certain standards. It is the supplier of the product who has stated that the product is intended for children. The National Board of Social Services holds no responsibility in relation to this assessment.
Bed extension
Yes
Bed extension, follows the movements of the mattress support platform
Yes
Intended for use in hospitals
Yes
Intended for use in nursing institutions
No
Intended for long-term care in a medical area where medical supervision is required and monitoring is provided if necessary, e.g. nursing homes and rehabilitation and geriatic facilities.
Intended for use in a domestic area
No
Machine washable
No
Machine washable at least 50 times according to EN 50637:2017 and EN 60601-2-52:2010/A1:2015.
Central braking system
Yes
Back rest section, electrical adjustment
Yes
Leg section, electrical adjustment
Yes
Upper leg section, electrical adjustment
Yes
Separate adjustment of back rest
Yes
Indicates whether the back rest can be adjusted independently of other parts of the mattress support platform
Combined adjustment of mattress support platform
Yes
Indicates whether back rest and knee bending can be adjusted with one control button
Lateral tilt function, electrically operated
Yes
Stand-up function, manually operated
No
The mattress support platform can be adjustet manually in a manner where the person is raised to a standing position in the bed.
Stand-up function, electrically operated
No
The mattress support platform can be electrically adjustet in a manner where the person is raised to a standing position in the bed.
Removable bed-rails
No
Removable self-lifting rail
Yes
Removable foot board
Yes
Removable head board
Yes
Adjustable head support section
No
Trendelenburg, manual operation
No
Trendelenburg, electrical operation
Yes
Anti-trendelenburg, manual operation
No
Anti-trendelenburg, electrical operation
Yes
Measures
Outside measure length
219
cm
Measured without any bed extension
Outside measure width
100
cm
Measured including non-detachable accessories
Mattress size, length
208
cm
Mattress size, width
90
cm
Load, max
250
kg
Maximum external load on the product that is permitted in normal use
User weight, max
185
kg
Weight of heaviest main part
200
kg
Weight of heaviest part when disassembled without the use of tools.
Mattress support platform, height above floor, min
140
cm
Measured without mattress
Mattress support platform, height above floor, max
190
cm
Measured without mattress
Under bed clearance
15
cm
Minimum under bed clearance in the 100 cm middle area measured from the floor with the mattress support platform 40-80 cm above the floor.
Wheel diameter
15
cm
Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type
EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device
