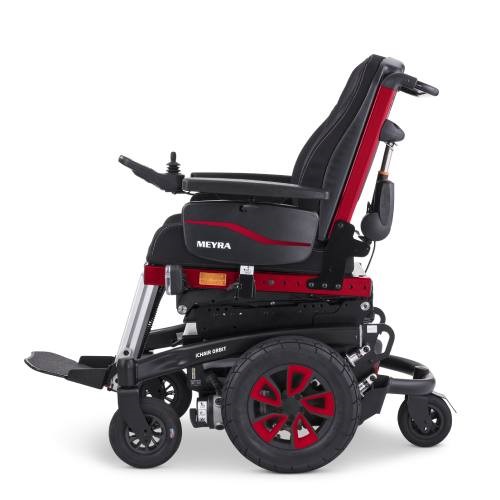

Ichair Orbit
Classification
12 23 06 08 - Powered wheelchairs, powered steering, class B (for indoor and outdoor use)
The product series contains 1 product.
Product 1 of 1
Ichair Orbit
HMI-no.
120376
Article-no.
Orbit-86-43
Registration date
29-11-2019
Last updated
21-11-2023
Properties
Intended for children
No
Products for children must comply with the specific demands for safety as stated in certain standards. It is the supplier of the product who has stated that the product is intended for children. The National Board of Social Services holds no responsibility in relation to this assessment.
Programmable
Yes
Elevating seat
Yes
Powered recline
Yes
Powered tilt
Yes
Powered legrests
Yes
Optional motorized attendant control
Yes
Suspension
Yes
Front-wheel-driven
No
Mid-wheel-driven
Yes
Rear-wheel-driven
No
Can be used as seat in a car
Yes
Measures
User weight, max
160
kg
External width
60
cm
Measured where widest
External length
118
cm
Maximum external length with the seat in an upright position. Measured without leg supports
Weight
120
kg
Speed, max
10
km/t
Driving distance range, fully charged
40
km
The theoretical driving distance range as calculated through laboratory testing.
Seat height, min
43
cm
The vertical distance between the floor and the seat surface measured at the front edge of the seat. Measured with the seat in the lowest position.
Seat height, max
81
cm
The vertical distance between the floor and the seat surface measured at the front edge of the seat. Measured with the seat in the highest position.
Back rest recline, max
60
°
Recline of back rest from an upright position.
Tilt-in-space forward
0
°
Measured from the horizontal position.
Tilt-in-space back
50
°
Measured from the horizontal position.
Ground clearance
7
cm
Turning diameter
140
cm
Slope, max
8.5
°
Climbs obstacles of max
6
cm
Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type
EU product safety regulation
No information about CE-marking
The supplier has not provided any information about CE-marking of the product. Explain CE-marking
