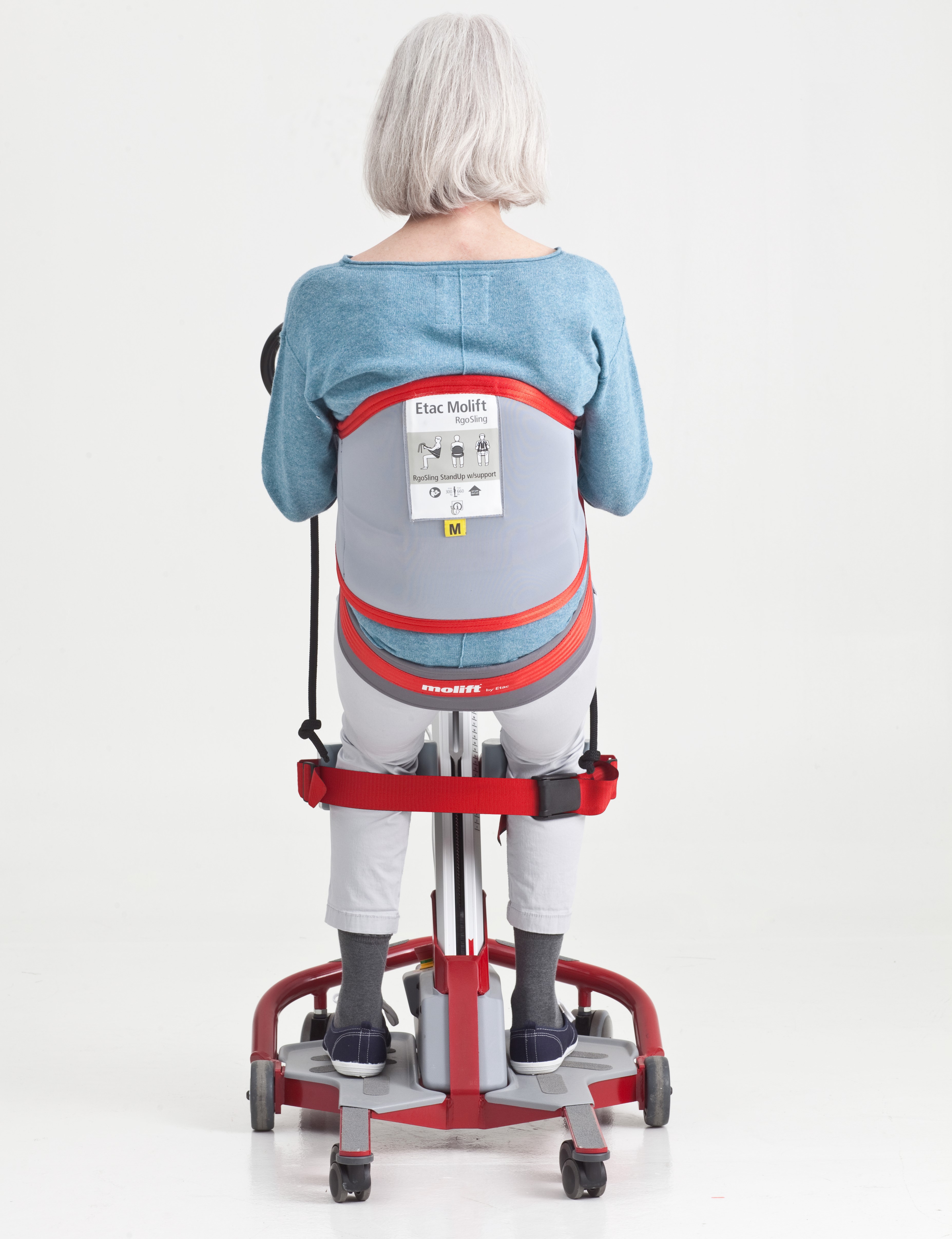

Molift Quick Raiser 1 with U-handel, sit to stand hoist



The Molift Quick Raiser 1 is a stable steel lift that is easy to maneuver even in small rooms. The position of the wheels and the weight distribution of the chassis give a small turning radius with great maneuverability. The low base and the narrow front fit well around the toilet and bed.

Classification
12 36 04 01 - Mobile hoists for transferring a person in standing position



The product series contains 1 product.

Product 1 of 1
Molift Quick Raiser 1 with U-handle


HMI-no.
120618
Article-no.
M04150

Registration date
05-12-2019
Last updated
19-12-2023

Properties
Ingress protection class for water
IPX3
info
0-9 (IPX0-IPX9) according to the standard for degrees of protection provided by enclosures (IEC 60529)
Electrical lifting mechanism
Yes
Electrical width adjustment of base
No
Parallel width adjustment of base
No

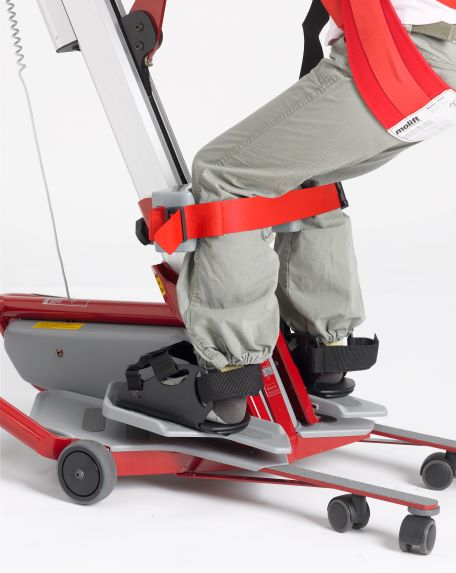

Leg support adjustable in height
Yes
Leg support horizontal adjustable
No
Leg support adjustable without tools
Yes
Split leg support
Yes
Foldable
No
Can be disassembled without tools
Yes
Integrated battery charger
No
Emergency lowering function
Yes
Unit for use with sling(s) available
No

Measures
User weight, max
160
kg
Lifting height, max
82
cm
Internal width of base, max
25.5
cm
External width of base in the most narrow position
33.5
cm
Height of base at front
7
cm
Turning diameter
95
cm
info
Diameter of the narrowest circle encompassing the extreme points of the hoist, when it is turned 360 degrees without beeing reversed.
Weight of heaviest main part
29
kg
Maintenance frequency
12
måneder

Test information
No information about tests according to standards info
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type

EU product safety regulation info
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device
