Raz AP600

Raz AP600

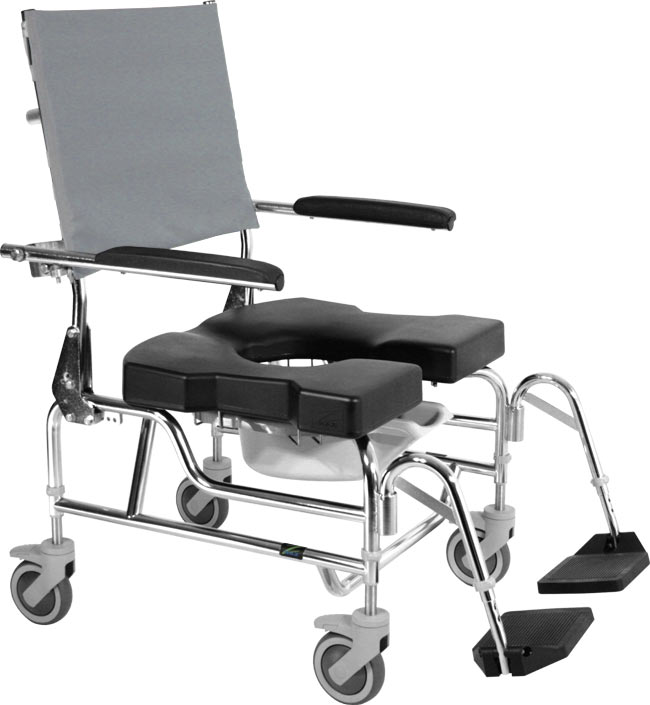

The Raz AP600 commode and shower chair is designed to meet the complex needs and demands of bariatric users for safety, functionality and quality. It comes standard with the Ischial & Pelvic Alignment System (IPAS), which supports and positions the pelvis. In addition, the chair has flip-up armrests and a user-friendly pelvis.

Classification
09 12 03 08 - Commode shower chairs with castors, non-electrical height adjustable

Documents
Brochure
User manual


The product series contains 1 product.

Product 1 of 1
Raz AP600


HMI-no.
120927
Article-no.
840720000720

Registration date
06-01-2020
Last updated
11-09-2025

Properties
Height adjustable
Manuelt
Tension adjustable back rest upholstery
Yes
Can be used with standard wall-mounted toilets (without extension)
Yes
Possibility to change position of armrest to allow sideways transfer
Yes
Fold-up foot supports
Yes
Height adjustable legrests
Yes
Elevating legrests
Yes
Legrest position may be changed to facililtate hygiene and transfer
Yes

Measures
User weight, max
275
kg
Total width
67
cm
Ground clearance
46
cm
Measured from the floor to the lowest point under the seat. Measured without bedpan/collection receptacle.
Width between arm supports
56
cm
Smallest distance measured between the inside of the arm supports. If the arm supports are adjustable, this is measured with the arm supports in the widest position.
Seat depth
46
cm
If the seat depth is adjustable, this is the maximum seat depth
Wheel diameter
120
mm
Number of wheels with brake
4
Seat height, min
48
cm
Seat height, max
58
cm
Height of push handles/push bar, min.
104
cm
Measured from the floor to the upper surface of the grip. According to ISO 17966:2016 it shall be possible to push the chair with the grip 90 cm above the floor.
Height of push handles/push bar, max.
115
cm
Measured from the floor to the upper surface of the heigher grip with the chair in the highest position

Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type

EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device
