OPTIMUS 2




Classification
12 23 06 09 - Powered wheelchairs, powered steering, class C (primarily for outdoor use)

Documents
Brochure
User manual


The product series contains 1 product.
The product series also includes a discontinued product. Include discontinued products.

Product 1 of 1

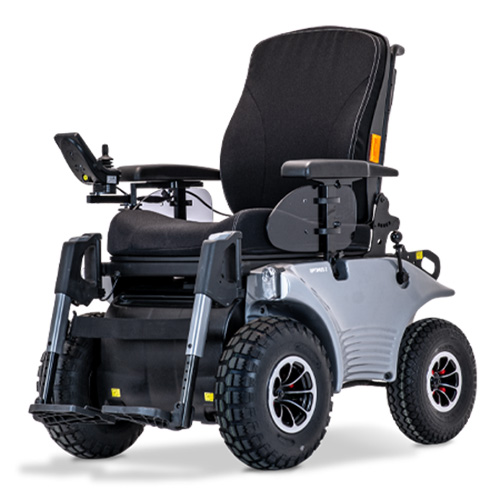

Meyra Optimus 2


HMI-no.
40481
Article-no.
Optimus 2

Registration date
04-05-2005
Last updated
11-09-2025

Properties
Programmable
Yes
Elevating seat
No
Powered recline
Yes
Powered tilt
Yes

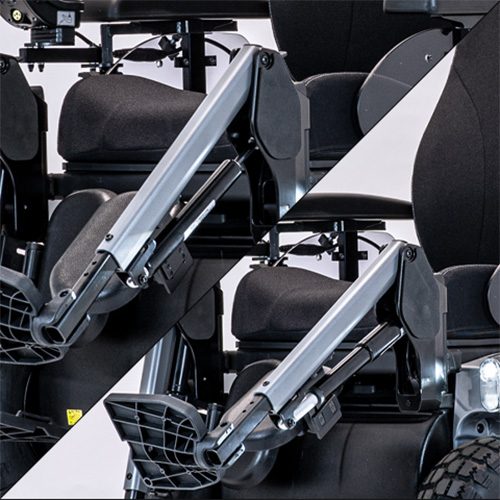

Powered legrests
Yes
Optional motorized attendant control
Yes
Suspension
Yes
Front-wheel-driven
Yes
Mid-wheel-driven
No
Rear-wheel-driven
No
Can be used as seat in a car
Yes

Measures
User weight, max
150
kg
External width
68
cm
Measured where widest
External length
116
cm
Maximum external length with the seat in an upright position. Measured without leg supports
Weight
150
kg
Speed, max
15
km/t
Driving distance range, fully charged
70
km
The theoretical driving distance range as calculated through laboratory testing.
Seat height, min
61
cm
The vertical distance between the floor and the seat surface measured at the front edge of the seat. Measured with the seat in the lowest position.
Seat height, max
65
cm
The vertical distance between the floor and the seat surface measured at the front edge of the seat. Measured with the seat in the highest position.
Back rest recline, max
60
°
Recline of back rest from an upright position.
Tilt-in-space forward
75
°
Measured from the horizontal position.
Tilt-in-space back
22
°
Measured from the horizontal position.
Ground clearance
11
cm
Slope, max
17
°
Climbs obstacles of max
11
cm

Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type

EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device
EU declaration of conformity for HMI-no. 40481
