M1

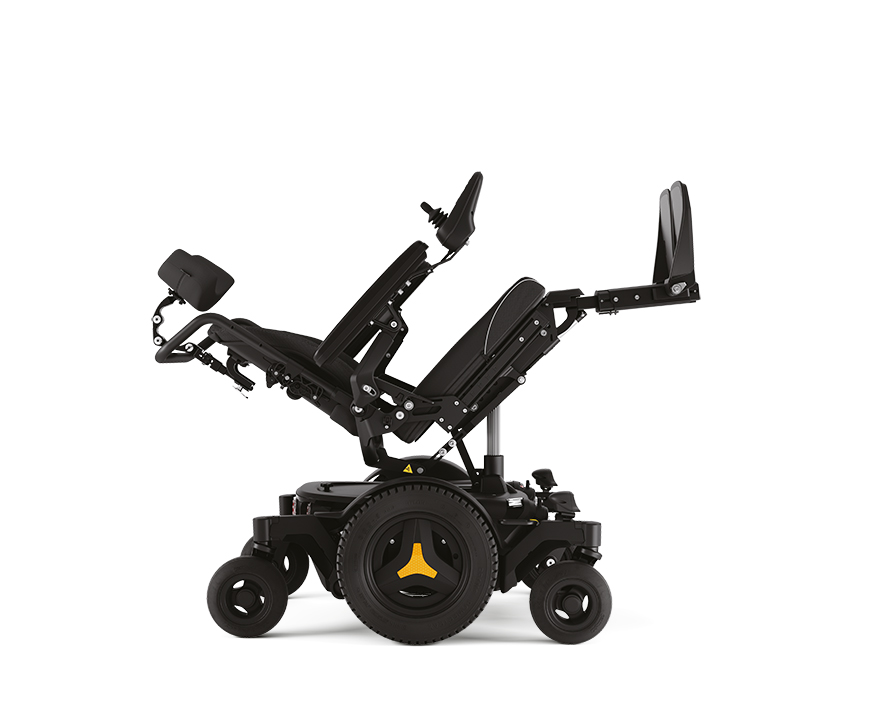

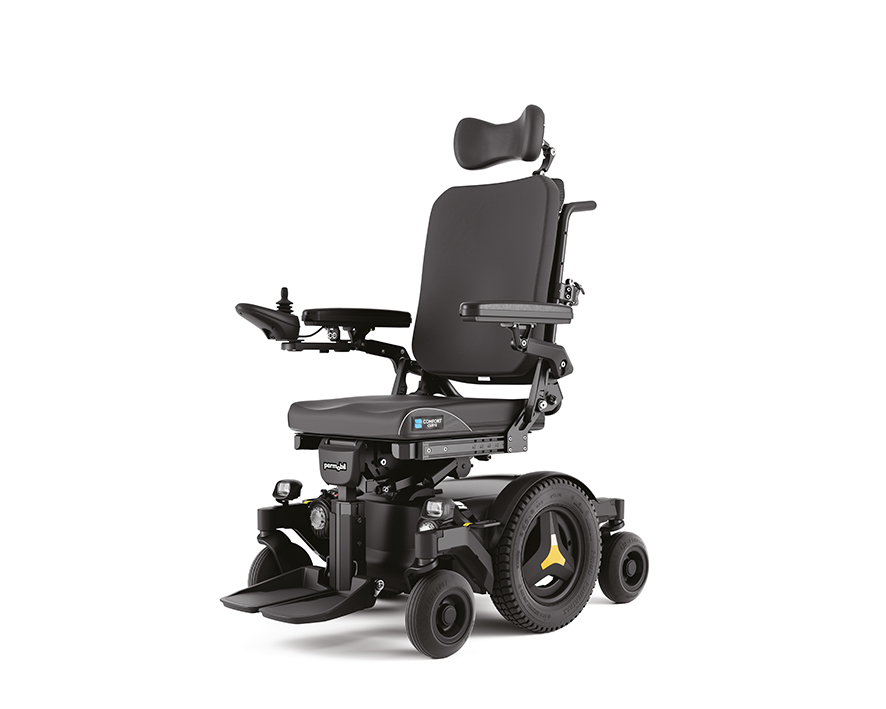

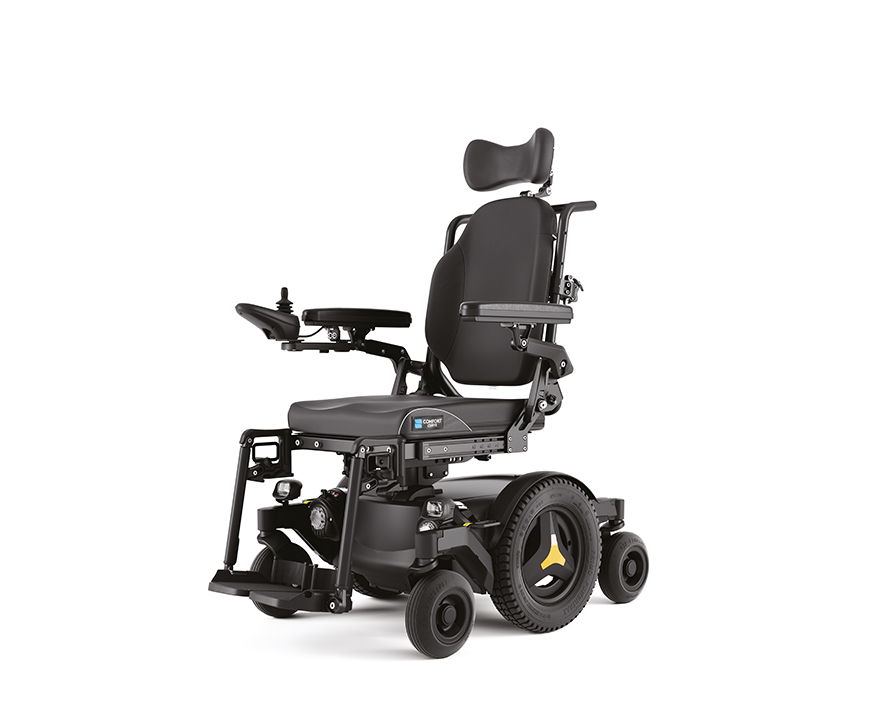

M1 is a reliable, center-driven electric wheelchair with the option of electric tilt, recline and leg support. There are 3 choices of backrest systems. The low seat height, the robust and lockable armrests and the smart swivel joystick make transfers and activities in everyday life more secure and simple.

Classification
12 23 06 08 - Powered wheelchairs, powered steering, class B (for indoor and outdoor use)

Documents
Brochure
User manual

Video
Play video


The product series contains 1 product.

Product 1 of 1
M1


HMI-no.
128173

Registration date
17-02-2021
Last updated
18-09-2025

Properties
Programmable
Yes
Elevating seat
No
Powered recline
Yes
Powered tilt
Yes
Powered legrests
Yes
Optional motorized attendant control
Yes
Suspension
Yes
Front-wheel-driven
No
Mid-wheel-driven
Yes
Rear-wheel-driven
No
Can be used as seat in a car
Yes

Measures
User weight, max
136
kg
External width
61
cm
Measured where widest
External length
82
cm
Maximum external length with the seat in an upright position. Measured without leg supports
Weight
144
kg
Speed, max
8
km/t
Driving distance range, fully charged
40
km
The theoretical driving distance range as calculated through laboratory testing.
Seat height, min
41
cm
The vertical distance between the floor and the seat surface measured at the front edge of the seat. Measured with the seat in the lowest position.
Seat height, max
46
cm
The vertical distance between the floor and the seat surface measured at the front edge of the seat. Measured with the seat in the highest position.
Back rest recline, max
130
°
Recline of back rest from an upright position.
Tilt-in-space forward
0
°
Measured from the horizontal position.
Tilt-in-space back
50
°
Measured from the horizontal position.
Ground clearance
8
cm
Slope, max
10
°
Climbs obstacles of max
7.5
cm

Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type

EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device
EU declaration of conformity for HMI-no. 128173
