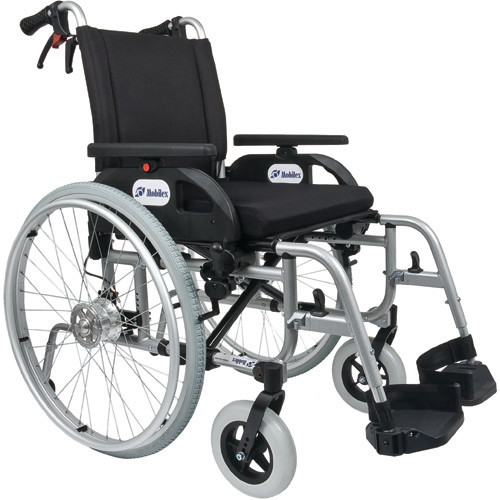

Dolphin wheelchair with brake

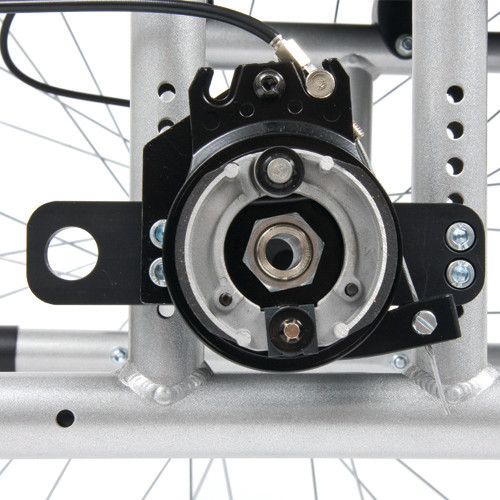

Wheelchair with brakes for companion that can be activated from the push handles. The wheelchair is ideal for situations where the user is unable to activate the brakes themselves.

Classification
12 22 03 11 - Manual wheelchairs, sideways foldable, standard measures

Documents
Brochure
User manual
QuickGuide
Accessories catalogue
Service manual


The product series contains 6 products.

» Summarize specifications

Product 1 of 6
Dolphin wheelchair with brake, seat width 40 cm


HMI-no.
129406
Article-no.
271440

Registration date
28-04-2021
Last updated
07-11-2025

Properties
Adjustable seat angle
No
Balance point adjustable
No
Available with hard base
No
As opposed to sling seat
Back rest angle adjustable
No
Height adjustable back rest
No

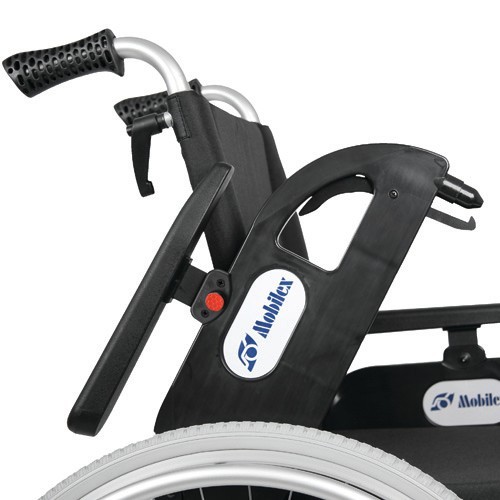

Push handles
Yes
Front-wheel-driven
No
Intended for fastening in a car
No

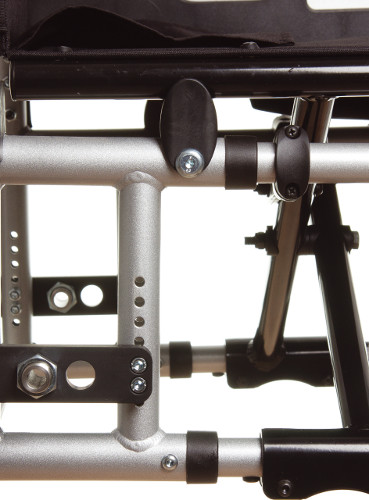

Adjustable seat depth
Yes
The seat depth in this specific frame can be altered by adjustment or replacement of component(s)

Measures
User weight, max
130
kg
Seat height, min
49
cm
Seat height, max
54
cm
Back rest height, min
42
cm
Back rest height, max
42
cm
Total width
63
cm
Total length
88
cm
Weight
16
kg
The weight of the wheelchair incl. wheels and leg supports.
Seat width
40
cm
Seat depth, min
42
cm
Possibly by adjustment
Seat depth, max
48
cm
Longest possible for this frame. Possibly identical to seat depth, min.

Test information
Though the product is testet, it might not have passed all requirements in the standard. Besides, some products are only tested according to parts of the standard. Read the test report for detailed information. See also other standards that could be relevant for this product type.
EN 12183:2009: Manual wheelchairs - Requirements and test medthods.
Test lab: Centre for testing and certification - Mechanical laboratory. Test date: 17-11-2014 Test report for HMI-no. 129406

EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device

Product 2 of 6
Dolphin wheelchair with brake, seat width 44 cm


HMI-no.
129407
Article-no.
271444

Registration date
28-04-2021
Last updated
07-11-2025

Properties
Adjustable seat angle
No
Balance point adjustable
No
Available with hard base
No
As opposed to sling seat
Back rest angle adjustable
No
Height adjustable back rest
No
Push handles
Yes
Front-wheel-driven
No
Intended for fastening in a car
No
Adjustable seat depth
Yes
The seat depth in this specific frame can be altered by adjustment or replacement of component(s)

Measures
User weight, max
130
kg
Seat height, min
49
cm
Seat height, max
54
cm
Back rest height, min
42
cm
Back rest height, max
42
cm
Total width
63
cm
Total length
88
cm
Weight
16
kg
The weight of the wheelchair incl. wheels and leg supports.
Seat width
44
cm
Seat depth, min
42
cm
Possibly by adjustment
Seat depth, max
48
cm
Longest possible for this frame. Possibly identical to seat depth, min.

Test information
Though the product is testet, it might not have passed all requirements in the standard. Besides, some products are only tested according to parts of the standard. Read the test report for detailed information. See also other standards that could be relevant for this product type.
EN 12183:2009: Manual wheelchairs - Requirements and test medthods.
Test lab: Centre for testing and certification - Mechanical laboratory. Test date: 17-11-2014 Test report for HMI-no. 129407

EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device

Product 3 of 6
Dolphin wheelchair with brake, seat width 48 cm


HMI-no.
129408
Article-no.
271448

Registration date
28-04-2021
Last updated
07-11-2025

Properties
Adjustable seat angle
No
Balance point adjustable
No
Available with hard base
No
As opposed to sling seat
Back rest angle adjustable
No
Height adjustable back rest
No
Push handles
Yes
Front-wheel-driven
No
Intended for fastening in a car
No
Adjustable seat depth
Yes
The seat depth in this specific frame can be altered by adjustment or replacement of component(s)

Measures
User weight, max
150
kg
Seat height, min
45
cm
Seat height, max
52.5
cm
Back rest height, min
42
cm
Back rest height, max
42
cm
Total width
68.3
cm
Total length
88
cm
Weight
16.2
kg
The weight of the wheelchair incl. wheels and leg supports.
Seat width
48
cm
Seat depth, min
42
cm
Possibly by adjustment
Seat depth, max
48
cm
Longest possible for this frame. Possibly identical to seat depth, min.

Test information
Though the product is testet, it might not have passed all requirements in the standard. Besides, some products are only tested according to parts of the standard. Read the test report for detailed information. See also other standards that could be relevant for this product type.
EN 12183:2009: Manual wheelchairs - Requirements and test medthods.
Test lab: Centre for testing and certification - Mechanical laboratory. Test date: 17-11-2014 Test report for HMI-no. 129408

EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device

Product 4 of 6
Dolphin wheelchair with brake, seat width 51 cm


HMI-no.
129409
Article-no.
271451

Registration date
28-04-2021
Last updated
07-11-2025

Properties
Adjustable seat angle
No
Balance point adjustable
No
Available with hard base
No
As opposed to sling seat
Back rest angle adjustable
No
Height adjustable back rest
No
Push handles
Yes
Front-wheel-driven
No
Intended for fastening in a car
No
Adjustable seat depth
Yes
The seat depth in this specific frame can be altered by adjustment or replacement of component(s)

Measures
User weight, max
150
kg
Seat height, min
45
cm
Seat height, max
52.5
cm
Back rest height, min
42
cm
Back rest height, max
42
cm
Total width
71.3
cm
Total length
88
cm
Weight
16.75
kg
The weight of the wheelchair incl. wheels and leg supports.
Seat width
51
cm
Seat depth, min
42
cm
Possibly by adjustment
Seat depth, max
48
cm
Longest possible for this frame. Possibly identical to seat depth, min.

Test information
Though the product is testet, it might not have passed all requirements in the standard. Besides, some products are only tested according to parts of the standard. Read the test report for detailed information. See also other standards that could be relevant for this product type.
EN 12183:2009: Manual wheelchairs - Requirements and test medthods.
Test lab: Centre for testing and certification - Mechanical laboratory. Test date: 17-11-2014 Test report for HMI-no. 129409

EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device

Product 5 of 6
Dolphin wheelchair with brake, seat width 54 cm


HMI-no.
129410
Article-no.
271454

Registration date
28-04-2021
Last updated
07-11-2025

Properties
Adjustable seat angle
Yes
Balance point adjustable
Yes
Available with hard base
No
As opposed to sling seat
Back rest angle adjustable
No
Height adjustable back rest
No
Push handles
Yes
Front-wheel-driven
No
Intended for fastening in a car
No
Adjustable seat depth
Yes
The seat depth in this specific frame can be altered by adjustment or replacement of component(s)

Measures
User weight, max
200
kg
Seat height, min
45
cm
Seat height, max
52.5
cm
Back rest height, min
42
cm
Back rest height, max
42
cm
Total width
74
cm
Total length
88
cm
Weight
19.4
kg
The weight of the wheelchair incl. wheels and leg supports.
Seat width
54
cm
Seat depth, min
42
cm
Possibly by adjustment
Seat depth, max
48
cm
Longest possible for this frame. Possibly identical to seat depth, min.

Test information
Though the product is testet, it might not have passed all requirements in the standard. Besides, some products are only tested according to parts of the standard. Read the test report for detailed information. See also other standards that could be relevant for this product type.
EN 12183:2009: Manual wheelchairs - Requirements and test medthods.
Test lab: Centre for testing and certification - Mechanical laboratory. Test date: 17-11-2014 Test report for HMI-no. 129410

EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device

Product 6 of 6
Dolphin wheelchair with brake, seat width 57 cm


HMI-no.
129411
Article-no.
271457

Registration date
28-04-2021
Last updated
07-11-2025

Properties
Adjustable seat angle
No
Balance point adjustable
Yes
Available with hard base
No
As opposed to sling seat
Back rest angle adjustable
No
Height adjustable back rest
No
Push handles
Yes
Front-wheel-driven
No
Intended for fastening in a car
No
Adjustable seat depth
Yes
The seat depth in this specific frame can be altered by adjustment or replacement of component(s)

Measures
User weight, max
200
kg
Seat height, min
45
cm
Seat height, max
52.5
cm
Back rest height, min
42
cm
Back rest height, max
42
cm
Total width
77.3
cm
Total length
88
cm
Weight
22.6
kg
The weight of the wheelchair incl. wheels and leg supports.
Seat width
57
cm
Seat depth, min
42
cm
Possibly by adjustment
Seat depth, max
48
cm
Longest possible for this frame. Possibly identical to seat depth, min.

Test information
Though the product is testet, it might not have passed all requirements in the standard. Besides, some products are only tested according to parts of the standard. Read the test report for detailed information. See also other standards that could be relevant for this product type.
EN 12183:2009: Manual wheelchairs - Requirements and test medthods.
Test lab: Centre for testing and certification - Mechanical laboratory. Test date: 17-11-2014 Test report for HMI-no. 129411

EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device
