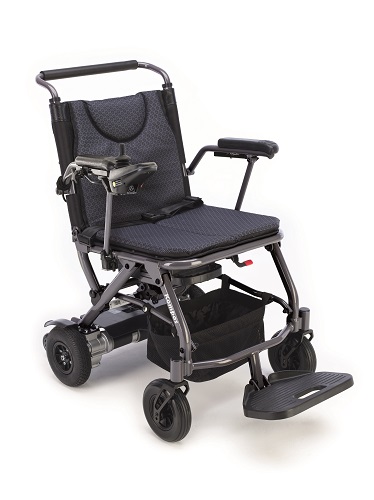

Invacare Kompas

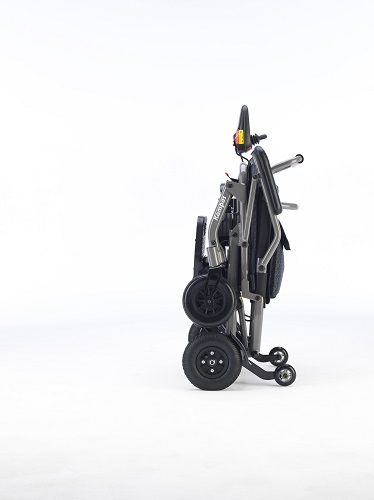

Kompas is a light, compact and practical folding electric wheelchair. Compass combines the freedom of having an electric wheelchair with the flexibility of a manual wheelchair. Compass is quick and easy to fold and unfold with a minimum of effort. When Kompas is folded, it does not take up more space than it can be transported in an ordinary car.

Classification
12 23 06 07 - Powered wheelchairs, powered steering, class A (primarily for indoor use)

Documents
Brochure
User manual


The product series contains 1 product.

Product 1 of 1
Invacare Kompas


HMI-no.
129851
Article-no.
1662630

Registration date
02-07-2021
Last updated
11-09-2025

Properties
Programmable
Yes
Elevating seat
No
Powered recline
No
Powered tilt
No
Powered legrests
No
Optional motorized attendant control
No
Suspension
No
Front-wheel-driven
No
Mid-wheel-driven
No
Rear-wheel-driven
Yes
Can be used as seat in a car
No

Measures
User weight, max
115
kg
External width
59
cm
Measured where widest
External length
97
cm
Maximum external length with the seat in an upright position. Measured without leg supports
Weight
20.9
kg
Speed, max
6.4
km/t
Driving distance range, fully charged
11
km
The theoretical driving distance range as calculated through laboratory testing.
Seat height, min
52
cm
The vertical distance between the floor and the seat surface measured at the front edge of the seat. Measured with the seat in the lowest position.
Seat height, max
52
cm
The vertical distance between the floor and the seat surface measured at the front edge of the seat. Measured with the seat in the highest position.
Back rest recline, max
5
°
Recline of back rest from an upright position.
Tilt-in-space forward
0
°
Measured from the horizontal position.
Tilt-in-space back
0
°
Measured from the horizontal position.
Ground clearance
3
cm
Slope, max
6
°
Climbs obstacles of max
3
cm

Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type

EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device
