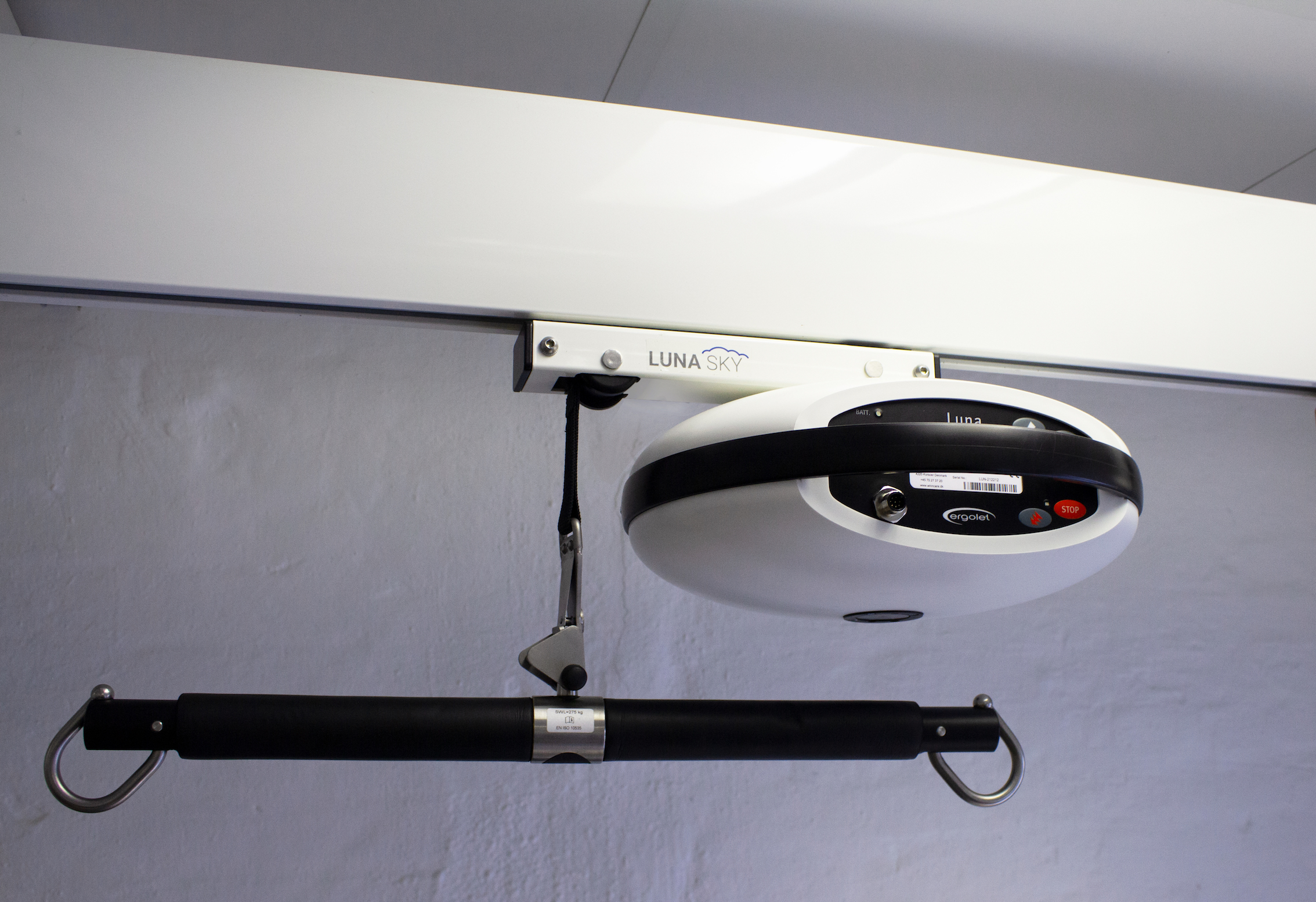

Luna Sky 200 kg IPX4
If you need more lifting height, Luna Sky is the solution.
Luna Sky creates more opportunities for transfers with a ceiling lift.

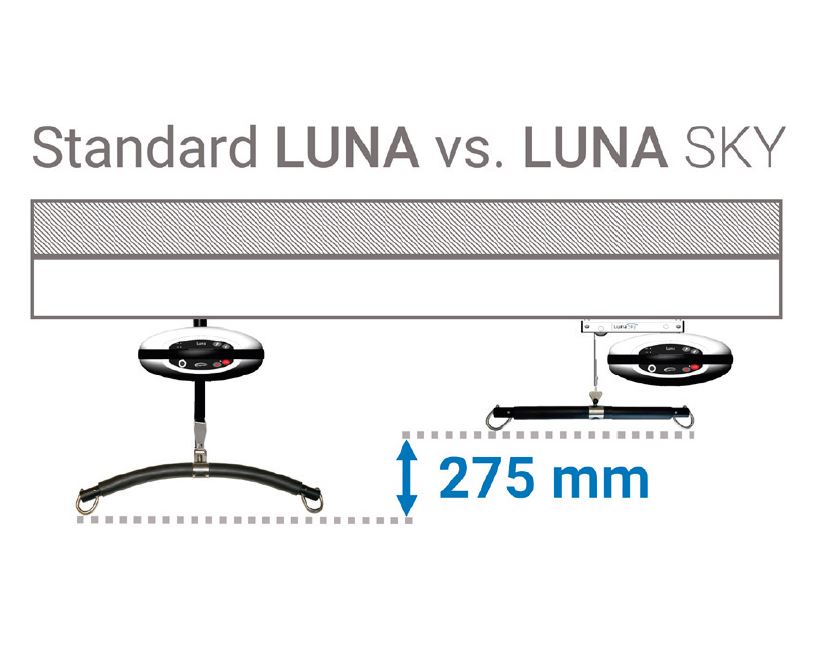

With Luna Skys compact design, you can pick up up to 275 mm compared to a standard Luna ceiling lift solution.
Therefore, Luna Sky is the choice for locations with, for example, low ceilings and / or low doors.
Luna Sky creates more opportunities for transfers with a ceiling lift.
With Luna Skys compact design, you can pick up up to 275 mm compared to a standard Luna ceiling lift solution.
Therefore, Luna Sky is the choice for locations with, for example, low ceilings and / or low doors.
Classification
12 36 12 02 - Stationary hoists fixed to walls, floor or ceiling
Documents
BrochureThe product series contains 1 product.
Product 1 of 1
Luna Sky ceiling hoist/200 kg/bayonet
HMI-no.
130603
Article-no.
015-03045
Registration date
12-10-2021
Last updated
21-11-2023
Properties
Ingress protection class for water
IPX4
0-9 (IPX0-IPX9) according to the standard for degrees of protection provided by enclosures (IEC 60529)
Electrical lifting mechanism
Yes
Electrical horizontal movement
No
Intended fixation to ceiling
Yes
Intended fixation to wall(s)
Yes
Intended fixation to floor
Yes
Fitted with seat
No
Intended use for swimming pools
No
Room covering rail system
Yes
Door transition without manual handling
No
Door transition with manual handling
Yes
Detachable lifting machinery
Yes
External battery charger
Yes
Charging station at track
No
Charging liner
No
Emergency lowering function, electrically operated
Yes
Emergency lowering function, manually operated
Yes
Measures
User weight, max
200
kg
Max lifting velocity, loaded
0.044
m/s
Weight of lifting machinery
7.4
kg
Min. distance from ceiling to central suspension point
24
cm
Maintenance frequency
12
måneder
Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type
EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device
