RotoBedChange

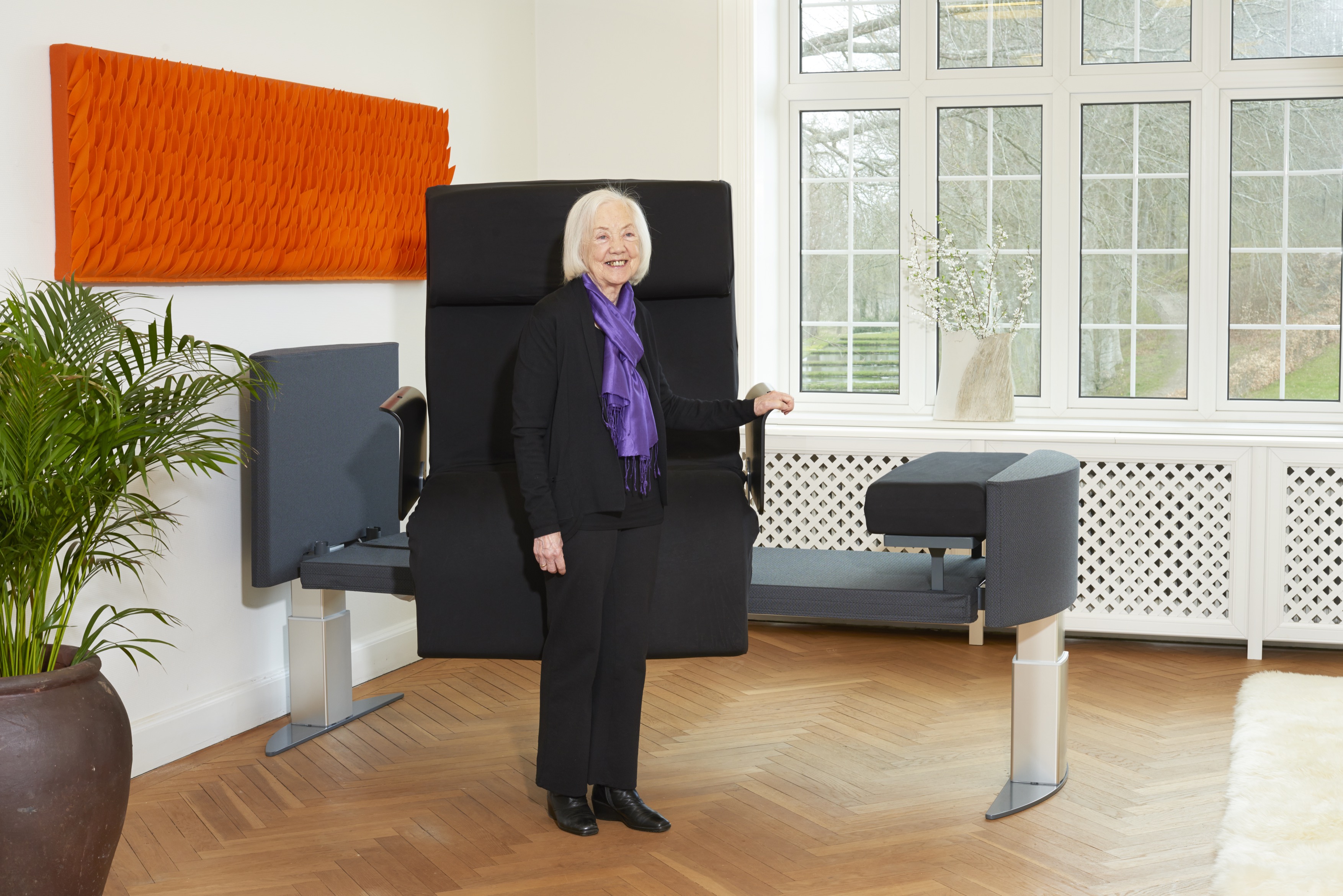

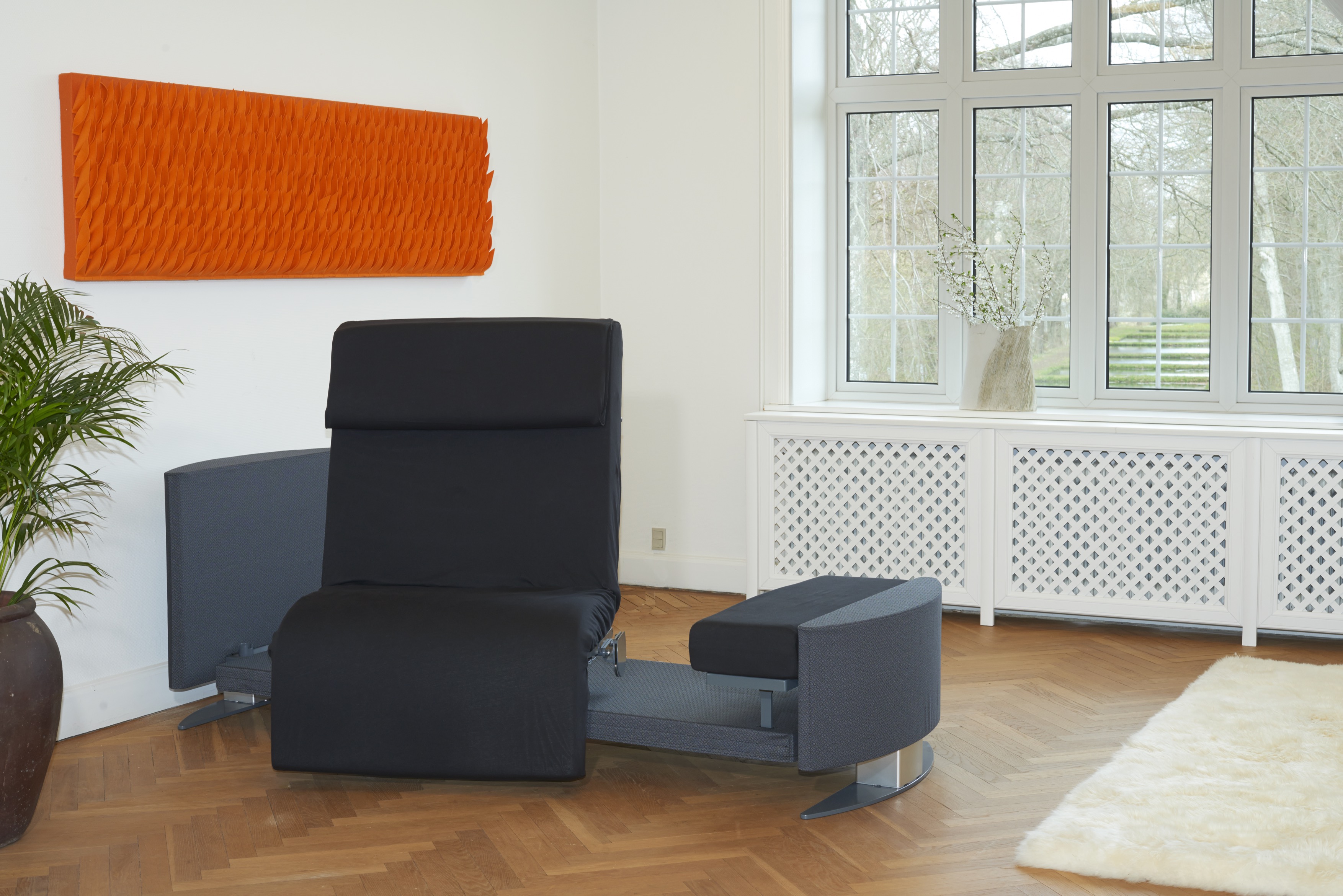

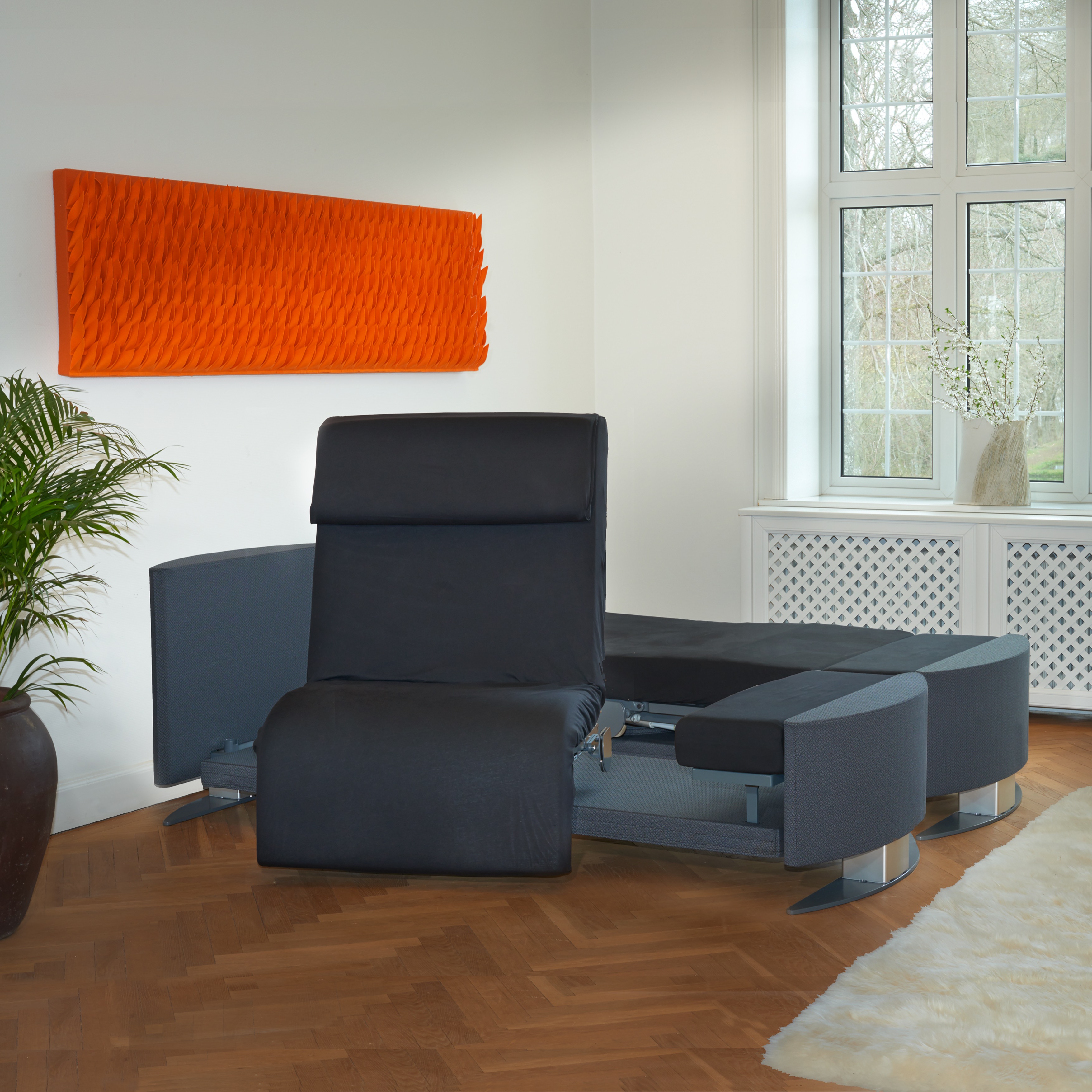

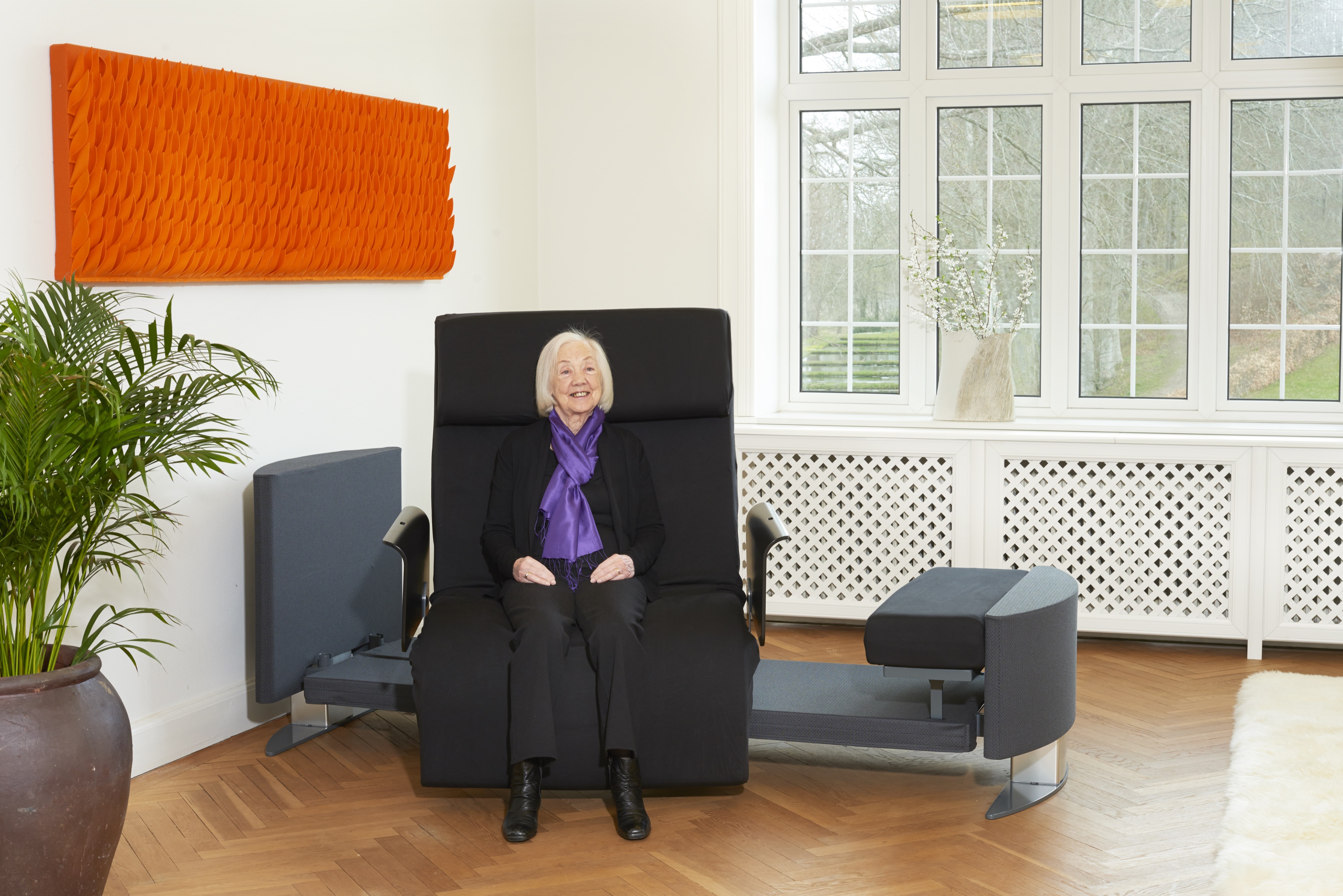

Makes the user more self-reliant and reduces the need for care. With the remote control, the user can move the bed to the chair position and rotate it to exit position. Facilitates care and protects the body from twisting and pulling. Height adjustment up to 72 cm helps the user to get to a standing position.
Classification
18 12 10 38 - Beds with ingress and egress function
Documents
BrochureThe product series contains 1 product.
Product 1 of 1
RotoBedChange
HMI-no.
130683
Article-no.
RBC-0001
Registration date
18-10-2021
Last updated
21-10-2024
Properties
Ingress protection class for water
IPX6
0-9 (IPX0-IPX9) according to the standard for degrees of protection provided by enclosures (IEC 60529)
Properties
Number of sections of mattress support platform, transversely
4
Properties
Adjustment of the height of mattress support platform
Elektrisk
Intended for children
No
Products for children must comply with the specific demands for safety as stated in certain standards. It is the supplier of the product who has stated that the product is intended for children. The National Board of Social Services holds no responsibility in relation to this assessment.
Bed extension
No
Bed extension, follows the movements of the mattress support platform
No
Intended for use in hospitals
No
Intended for use in nursing institutions
Yes
Intended for long-term care in a medical area where medical supervision is required and monitoring is provided if necessary, e.g. nursing homes and rehabilitation and geriatic facilities.
Intended for use in a domestic area
Yes
Machine washable
No
Machine washable at least 50 times according to EN 50637:2017 and EN 60601-2-52:2010/A1:2015.
Central braking system
No
Back rest section, electrical adjustment
Yes
Leg section, electrical adjustment
Yes
Upper leg section, electrical adjustment
Yes
Separate adjustment of back rest
Yes
Indicates whether the back rest can be adjusted independently of other parts of the mattress support platform
Combined adjustment of mattress support platform
Yes
Indicates whether back rest and knee bending can be adjusted with one control button
Egress from the side of the bed
Yes
E.g. by way of rotation of the mattress support platform
Egress via the foot end
No
Electrically operated egress function
Yes
Removable bed-rails
Yes
Removable self-lifting rail
Yes
Removable foot board
No
Removable head board
No
Heigh cot sides
No
Intended to prevent a person (usually a child) in getting out of the bed.
Adjustable head support section
No
Trendelenburg, manual operation
No
Trendelenburg, electrical operation
No
Anti-trendelenburg, manual operation
No
Anti-trendelenburg, electrical operation
No
Measures
Outside measure length
234
cm
Measured without any bed extension
Outside measure width
87
cm
Measured including non-detachable accessories
Mattress size, length
205
cm
Mattress size, width
85
cm
Load, max
170
kg
Maximum external load on the product that is permitted in normal use
User weight, max
135
kg
Weight of heaviest main part
44
kg
Weight of heaviest part when disassembled without the use of tools.
Mattress support platform, height above floor, min
32
cm
Measured without mattress
Mattress support platform, height above floor, max
82
cm
Measured without mattress
Under bed clearance
15
cm
Minimum under bed clearance in the 100 cm middle area measured from the floor with the mattress support platform 40-80 cm above the floor.
Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type
EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked according to other specific regulations/directives (e.g. machinery, construction products, low voltage)
