Mobile lifters GL5.2

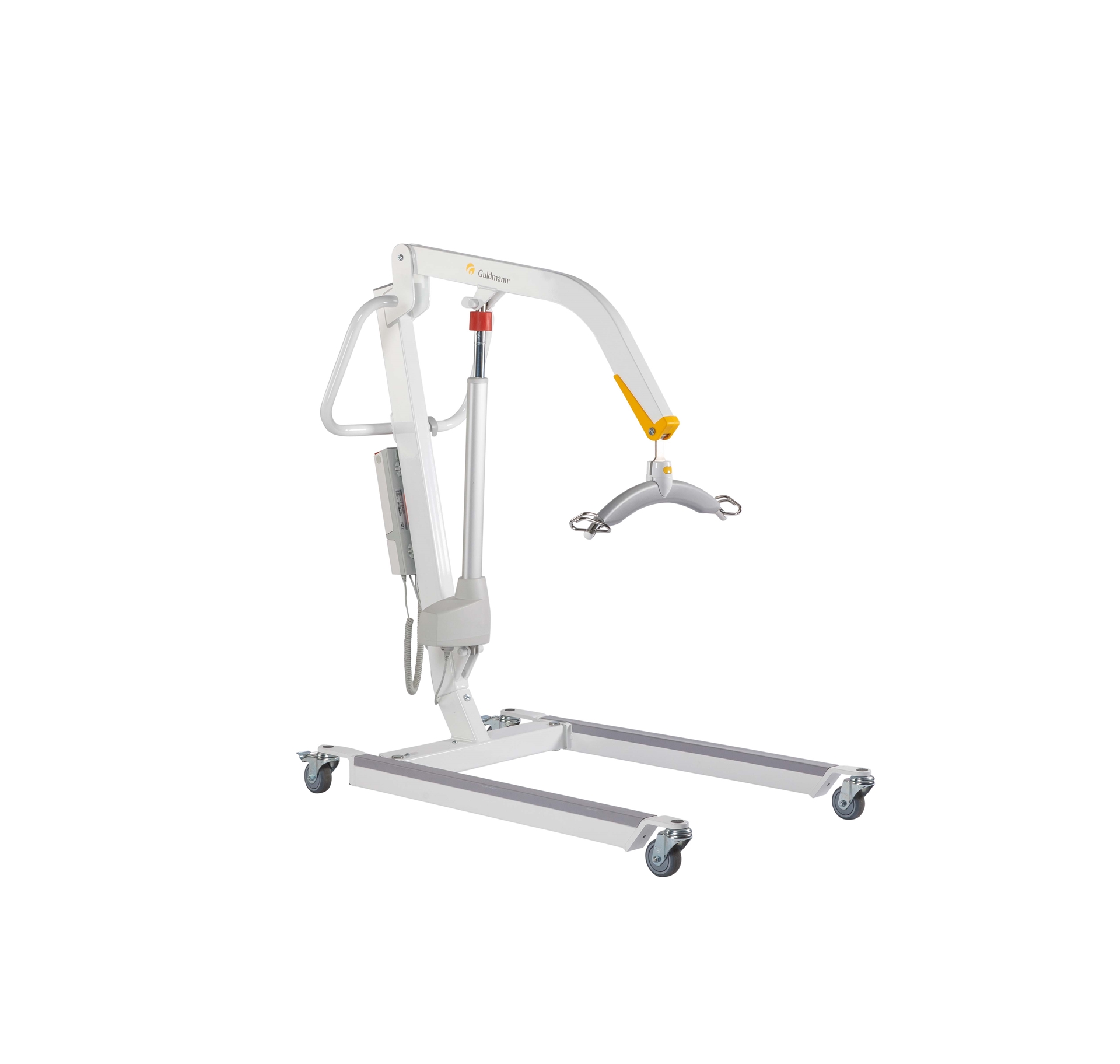

GL5.2 Mobile personal lifter is the floor-based alternative to the ceiling-mounted lifting and transfer systems. It is available in two variants with a lifting capacity of resp. 155 and 205 kg. They have a lifting height of 1759 mm and it is possible to lift a person directly from the floor.
Classification
12 36 03 04 - Mobile hoists for transferring a person in sitting position with sling seats
BrochureThe product series contains 1 product.
The product series also includes a discontinued product. Include discontinued products.
Product 1 of 1
GL5.2 205 kg
HMI-no.
131674
Article-no.
562308
Registration date
13-01-2022
Last updated
17-10-2024
Properties
Ingress protection class for water
IPX4
0-9 (IPX0-IPX9) according to the standard for degrees of protection provided by enclosures (IEC 60529)
Properties
Width adjustment of base
Ja, elektrisk
Properties
Width adjustable movement
V-formet
Properties
Lifting movement
Bueformet
The distance between the central supension point and the mast is constant with a vertical lifting movement. With a curved lifting movement the distance varies.
Foldable
No
Can be disassembled without tools
Yes
Can lift from floor level
Yes
Standing mobile hoist unit available
No
Integrated battery charger
Yes
Emergency lowering function
Yes
Measures
User weight, max
205
kg
Internal width of base, max
130
cm
Measured with the base in the widest position
External width of base in the most narrow position
69.5
cm
Height of base at front
14.3
cm
Turning diameter
132.5
cm
Diameter of the narrowest circle encompassing the extreme points of the hoist, when it is turned 360 degrees without beeing reversed.
Weight of heaviest main part
22
kg
Maintenance frequency
12
måneder
Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type
EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device
