iCHAIR XXL

iCHAIR XXL

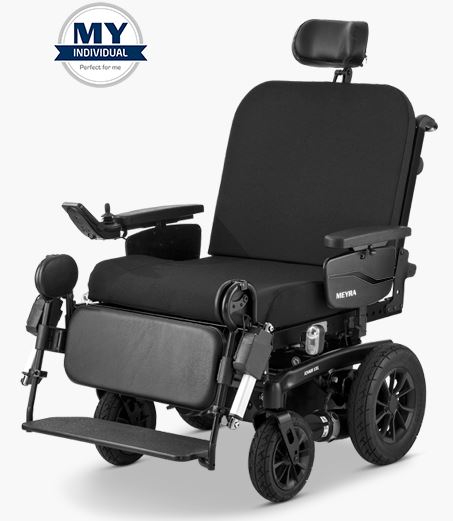

iCHAIR XXL is the largest model in the iCHAIR series. The modular seat system allows adjustment of seat width and depth to accommodate users with larger body size. The model has a maximum user weight of 200 kg and meets the requirements for this segment.

Classification
12 23 06 08 - Powered wheelchairs, powered steering, class B (for indoor and outdoor use)

Documents
Brochure
User manual


The product series contains 1 product.

Product 1 of 1
iCHAIR XXL


HMI-no.
132125
Article-no.
iChair XXL

Registration date
08-03-2022
Last updated
11-09-2025

Properties
Programmable
Yes
Elevating seat
No
Powered recline
Yes
Powered tilt
Yes
Powered legrests
Yes
Optional motorized attendant control
Yes
Suspension
Yes
Front-wheel-driven
No
Mid-wheel-driven
No
Rear-wheel-driven
Yes
Can be used as seat in a car
Yes

Measures
User weight, max
200
kg
External width
92
cm
Measured where widest
External length
85
cm
Maximum external length with the seat in an upright position. Measured without leg supports
Weight
130
kg
Speed, max
10
km/t
Driving distance range, fully charged
35
km
The theoretical driving distance range as calculated through laboratory testing.
Seat height, min
46
cm
The vertical distance between the floor and the seat surface measured at the front edge of the seat. Measured with the seat in the lowest position.
Seat height, max
63
cm
The vertical distance between the floor and the seat surface measured at the front edge of the seat. Measured with the seat in the highest position.
Back rest recline, max
50
°
Recline of back rest from an upright position.
Tilt-in-space forward
0
°
Measured from the horizontal position.
Tilt-in-space back
18
°
Measured from the horizontal position.
Ground clearance
6
cm
Slope, max
15
°
Climbs obstacles of max
6
cm

Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type

EU product safety regulation
No information about CE-marking
The supplier has not provided any information about CE-marking of the product. Explain CE-marking
