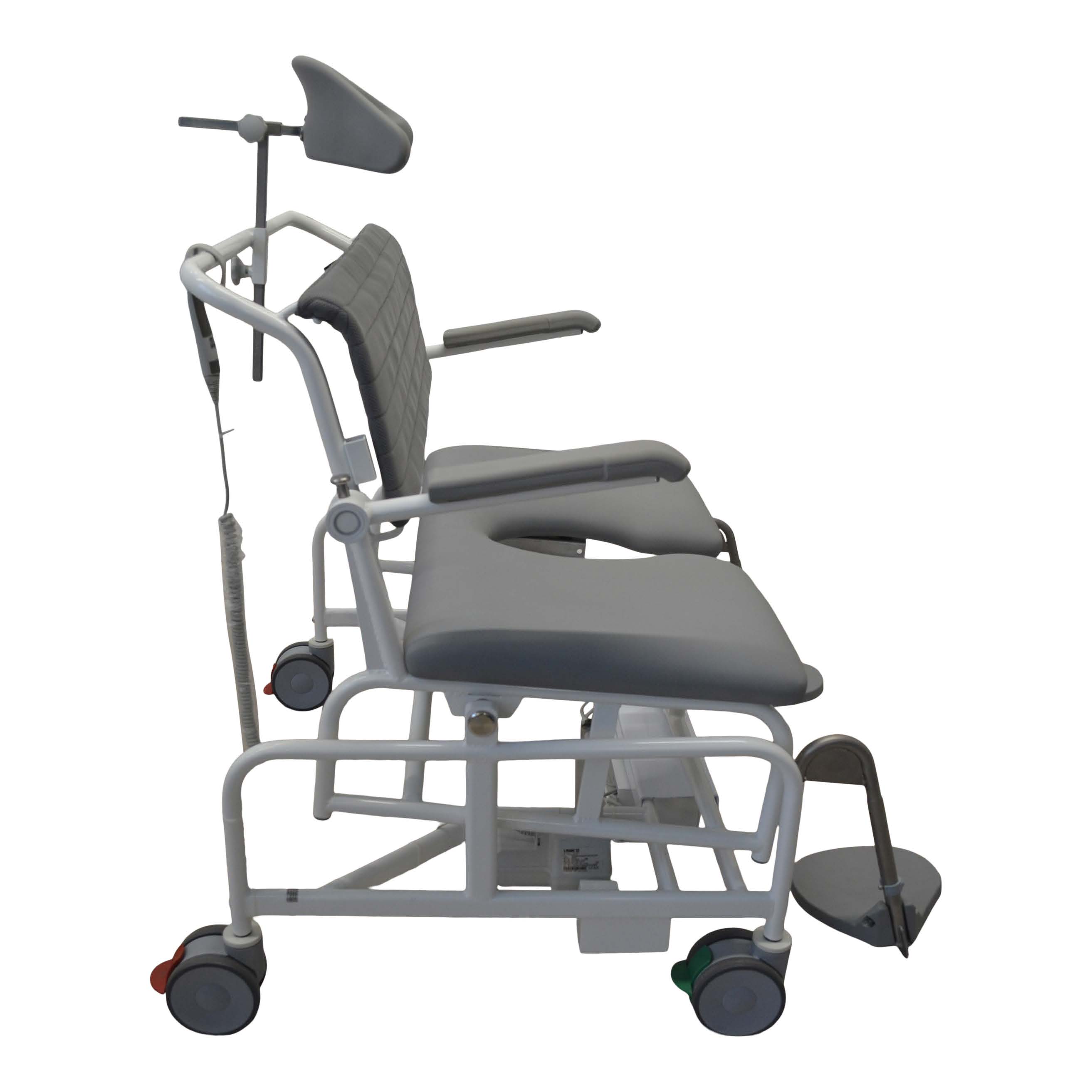

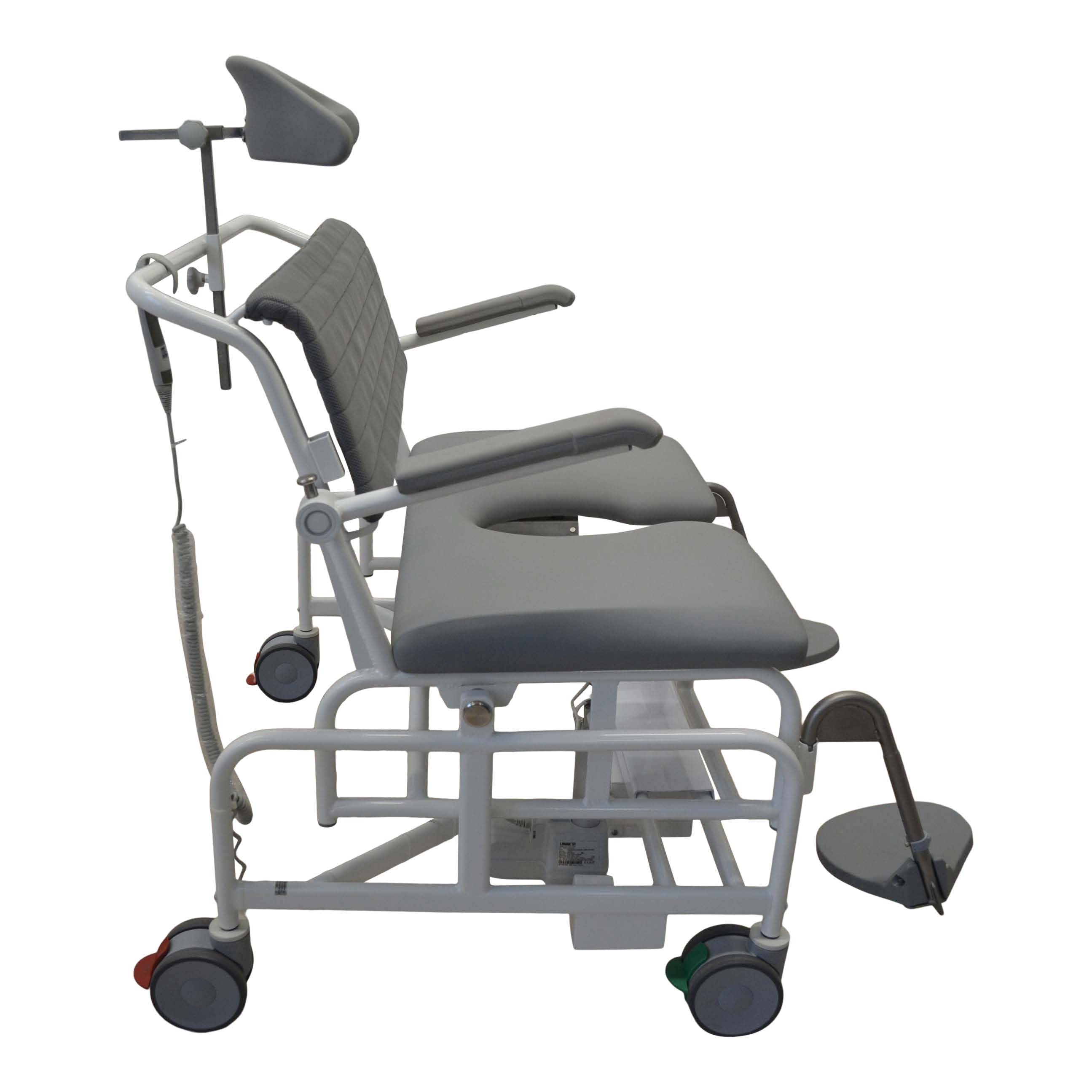

Bariatric shower/commode chair M2 400 kg Wide El-Tip




Classification
09 12 03 11 - Commode shower chairs with wheels, tilt and electrical functions

Documents
Brochure
User manual
Accessories catalogue
Spare part catalogue


The product series contains 1 product.

Product 1 of 1
M2 400 kg Wide El-Tip


HMI-no.
134561
Article-no.
310242

Registration date
08-12-2022
Last updated
11-09-2025

Properties
Height adjustable
Nej
Tension adjustable back rest upholstery
Yes
Can be used with standard wall-mounted toilets (without extension)
No
Possibility to change position of armrest to allow sideways transfer
Yes

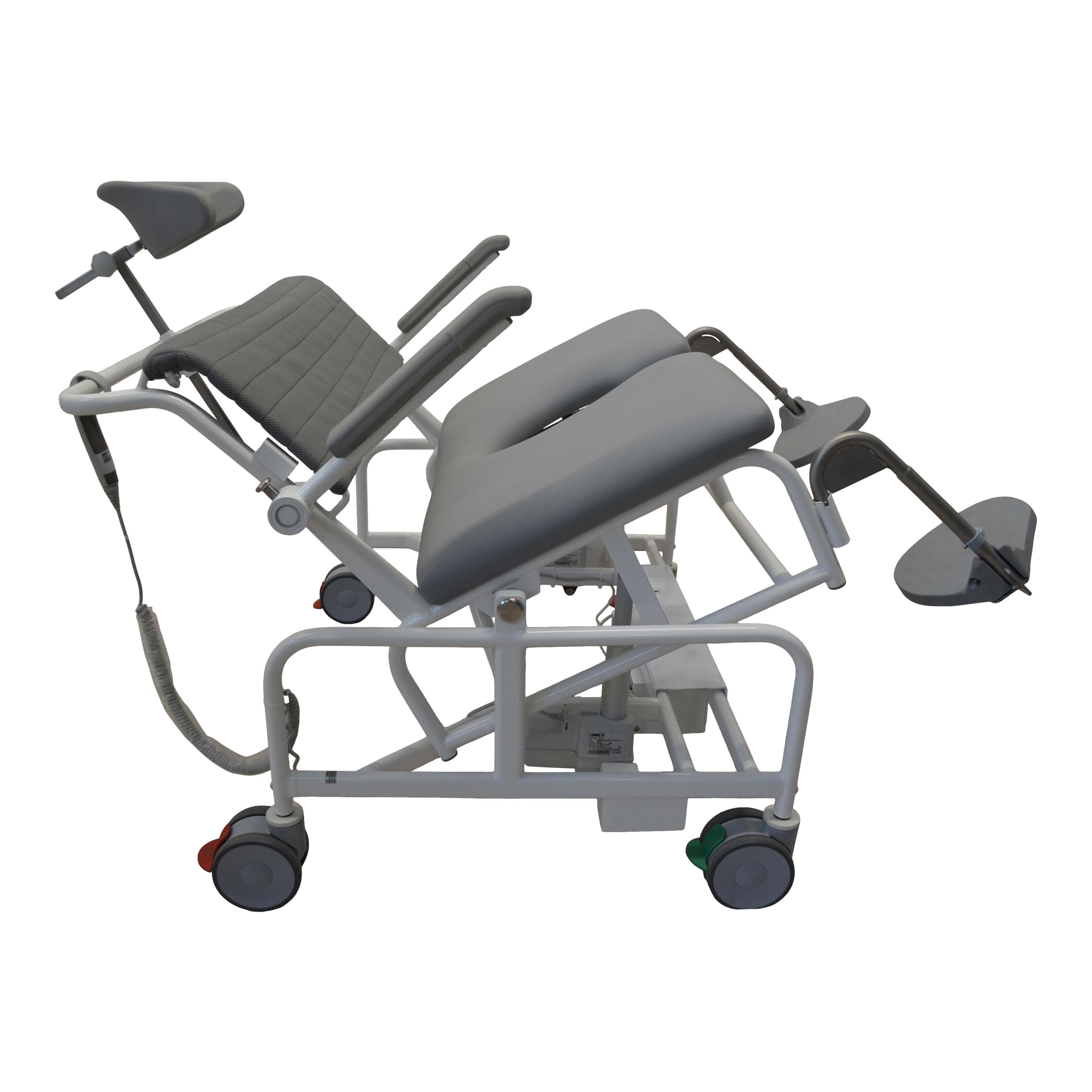

Powered tilt
Yes
Tilt-in-space dissociated from the height adjustment
Yes
The function of the tilt-in-space is separated from the hydraulic or electrical function of the height adjustment.
Head support
Yes
Battery chargeable separated from the product
No
Emergency stopping function
No
Fold-up foot supports
Yes
Height adjustable legrests
Yes
Elevating legrests
No
Legrest position may be changed to facililtate hygiene and transfer
Yes

Measures
User weight, max
400
kg
Total width
103
cm
Ground clearance
46
cm
Measured from the floor to the lowest point under the seat. Measured without bedpan/collection receptacle.
Width between arm supports
89
cm
Smallest distance measured between the inside of the arm supports. If the arm supports are adjustable, this is measured with the arm supports in the widest position.
Seat depth
51
cm
If the seat depth is adjustable, this is the maximum seat depth
Wheel diameter
125
mm
Number of wheels with brake
3
Seat height, min
56
cm
Seat height, max
56
cm
Tilt-in-space forward
5
°
Measured from the horizontal position.
Tilt-in-space back
30
°
Measured from the horizontal position.
Height of push handles/push bar, min.
100
cm
Measured from the floor to the upper surface of the grip. According to ISO 17966:2016 it shall be possible to push the chair with the grip 90 cm above the floor.
Height of push handles/push bar, max.
100
cm
Measured from the floor to the upper surface of the heigher grip with the chair in the highest position
Ingress protection class for water
6
IP
0-9 (IPX0-IPX9) according to the standard for degrees of protection provided by enclosures (IEC 60529)

Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type

EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device
