Heartway-HP8X

Heartway-HP8X

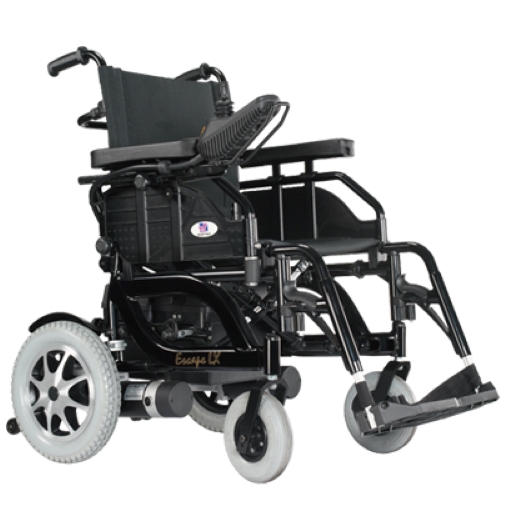

Heartway-HP8X is a comfortable electric wheelchair for everyday use and for a trip out into the open. It is equipped with large wheels, so you can drive on gravel, forest paths and grass. The wheelchair is manoeuvrable.

Classification
12 23 06 08 - Powered wheelchairs, powered steering, class B (for indoor and outdoor use)

Documents
User manual


The product series contains 1 product.

Product 1 of 1
Heartway-HP8X


HMI-no.
136111

Registration date
11-03-2023
Last updated
11-09-2025

Properties
Programmable
Yes
Elevating seat
No
Powered recline
No
Powered tilt
No
Powered legrests
No
Optional motorized attendant control
Yes
Suspension
Yes
Front-wheel-driven
No
Mid-wheel-driven
No
Rear-wheel-driven
Yes
Can be used as seat in a car
No

Measures
User weight, max
135
kg
External width
64
cm
Measured where widest
External length
185
cm
Maximum external length with the seat in an upright position. Measured without leg supports
Weight
66
kg
Speed, max
8
km/t
Driving distance range, fully charged
35
km
The theoretical driving distance range as calculated through laboratory testing.
Seat height, min
50
cm
The vertical distance between the floor and the seat surface measured at the front edge of the seat. Measured with the seat in the lowest position.
Seat height, max
50
cm
The vertical distance between the floor and the seat surface measured at the front edge of the seat. Measured with the seat in the highest position.
Back rest recline, max
20
°
Recline of back rest from an upright position.
Tilt-in-space forward
0
°
Measured from the horizontal position.
Tilt-in-space back
0
°
Measured from the horizontal position.
Ground clearance
8
cm
Slope, max
0
°
Climbs obstacles of max
5
cm

Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type

EU product safety regulation
No information about CE-marking
The supplier has not provided any information about CE-marking of the product. Explain CE-marking

Other specifications
Mounted with auxiliary control.
