TSN HS-328




Classification
12 23 03 05 - Powered wheelchair, manual steering, class A (primarily for indoor use)



The product series contains 1 product.

Product 1 of 1
TSN HS-328


HMI-no.
136634
Article-no.
TSN/HS-328

Registration date
17-04-2023
Last updated
22-09-2025

Properties
Number of wheels
4
Programmable
No
Suspension
Yes
Can be used as seat in a car
No

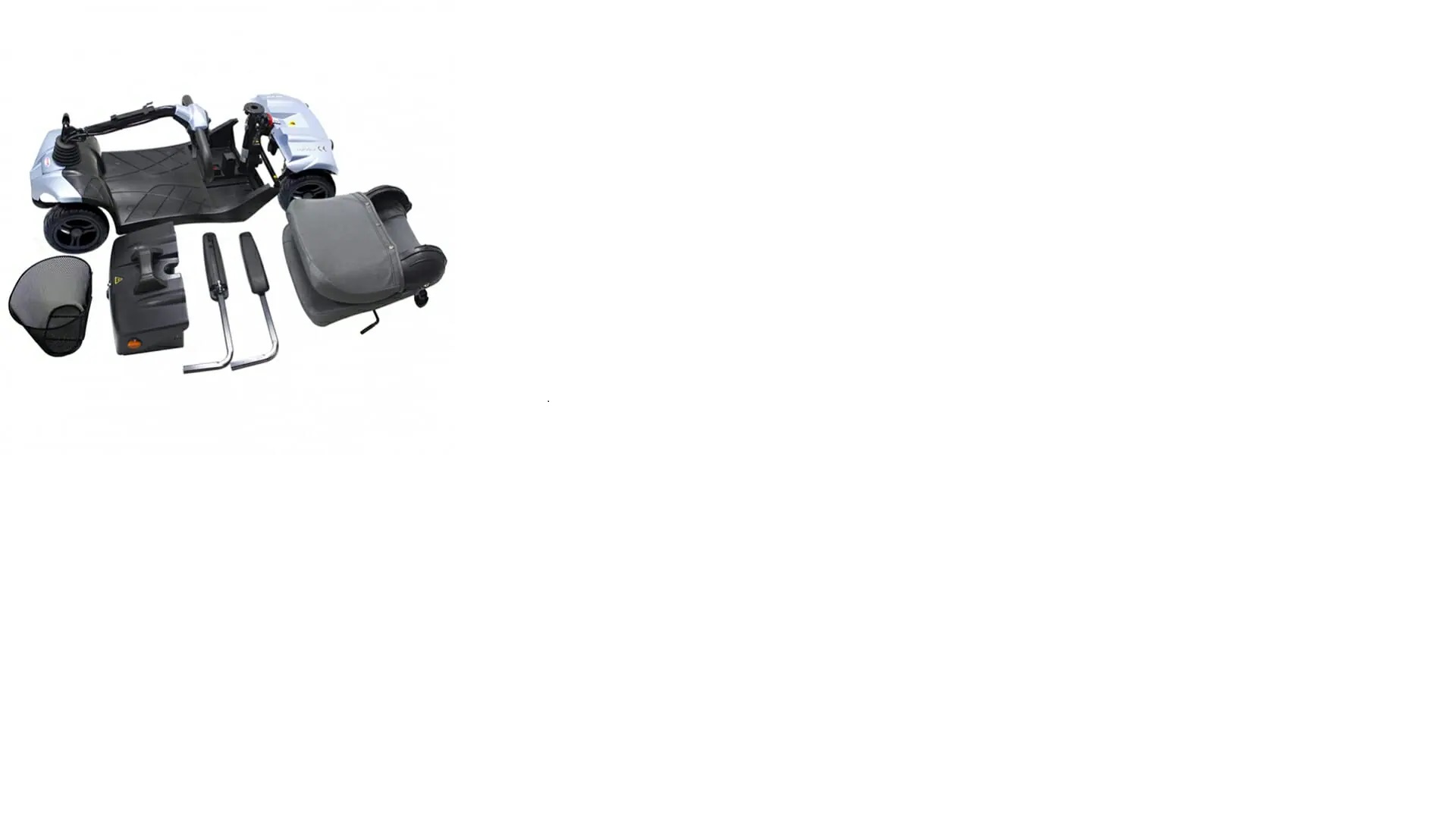

Can be disassembled without tools
Yes
With cubicle
No

Measures
User weight, max
136
kg
Width
59
cm
Maximum external width.
Length
112
cm
Maximum external length without extra accessories.
Weight
55
kg
Seat height, min
60
cm
The vertical distance between the foot rest and the seat surface measured at the front edge of the seat. Measured with the seat in the lowest position.
Seat height, max
67
cm
The vertical distance between the foot rest and the seat surface measured at the front edge of the seat. Measured with the seat in the highest position.
Speed, max
8
km/t
Driving distance range, fully charged
17.5
km
The theoretical driving distance range as calculated through laboratory testing.
Ground clearance
5.2
cm
Slope, max
8
°
Climbs obstacles of max
5
cm
Weight of heaviest main part
15.5
kg

Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type

EU product safety regulation
No information about CE-marking
The supplier has not provided any information about CE-marking of the product. Explain CE-marking
