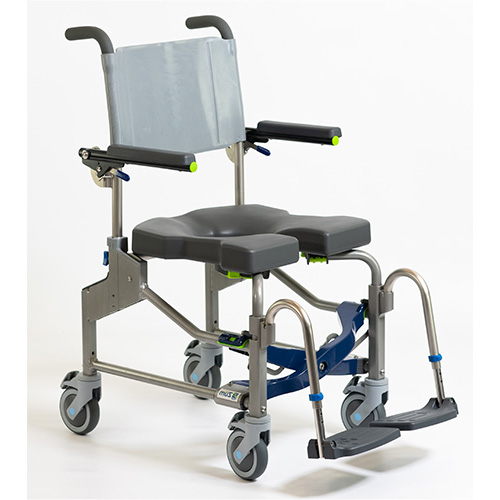

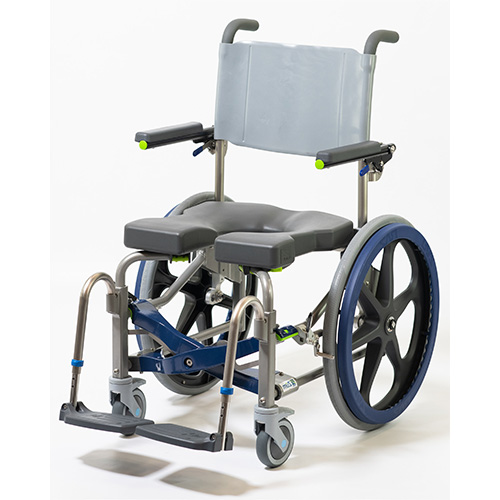

Raz Züm SP



Züm is an easy-to-clean and foldable shower and commode chair. Züm is available in both the attendant-operated Züm-AP (Attendant Propel) and the user- and attendant-operated Züm-SP (Self-Propel) models. It is one of the first mobile shower chairs with a folding chair with a frame. This provides optimal toilet adjustment and better frame rigidity.

Classification
09 12 03 12 - Commode wheelchairs

Documents
Brochure
User manual


The product series contains 1 product.

Product 1 of 1
Raz Züm SP


HMI-no.
136881
Article-no.
840720000762

Registration date
12-05-2023
Last updated
11-09-2025

Properties
Tension adjustable back rest upholstery
Yes
Can be used with standard wall-mounted toilets (without extension)
Yes
Possibility to change position of armrest to allow sideways transfer
Yes
Head support
No
Fold-up foot supports
Yes
Height adjustable legrests
Yes
Elevating legrests
Yes
Legrest position may be changed to facililtate hygiene and transfer
Yes

Measures
User weight, max
160
kg
Total width
64
cm
Ground clearance
61
cm
Measured from the floor to the lowest point under the seat. Measured without bedpan/collection receptacle.
Width between arm supports
46
cm
Smallest distance measured between the inside of the arm supports. If the arm supports are adjustable, this is measured with the arm supports in the widest position.
Seat depth
43
cm
If the seat depth is adjustable, this is the maximum seat depth
Tilt-in-space forward
0
°
Measured from the horizontal position.
Tilt-in-space back
0
°
Measured from the horizontal position.
Number of wheels with brake
4
Seat height, min
48
cm
Seat height, max
61
cm
Height of push handles/push bar, min.
104
cm
Measured from the floor to the upper surface of the grip. According to ISO 17966:2016 it shall be possible to push the chair with the grip 90 cm above the floor.
Height of push handles/push bar, max.
115
cm
Measured from the floor to the upper surface of the heigher grip with the chair in the highest position

Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type

EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device

Other specifications
SP - self propel.
Gimbals can be added to the seat to raise the front of the seat a few centimetres.
