R82 Heron toilet- and bathing chair, hydraulic

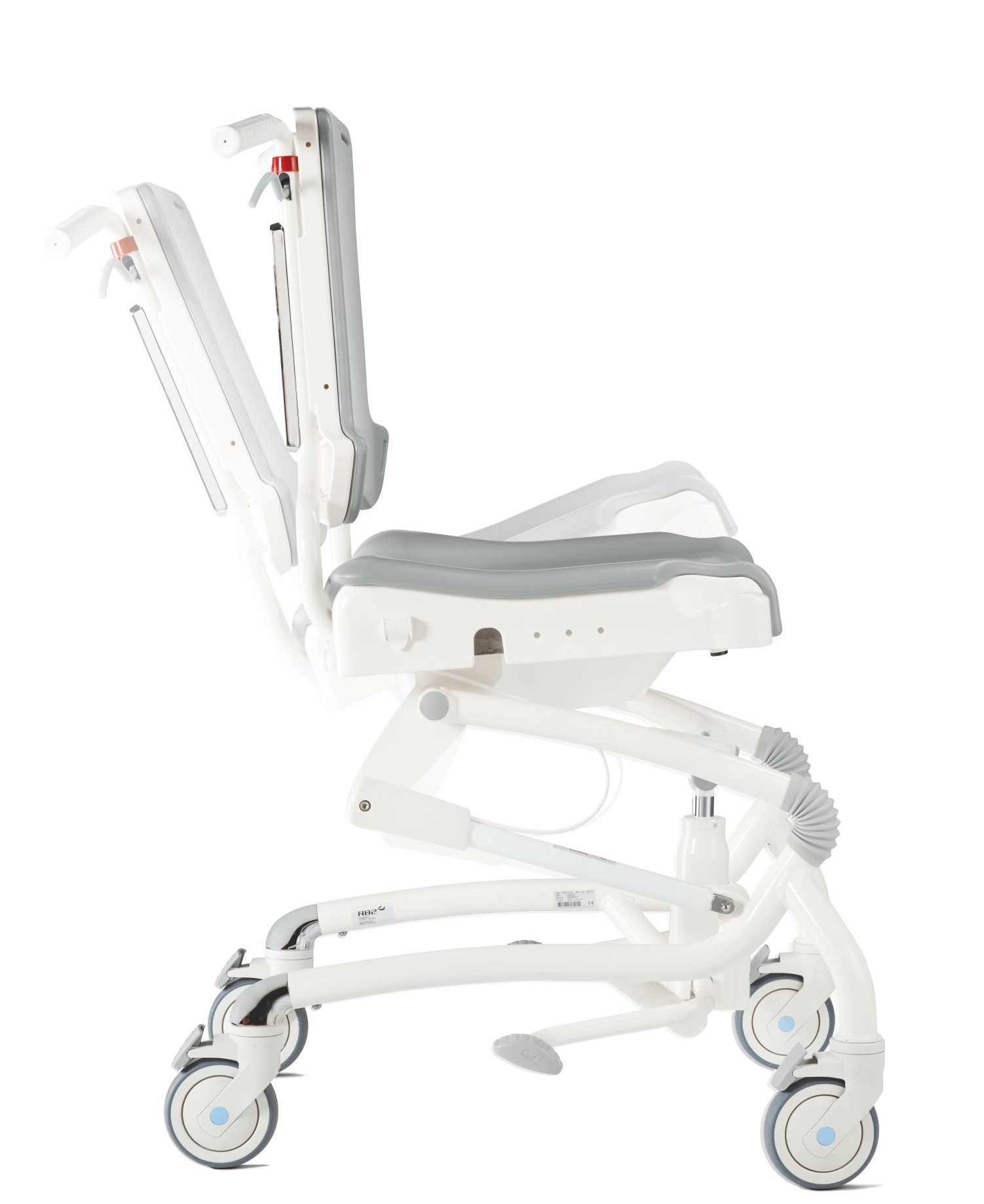

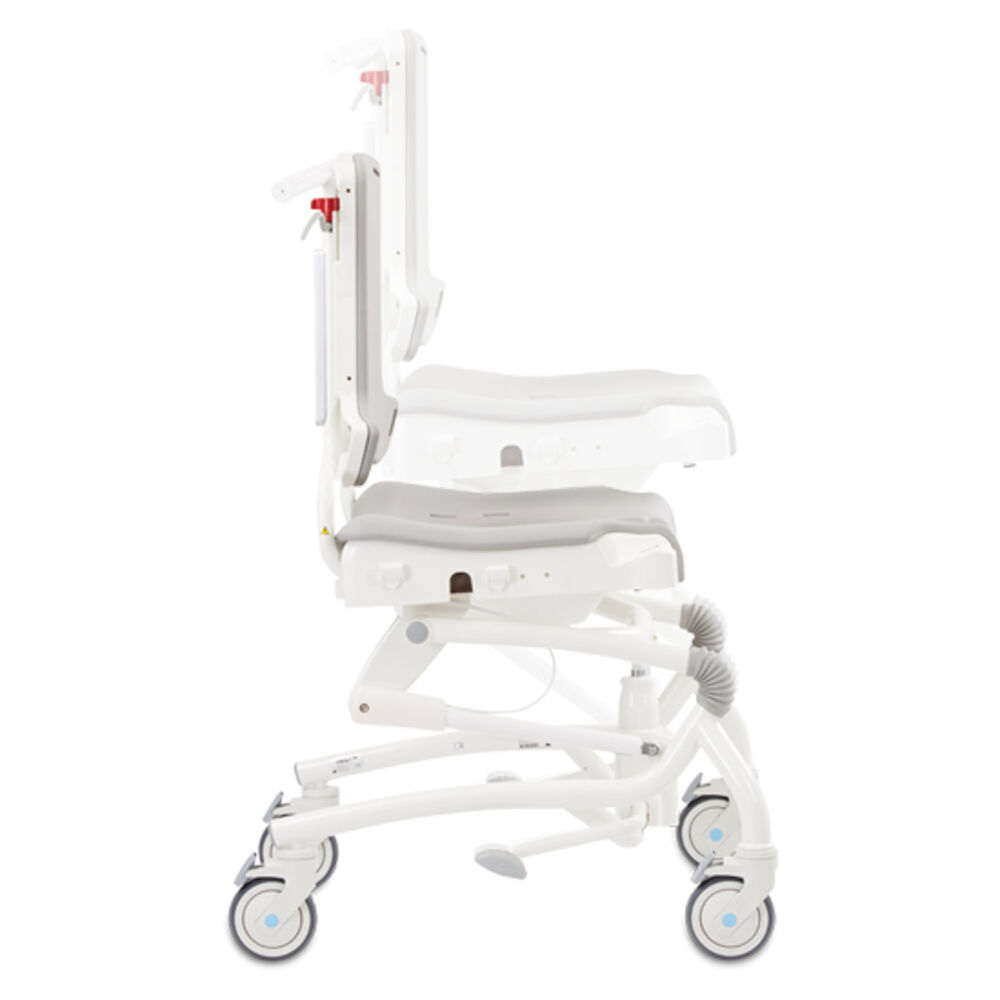

The Heron features multiple functionalities that improve both the user and caregiver experience. The seat is ergonomically correct, meaning it can be tilted and the back reclined without any disadvantage for the user. During recline, the anatomical pivot point at the axis of the hips is maintained. This provides the user more comfort when seate
Classification
09 12 03 10 - Commode shower chairs with wheels and tilt, no electrical functions
The product series contains 1 product.
Product 1 of 1
Heron with hydrailic lift
HMI-no.
84617
Article-no.
31880505-01
Registration date
03-07-2014
Last updated
12-12-2024
Properties
Height adjustable
Hydraulik/gas
Tension adjustable back rest upholstery
No
Can be used with standard wall-mounted toilets (without extension)
Yes
Intended for children
Yes
Products for children must comply with the specific demands for safety as stated in certain standards. It is the supplier of the product who has stated that the product is intended for children. The National Board of Social Services holds no responsibility in relation to this assessment.
Possibility to change position of armrest to allow sideways transfer
Yes
Head support
Yes
Fold-up foot supports
Yes
Height adjustable legrests
Yes
Elevating legrests
No
Legrest position may be changed to facililtate hygiene and transfer
Yes
Measures
User weight, max
100
kg
Total width
67
cm
Ground clearance
50
cm
Measured from the floor to the lowest point under the seat. Measured without bedpan/collection receptacle.
Width between arm supports
55
cm
Smallest distance measured between the inside of the arm supports. If the arm supports are adjustable, this is measured with the arm supports in the widest position.
Seat depth
45
cm
If the seat depth is adjustable, this is the maximum seat depth
Toilet opening width
13
cm
Seat height, min
51
cm
Seat height, max
78
cm
Tilt-in-space forward
5
°
Measured from the horizontal position.
Tilt-in-space back
25
°
Measured from the horizontal position.
Number of wheels with brake
4
Wheel diameter
125
mm
Height of push handles/push bar, min.
108
cm
Measured from the floor to the upper surface of the grip. According to ISO 17966:2016 it shall be possible to push the chair with the grip 90 cm above the floor.
Height of push handles/push bar, max.
135
cm
Measured from the floor to the upper surface of the heigher grip with the chair in the highest position
Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type
EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device
EU declaration of conformity for HMI-no. 84617
