W5 Suspension

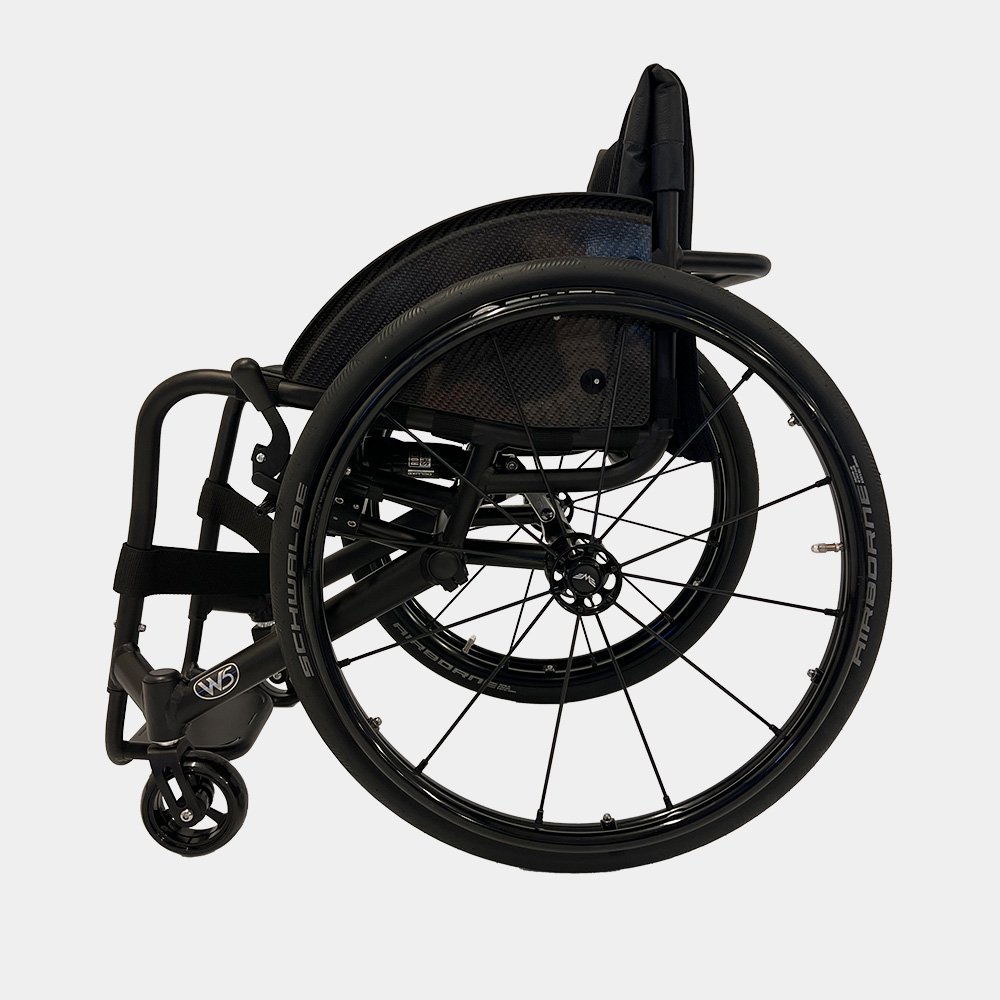

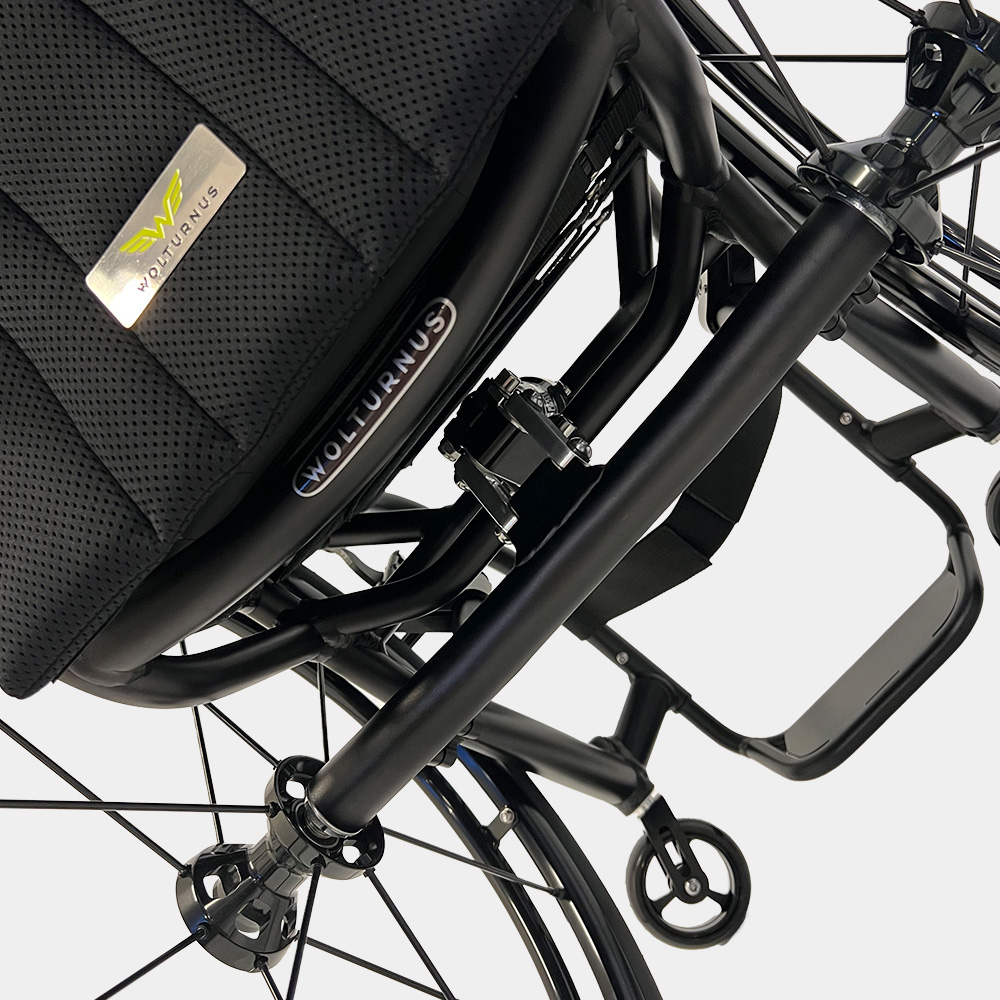

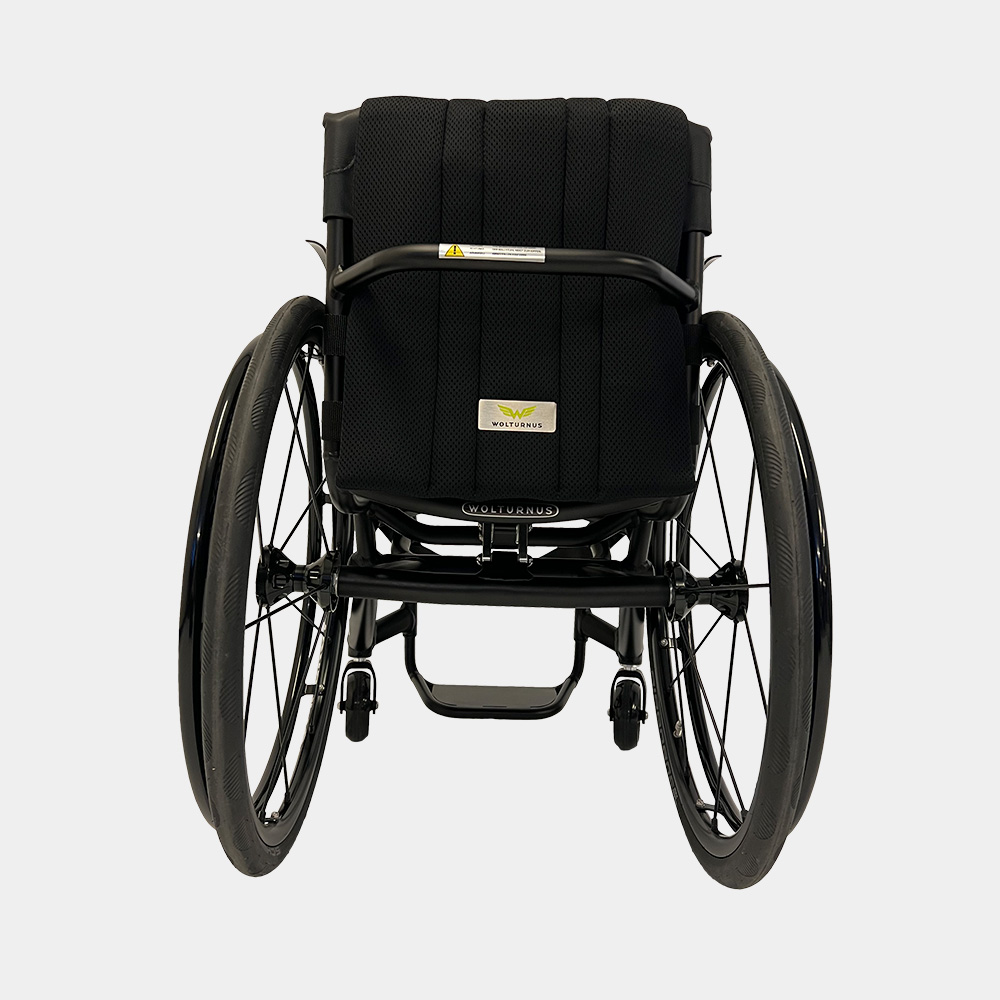

W5 Suspension is a wheelchair with a closed box frame made of 7020 aluminum. The wheelchair is designed with an air-sprung rear axle with Wolturnus Link system, which is connected to the wheelchairs rear wheels. The wheels flex when the user drives over uneven surfaces and bumps, providing a smoother ride.

Classification
12 22 03 14 - Manual wheelchairs with rigid frame, customized

Documents
Brochure
User manual


The product series contains 1 product.

Product 1 of 1
W5 Suspension


HMI-no.
137035
Article-no.
111000006000

Registration date
07-06-2023
Last updated
21-11-2023

Properties
Number of wheels
4
Intended for children
No
info
Products for children must comply with the specific demands for safety as stated in certain standards. It is the supplier of the product who has stated that the product is intended for children. The National Board of Social Services holds no responsibility in relation to this assessment.
Adjustable seat angle
No
Balance point adjustable
Yes
Available with hard base
Yes
info
As opposed to sling seat
Back rest angle adjustable
No
Height adjustable back rest
Yes
Push handles
Yes
Front-wheel-driven
No
Intended for fastening in a car
Yes

Measures
User weight, max
150
kg
Seat height, min
36
cm
Seat height, max
55
cm
Back rest height, min
25
cm
Back rest height, max
46
cm
Total width
68
cm
Total length
83
cm
Weight
6.5
kg
info
The stated weight of the wheelchair is incl. wheels and leg supports.
Seat width, min
32
cm
Seat width, max
50
cm
Seat depth, min
34
cm
Seat depth, max
52
cm

Test information
No information about tests according to standards info
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type

EU product safety regulation info
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device
