M Corpus VS R-net

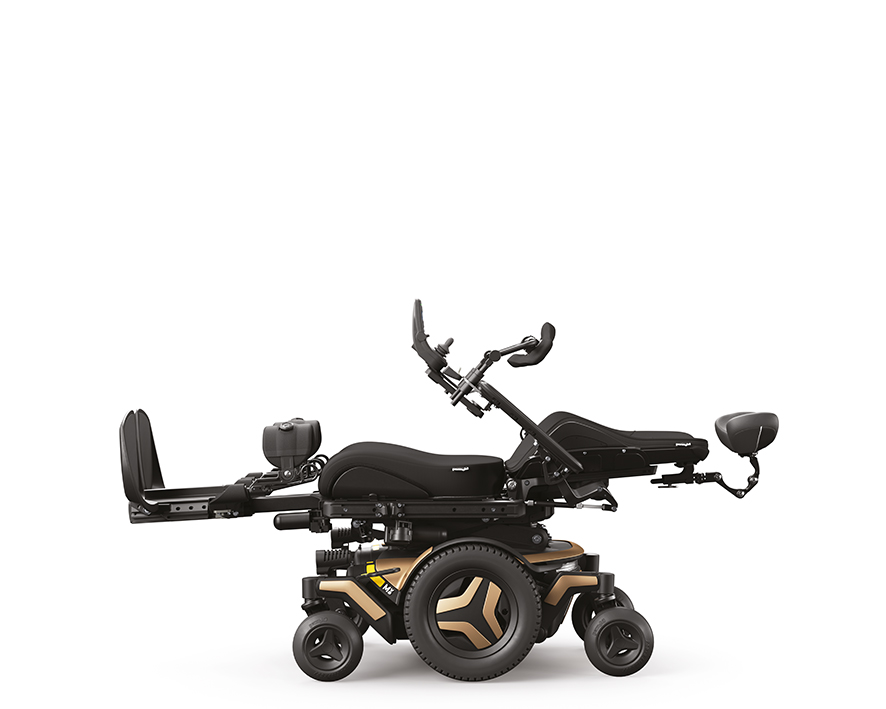

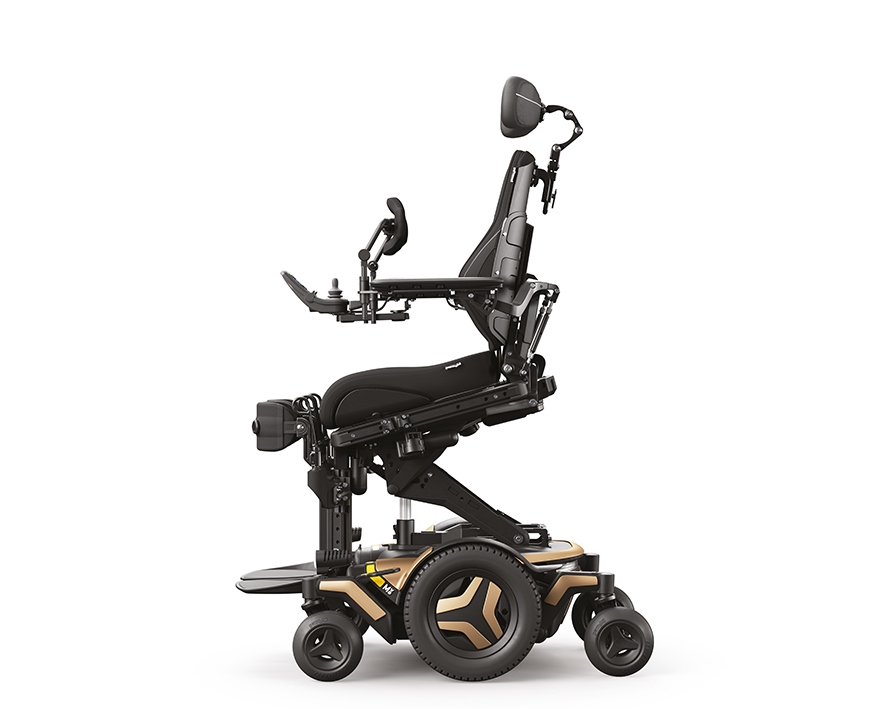

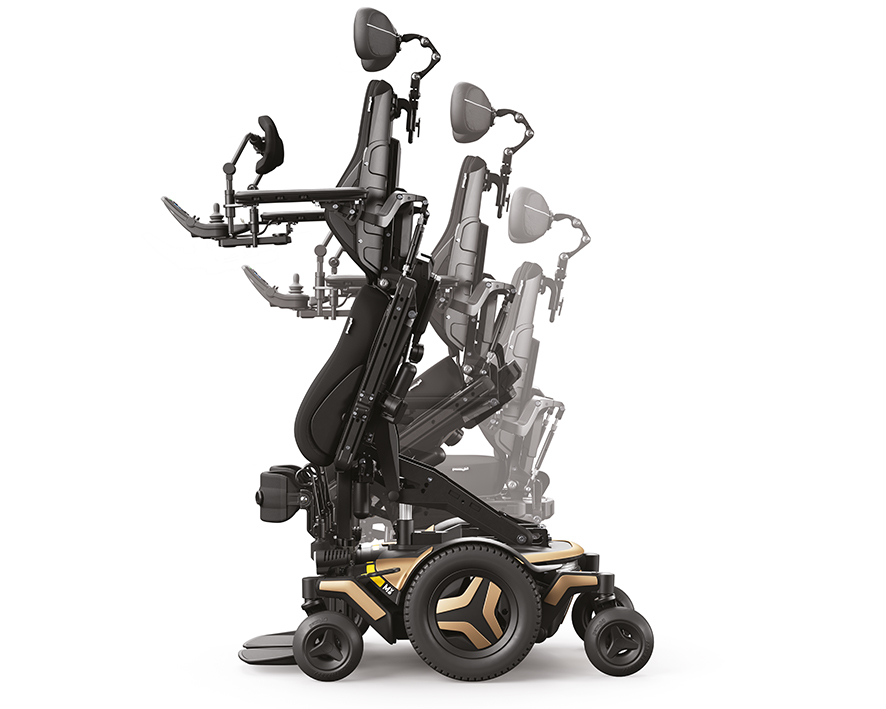

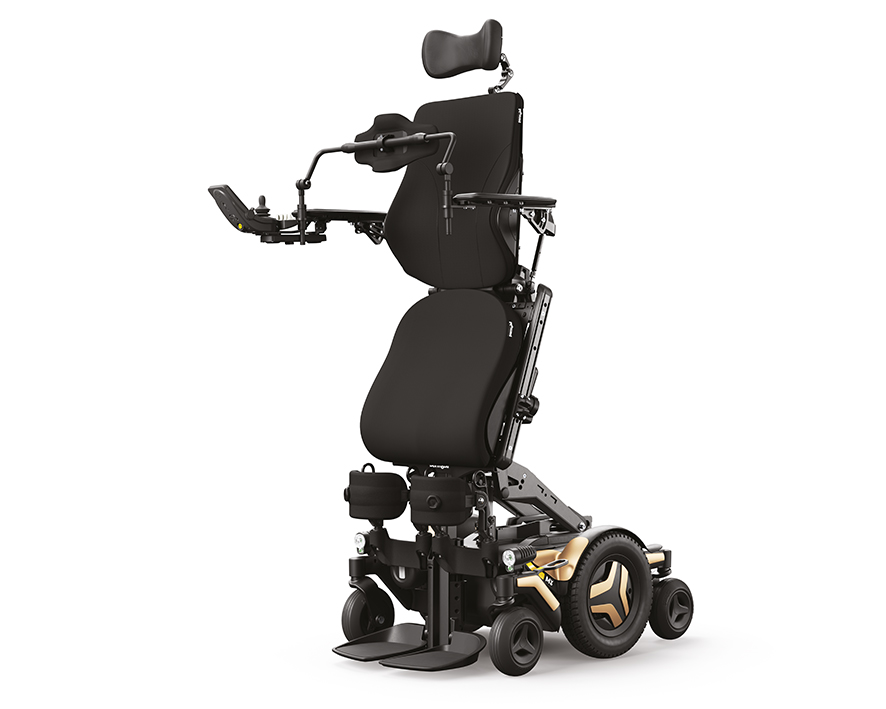

The M Corpus VS adds a new dimension to standing functionality with the maneuverability of a CWD chassis. All advanced seat functions incl. the standing function and driving parameters are easily set with the QuickConfig app based on individual needs. Pivoting knee supports with an easily accessible release mechanism are easily moved when moving.

Classification
12 23 06 08 - Powered wheelchairs, powered steering, class B (for indoor and outdoor use)

Documents
Brochure


The product series contains 1 product.

Product 1 of 1
M Corpus VS PP


HMI-no.
137503
Article-no.
109846-99-0

Registration date
21-07-2023
Last updated
18-09-2025

Properties
Programmable
Yes
Elevating seat
Yes
Powered recline
Yes
Powered tilt
Yes
Powered legrests
Yes
Optional motorized attendant control
Yes
Suspension
Yes
Front-wheel-driven
No
Mid-wheel-driven
Yes
Rear-wheel-driven
No
Can be used as seat in a car
Yes

Measures
User weight, max
120
kg
External width
65
cm
Measured where widest
External length
93
cm
Maximum external length with the seat in an upright position. Measured without leg supports
Weight
201
kg
Speed, max
10
km/t
Driving distance range, fully charged
40
km
The theoretical driving distance range as calculated through laboratory testing.
Seat height, min
45
cm
The vertical distance between the floor and the seat surface measured at the front edge of the seat. Measured with the seat in the lowest position.
Seat height, max
75
cm
The vertical distance between the floor and the seat surface measured at the front edge of the seat. Measured with the seat in the highest position.
Back rest recline, max
180
°
Recline of back rest from an upright position.
Tilt-in-space forward
45
°
Measured from the horizontal position.
Tilt-in-space back
50
°
Measured from the horizontal position.
Ground clearance
8
cm
Slope, max
12
°
Climbs obstacles of max
6
cm

Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type

EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device
EU declaration of conformity for HMI-no. 137503
