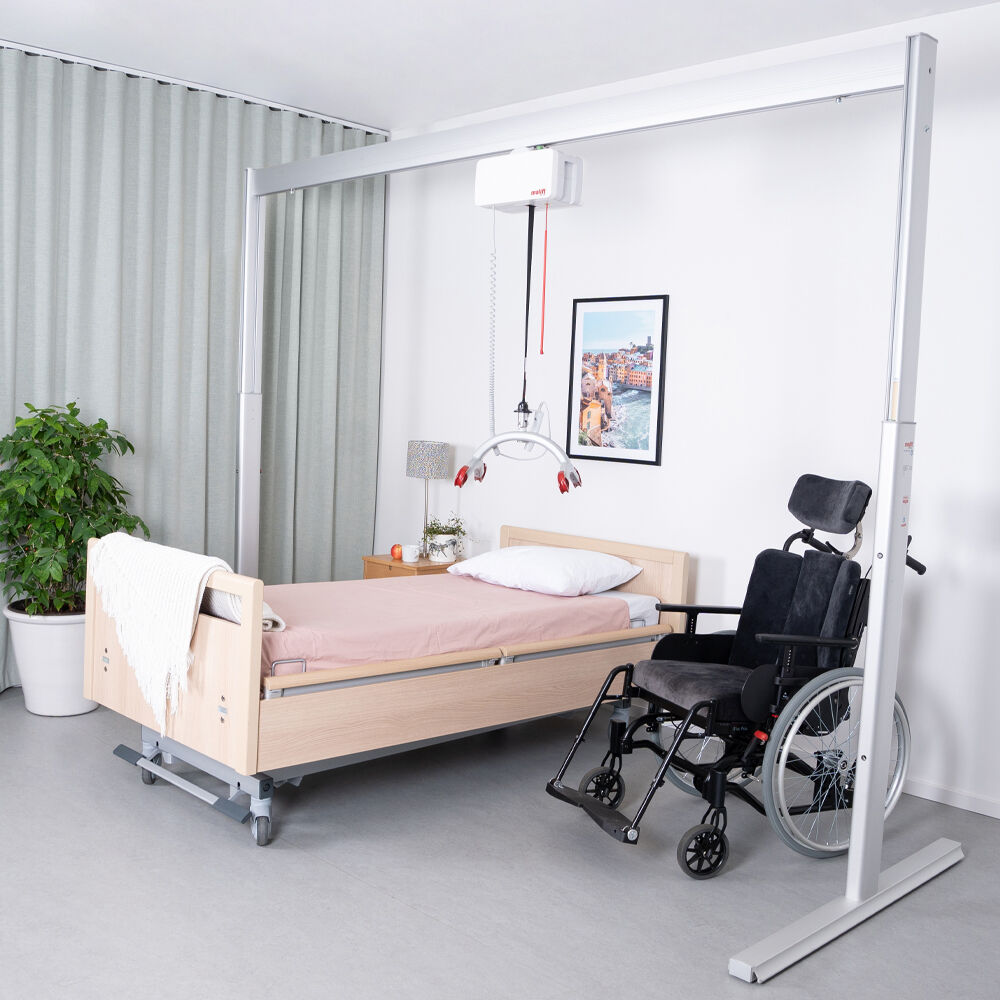

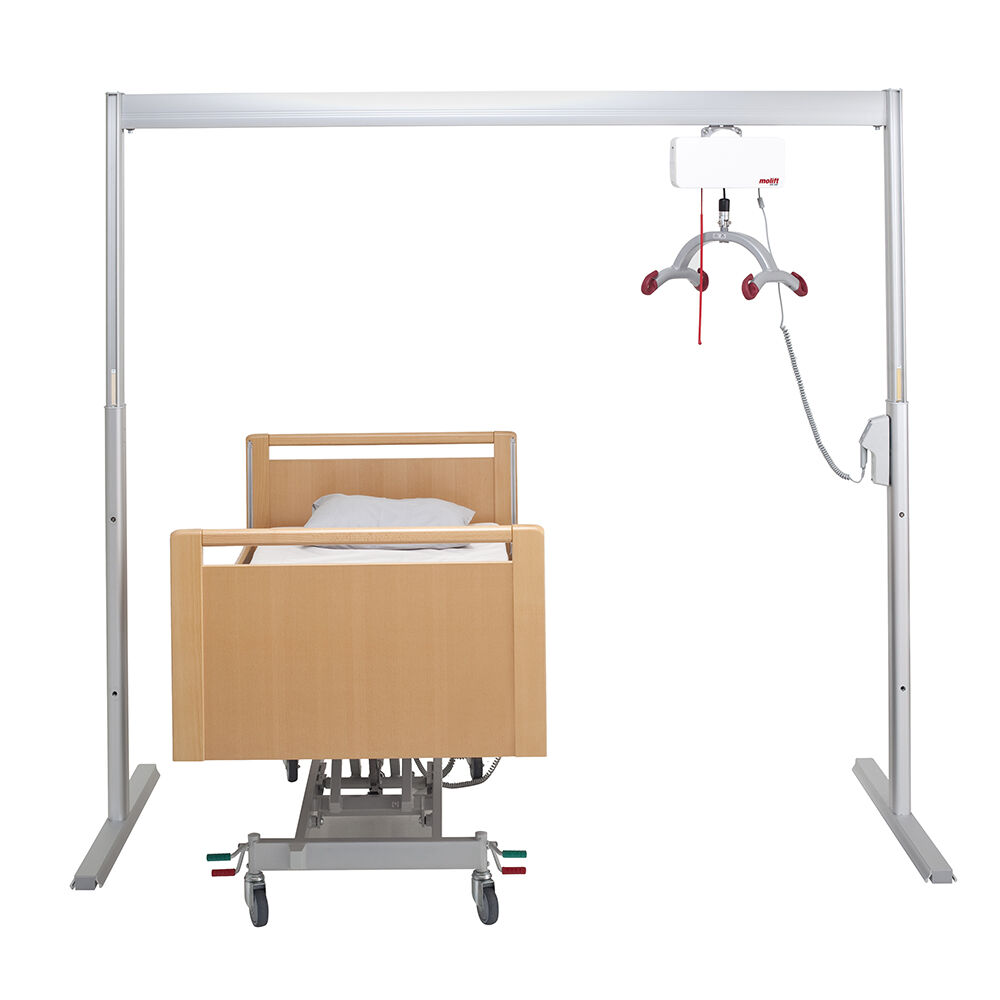

Molift Duo a freestanding traverse gantry for ceiling hoists
Molift Duo is a free-standing lifting unit/rail system that offers a 2-leg traverse system, which is a solution for temporary lifting needs or when the space is not intended for permanent installations. The rail system is easy to install without mounting additional rails on walls or ceilings. Use with Molift Air Ceiling hoist and a sling.
Classification
12 36 18 03 - Stationary free-standing hoists
Documents
BrochureThe product series contains 3 products.
Product 1 of 3
Molift Duo 2,5 meter freestanding rail system
HMI-no.
137855
Article-no.
1600015
Registration date
21-08-2023
Last updated
21-10-2024
Properties
Ingress protection class for water
IPX4
0-9 (IPX0-IPX9) according to the standard for degrees of protection provided by enclosures (IEC 60529)
Electrical lifting mechanism
Yes
Electrical horizontal movement
No
Room covering rail system
Yes
External battery charger
Yes
Charging station at track
No
Charging liner
No
Emergency lowering function, electrically operated
Yes
Emergency lowering function, manually operated
Yes
Measures
User weight, max
300
kg
Max lifting velocity, loaded
0.05
m/s
Max length of rail
300
cm
Min. length of rail
300
cm
Max height to top of rail
255
cm
Min. height to top of rail
225
cm
Min. distance from top of rail to central suspension point
49.7
cm
Weight of lifting machinery
7.5
kg
Maintenance frequency
12
måneder
Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type
EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device
Product 2 of 3
Molift Duo 3 meter fritstående
HMI-no.
137858
Article-no.
1600017
Registration date
21-08-2023
Last updated
21-11-2023
Properties
Ingress protection class for water
IPX4
0-9 (IPX0-IPX9) according to the standard for degrees of protection provided by enclosures (IEC 60529)
Electrical lifting mechanism
Yes
Electrical horizontal movement
No
Room covering rail system
Yes
External battery charger
Yes
Charging station at track
No
Charging liner
No
Emergency lowering function, electrically operated
Yes
Emergency lowering function, manually operated
Yes
Measures
User weight, max
300
kg
Max lifting velocity, loaded
0.05
m/s
Max length of rail
300
cm
Min. length of rail
300
cm
Max height to top of rail
255
cm
Min. height to top of rail
225
cm
Min. distance from top of rail to central suspension point
49.7
cm
Weight of lifting machinery
7.5
kg
Maintenance frequency
12
måneder
Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type
EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device
Product 3 of 3
Molift Duo 3,5 meter fritstående
HMI-no.
137861
Article-no.
1600019
Registration date
21-08-2023
Last updated
21-11-2023
Properties
Ingress protection class for water
IPX4
0-9 (IPX0-IPX9) according to the standard for degrees of protection provided by enclosures (IEC 60529)
Electrical lifting mechanism
Yes
Electrical horizontal movement
No
Room covering rail system
Yes
External battery charger
Yes
Charging station at track
No
Charging liner
No
Emergency lowering function, electrically operated
Yes
Emergency lowering function, manually operated
Yes
Measures
User weight, max
300
kg
Max lifting velocity, loaded
0.05
m/s
Max length of rail
300
cm
Min. length of rail
300
cm
Max height to top of rail
255
cm
Min. height to top of rail
225
cm
Min. distance from top of rail to central suspension point
49.7
cm
Weight of lifting machinery
7.5
kg
Maintenance frequency
12
måneder
Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type
EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device
