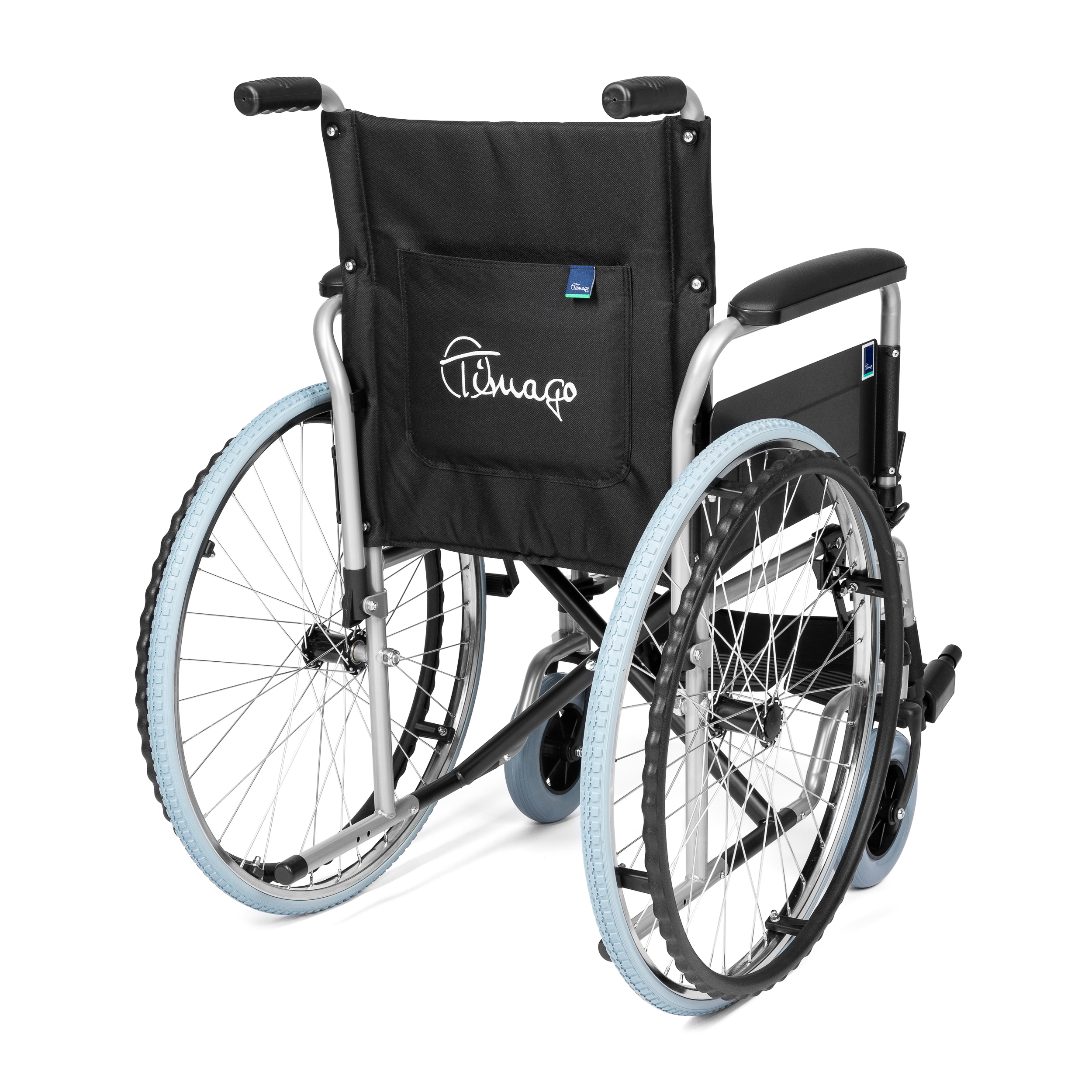

BASIC TIM leight weight wheelchari, TIMAGO, size 46



Here is a good, stable, and thoroughly tested wheelchair
The wheelchair comes with these features:
Fixed push handles for the companion
Leg rests- easily removed, tilted, and rotated
Built-in seat shock absorption
Fixed, rubber-coated, puncture-free wheels
Adjustable/foldable armrests
Soft/comfortable armrests
Parking brake

Classification
12 22 03 11 - Manual wheelchairs, sideways foldable, standard measures

Documents
User manual

Video
Play video


The product series contains 1 product.

Product 1 of 1
BASIC TIM light weight wheelchair, TIMAGO, size 46


HMI-no.
138136
Article-no.
H011-B

Registration date
07-09-2023
Last updated
07-11-2025

Properties
Adjustable seat angle
No
Balance point adjustable
No
Available with hard base
Yes
As opposed to sling seat
Back rest angle adjustable
No
Height adjustable back rest
No
Push handles
Yes
Front-wheel-driven
No
Intended for fastening in a car
No
Adjustable seat depth
No
The seat depth in this specific frame can be altered by adjustment or replacement of component(s)

Measures
User weight, max
115
kg
Seat height, min
48
cm
Seat height, max
48
cm
Back rest height, min
48
cm
Back rest height, max
80
cm
Total width
64
cm
Total length
101
cm
Weight
17.15
kg
The weight of the wheelchair incl. wheels and leg supports.
Seat width
46
cm
Seat depth, min
40
cm
Possibly by adjustment
Seat depth, max
40
cm
Longest possible for this frame. Possibly identical to seat depth, min.

Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type

EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device
