ForeSite Seating System (SS)

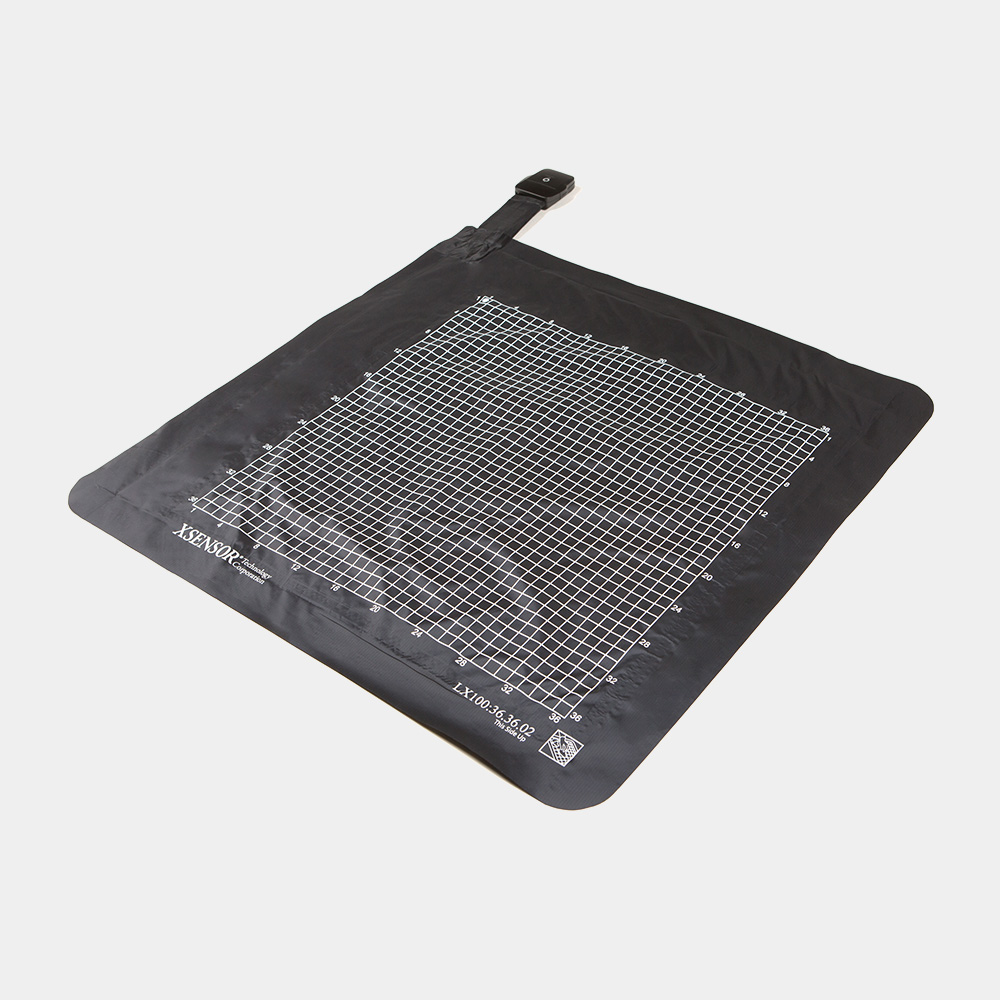

ForeSite SS is an advanced sensor-based pressure monitoring device from XSENSOR. The mat has 1,296 measurement points, measures 45.7 cm x 45.7 cm, and comes with an MDR-approved tablet for maximum data security. ForeSite SS does not need to be calibrated before use and has a long lifespan.
Classification
04 33 09 01 - Equipment for assesment of risk of pressure on the tissue
Documents
BrochureThe product series contains 1 product.
Product 1 of 1
ForeSite Seating System (SS)
HMI-no.
138259
Article-no.
840800000003
Registration date
11-09-2023
Last updated
29-11-2023
Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type
EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device
Other specifications
Accuracy: /- 5
Senzing Area: 45.7 x 45.7 cm
Number of sensors: 1296 points
Pressure Range: 0.07-2.7 N/cm2 (0.1-3.87 psi)
LX100: 36.36.02
Sampling Frame Rate: 5 frames/second
Wireless tablet: Yes, as an accessory
Display: 10.1 touchscreen
Medical Certification: ES 60601-1
Power Input: 12 VDC
Power Consumption: Battery: 7.4V / 6300 mAh Li-ion
Senzing Area: 45.7 x 45.7 cm
Number of sensors: 1296 points
Pressure Range: 0.07-2.7 N/cm2 (0.1-3.87 psi)
LX100: 36.36.02
Sampling Frame Rate: 5 frames/second
Wireless tablet: Yes, as an accessory
Display: 10.1 touchscreen
Medical Certification: ES 60601-1
Power Input: 12 VDC
Power Consumption: Battery: 7.4V / 6300 mAh Li-ion
