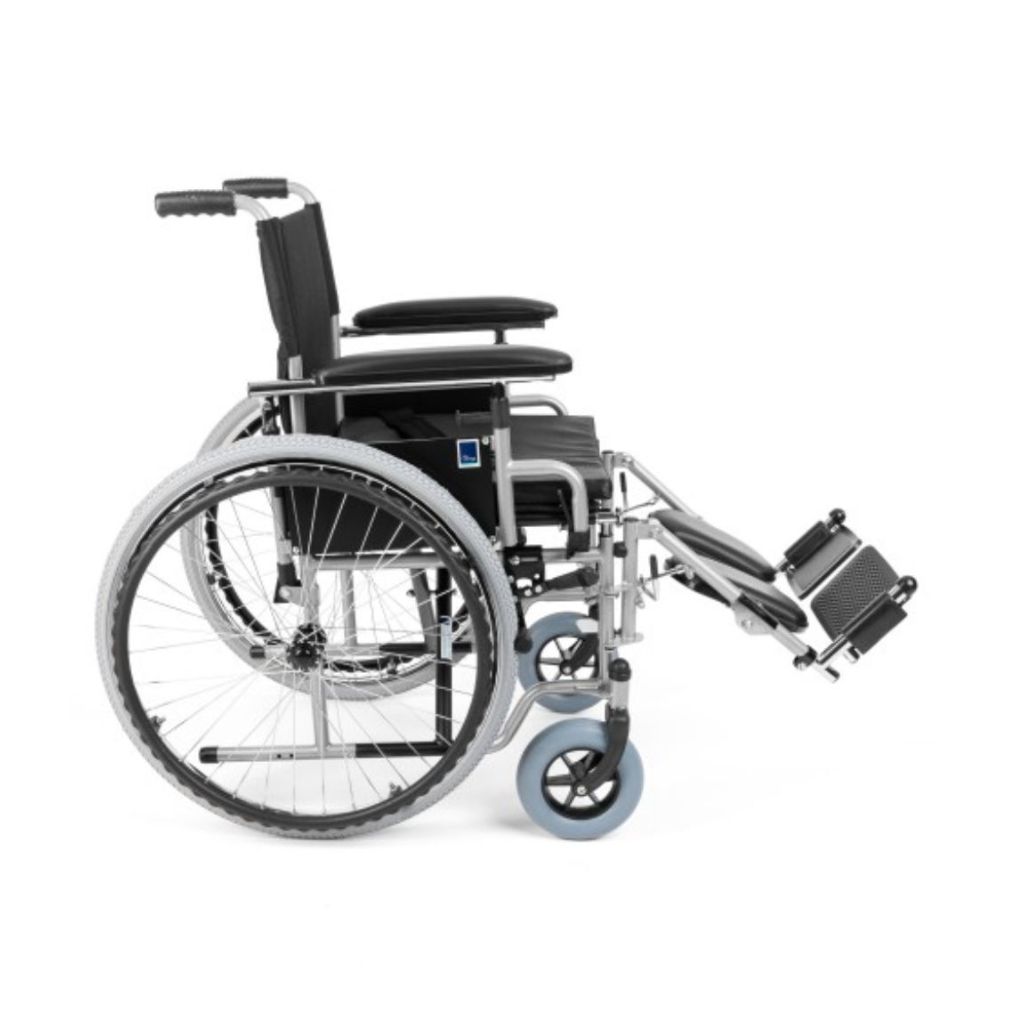

CLASSIC TIM wheelchair with adjustable leg rests



Included:

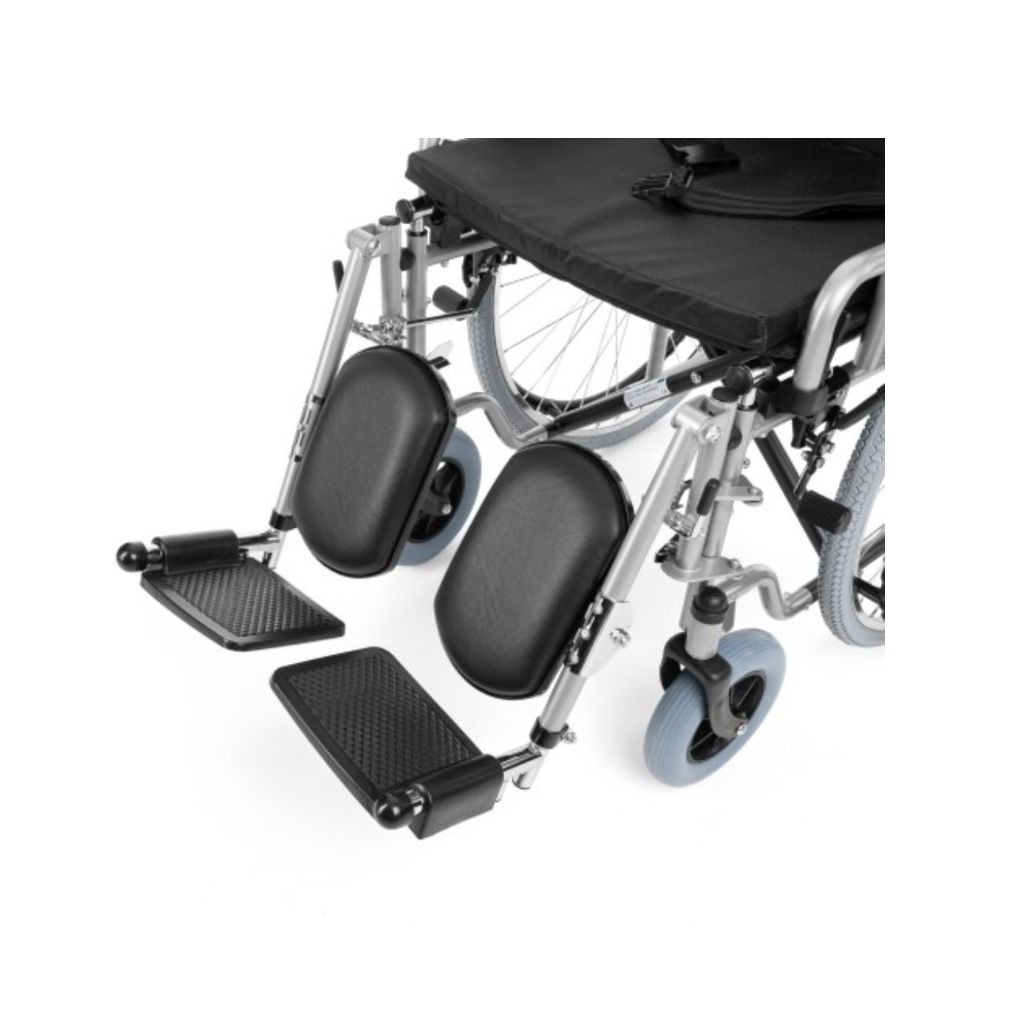

Adjustable leg/footrests for both right and left legs
Height-adjustable leg/footrests
4 cm thick wheelchair cushion
Built-in seat shock absorption
Comfortable armrests
Companion brake
Height-adjustable armrests
Quick-release drive wheels
Low-maintenance pneumatic wheels
Fixed push handles
User seatbelt

Classification
12 22 03 11 - Manual wheelchairs, sideways foldable, standard measures

Documents
User manual
QuickGuide
Service manual

Video
Play video


The product series contains 2 products.

» Summarize specifications

Product 1 of 2
CLASSIC TIM wheelchair with adjustable leg rests, seat width 46


HMI-no.
138484
Article-no.
H011 ELR

Registration date
15-09-2023
Last updated
11-09-2025

Properties
Adjustable seat angle
No
Balance point adjustable
No
Available with hard base
Yes
As opposed to sling seat
Back rest angle adjustable
No
Height adjustable back rest
No
Push handles
Yes
Front-wheel-driven
No
Intended for fastening in a car
No

Measures
User weight, max
115
kg
Seat height, min
50
cm
Seat height, max
50
cm
Back rest height, min
50
cm
Back rest height, max
85
cm
Total width
67
cm
Total length
104
cm
Weight
19.4
kg
The stated weight of the wheelchair is incl. wheels and leg supports.
Seat width
46
cm
Seat depth
40
cm

Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type

EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device

Product 2 of 2
CLASSIC TIM wheelchair with adjustable leg rests, seat width 51


HMI-no.
139410
Article-no.
H011 ELR-2

Registration date
22-12-2023
Last updated
11-09-2025

Properties
Adjustable seat angle
No
Balance point adjustable
No
Available with hard base
Yes
As opposed to sling seat
Back rest angle adjustable
No
Height adjustable back rest
No
Push handles
Yes
Front-wheel-driven
No
Intended for fastening in a car
No

Measures
User weight, max
135
kg
Seat height, min
50
cm
Seat height, max
50
cm
Back rest height, min
50
cm
Back rest height, max
85
cm
Total width
67
cm
Total length
104
cm
Weight
19.8
kg
The stated weight of the wheelchair is incl. wheels and leg supports.
Seat width
51
cm
Seat depth
40
cm

Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type

EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device
