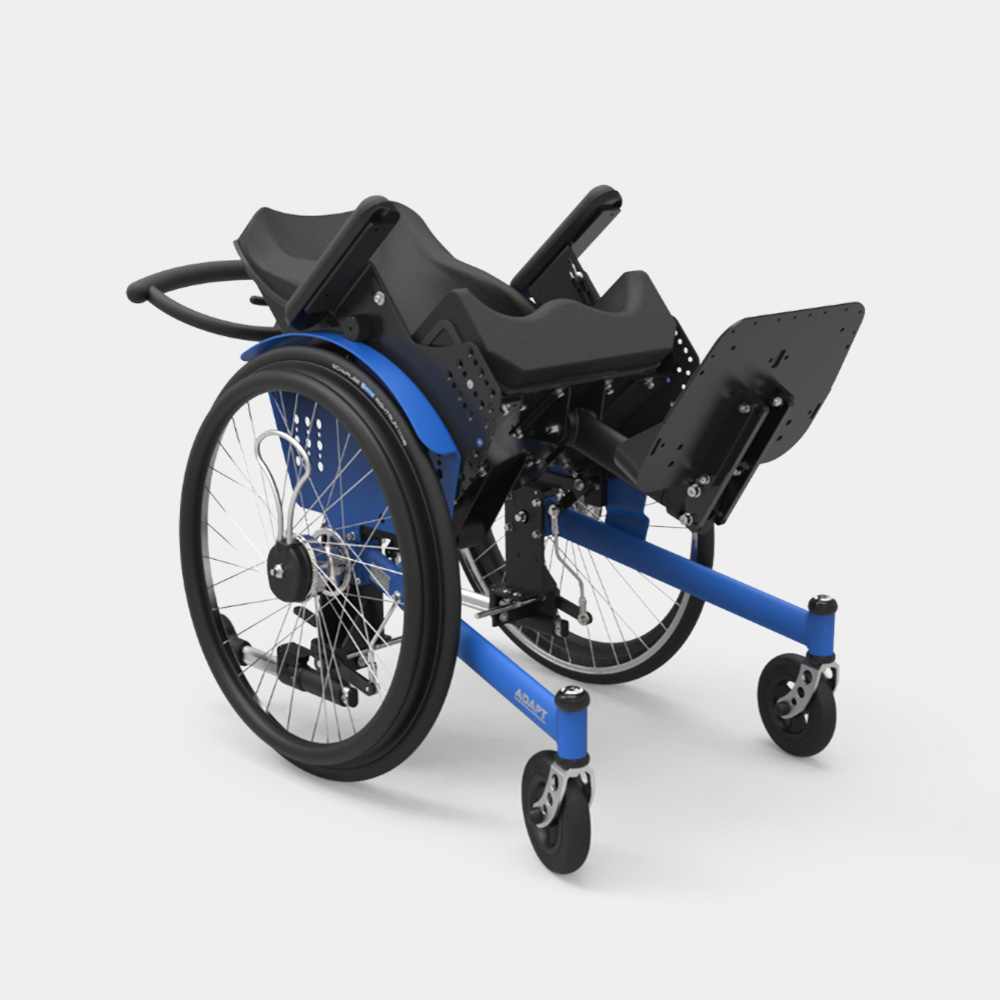

Kidevo Adapt

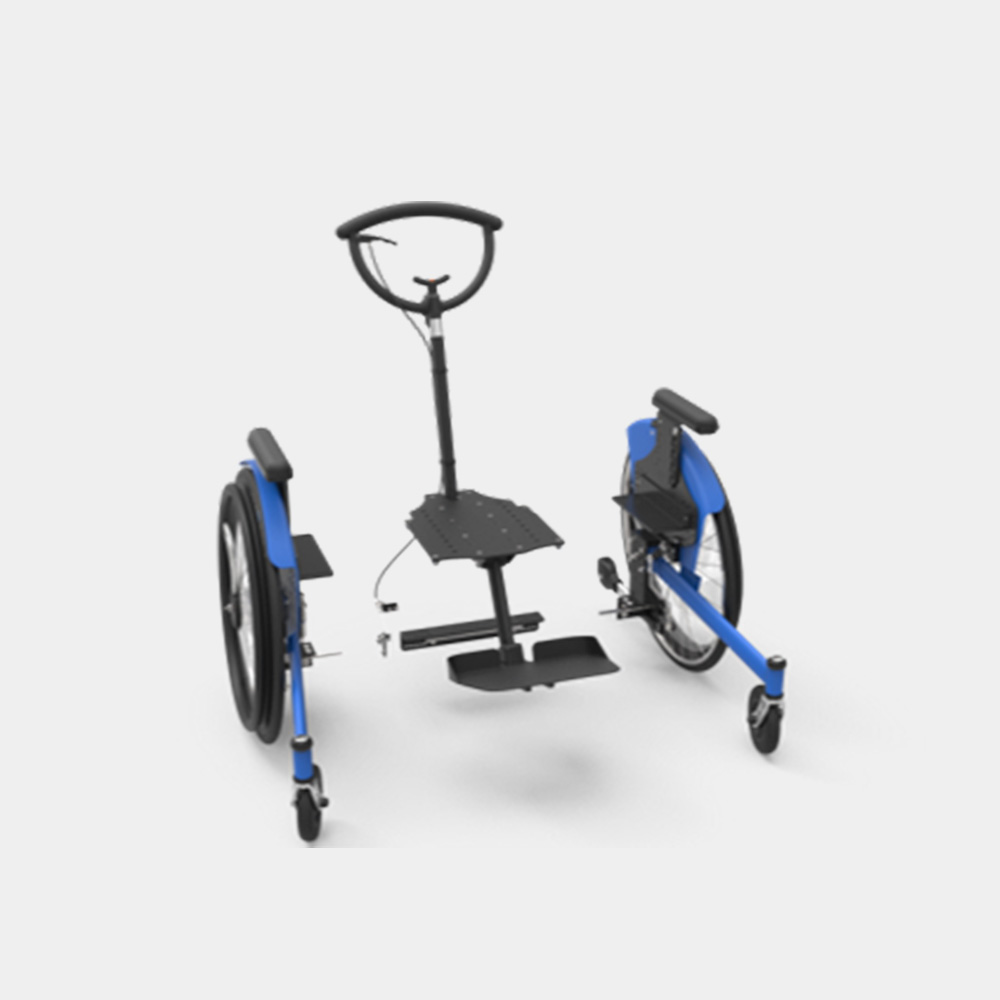

Kidevo Adapt is a tilt and swivel undercarriage that fits many different seating systems and molded seats. The chassis is available in three sizes, each of which can be increased by up to 10 cm.

Classification
12 22 18 06 - Frames for wheelchairs

Documents
Brochure


The product series contains 1 product.

Product 1 of 1
Kidevo Adapt


HMI-no.
138635
Article-no.
840000040000

Registration date
22-09-2023
Last updated
11-09-2025

Properties
Can be subsequently equipped with propulsion unit
Yes
Can be mounted on a stair climber
Yes
Intended for fastening in a car
Yes
Height adjustable
Yes
Indoor use
Yes
Outdoor use
Yes
Push handles
Yes

Measures
Total width
52
cm
The narrowest possible configuration.
Total length
72
cm
Weight
17.4
kg
The stated weight of the wheelchair is incl. wheels and leg supports.
Load, max
75
kg
Including seat, accessories, and person.
Height, min
35
cm
Measured from the floor to the top of the adapter unit in the lowest position.
Height, max
51
cm
Measured from the floor to the top of the adapter unit in the highest position.
Tilt-in-space forward
10
°
Measured from the horizontal position.
Tilt-in-space back
50
°
Measured from the horizontal position.

Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type

EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device

Other specifications
The base is available in 3 widths, each with a radius of 10 cm: 1: 30 - 40 cm 2: 40 - 50 cm 3: 50 - 60 cm. The seat depth can also be arranged in three: A: 32 cm B: 37 cm C: 42 cm
